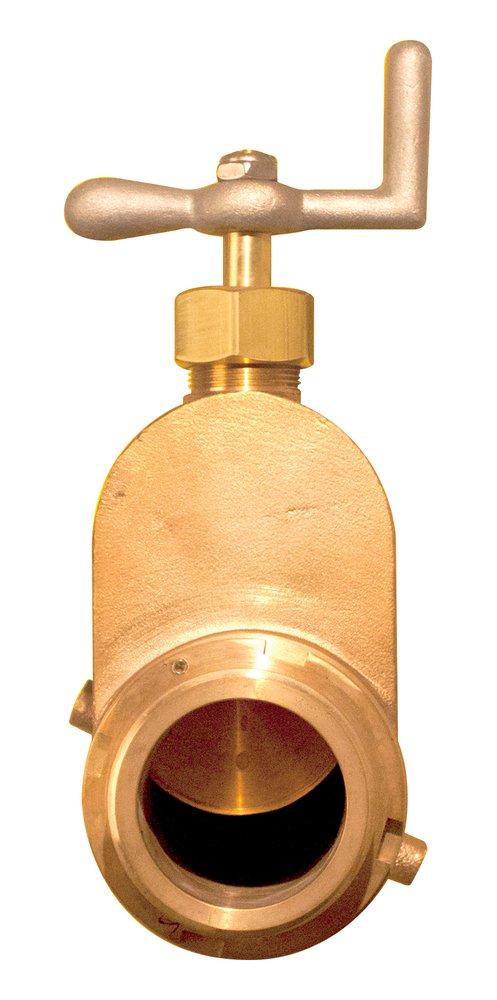

Dixon Valve & Coupling HGV250F Single Hydrant Gate Valve With Speed Handle 175 PSI 2-1/2 Inch

Product Description

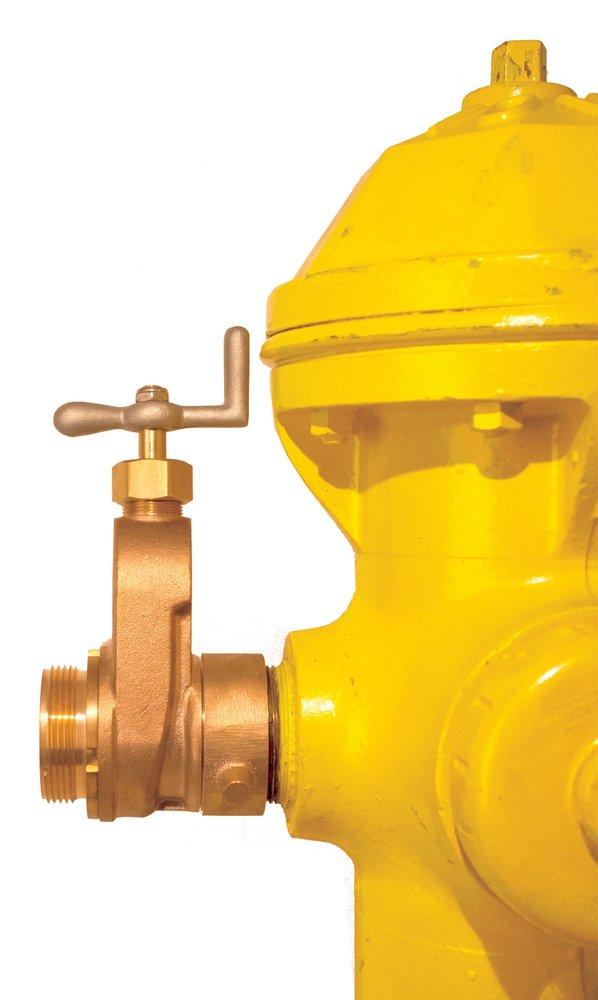

The Dixon Valve & Coupling HGV250F is a single hydrant gate valve designed to throttle the flow from a fire hydrant without causing damage. It features a cast brass body, a rubber seal, and a speed handle. This valve is intended for use on standpipes, fire pumps, and hydrants, and is suitable for water-only applications. It has a maximum operating pressure of 175 PSI and 2-1/2 inch NST (NH) female inlet and male outlet connections.

• Designed to throttle flow from fire hydrants without causing damage.
• Constructed from cast brass with a rubber seal and speed handle.
• Suitable for use on hydrants, standpipes, and fire pumps for water-only applications.

Product Highlights

Dixon Valve & Coupling HGV250F is a cast brass hydrant gate valve with a speed handle, featuring 2-1/2 inch NST connections and a 175 PSI maximum pressure, ideal for fire hydrant flow control.

Product Information

Standard Information

• Brand: DIXON VALVE & COUPLING
• Manufacturer Part Number: HGV250F
• Country of Origin: USA

Technical Specifications

• Manufacturer Part Number: HGV250F
• Brand: Dixon Valve & Coupling
• Product Type: Gate Valve
• Material: Cast Brass
• Maximum Operating Pressure: 175 PSI
• Inlet Connection: 2 1/2 in NST (NH) Female
• Outlet Connection: 2 1/2 in NST (NH) Male
• Connection Type: Female/Male
• Number of Outlets: 1
• Size: 2.5 Inch
• Thread Type: National Standard Thread (NST)
• Number of Pieces: 1
• Unit Count: 1.0 Count
• Specification Met: NST
