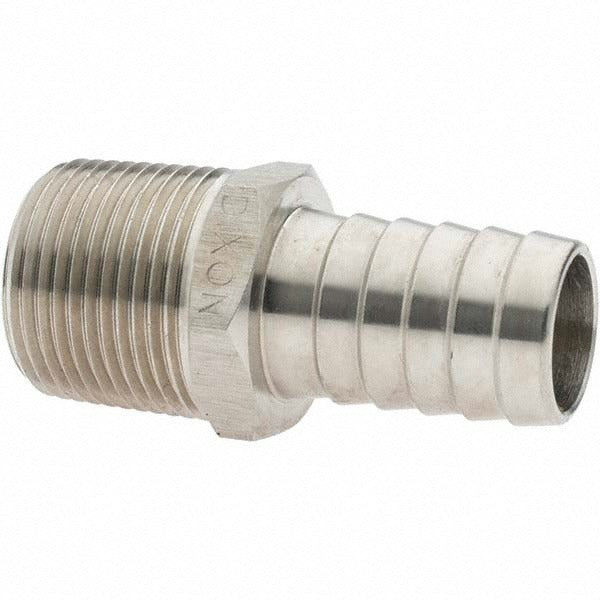

Dixon Valve Coupling BD-DV-00327 Barbed Hose Insert 3/4 Inch

Product Description

The DIXON VALVE COUPLING BD-DV-00327 is a stainless steel barbed hose insert fitting designed to create secure, leak-resistant connections between flexible hose and threaded pipe systems. The fitting features a male NPT threaded end on one side and a barbed insert end sized for 3/4 inch inside diameter hose on the other. Constructed from stainless steel, it resists corrosion in wet, chemical, or outdoor service environments. Plumbers, pipefitters, and industrial maintenance technicians install this type of fitting where a hose line must transition to a rigid threaded pipe connection. The package includes 2 fittings per unit.

This fitting is suited for use in plumbing, irrigation, industrial fluid transfer, and general-purpose hose assembly applications. The 3/4 inch NPT male thread connects to standard female NPT ports on valves, manifolds, pumps, or pipe fittings. The barbed end accepts 3/4 inch ID flexible hose, typically secured with a clamp for a pressure-rated seal. It is appropriate for both residential and light commercial installations where a durable, corrosion-resistant hose-to-pipe transition is required.

Key Features

• Stainless steel construction resists corrosion in wet and chemical service environments
• 3/4 inch male NPT thread connects to standard female NPT ports
• Barbed insert end sized for 3/4 inch inside diameter flexible hose
• Barb-over-NPT configuration allows quick hose assembly and secure clamp retention
• Sold in a package of 2 fittings per SKU

Compatibility

Designed as a standard barbed hose insert for use with 3/4 inch inside diameter flexible hose and 3/4 inch female NPT threaded ports in plumbing, irrigation, and industrial fluid transfer assemblies.

Installation Notes

Installation is typically performed by a licensed plumber or qualified pipefitter. Shut off fluid flow and relieve line pressure before disassembling any hose or fitting connection. Apply thread sealant tape or compound to the male NPT threads before threading into the female port by hand, then tighten with a wrench. Secure the hose over the barbed end with an appropriately rated hose clamp to maintain a leak-free seal. Follow applicable IPC and local plumbing codes for the specific service application.
