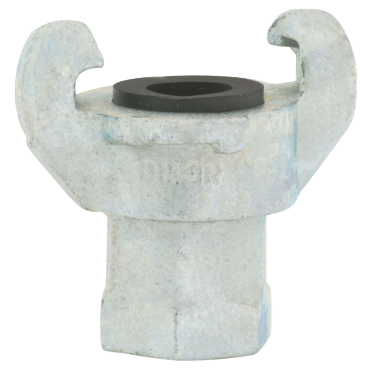

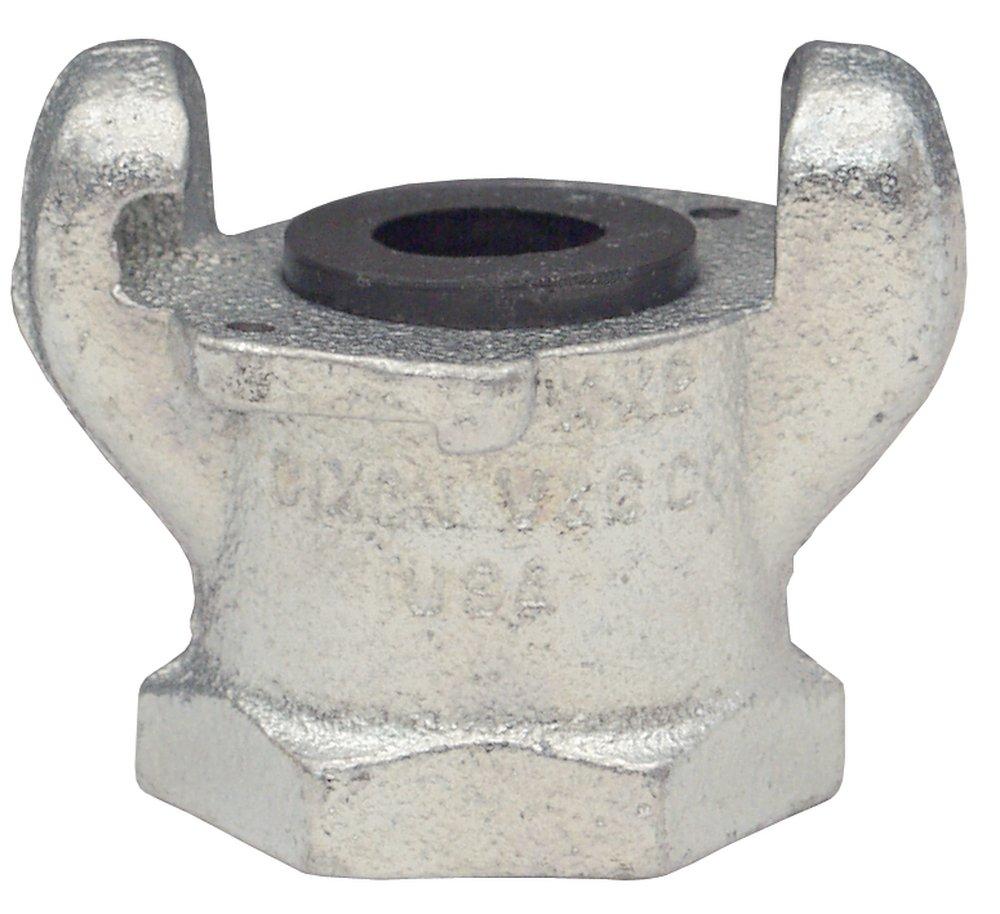

Dixon Valve & Coupling AMC1 Air King Universal Coupling - Size 1/4

Product Description

The Dixon Valve & Coupling AMC1 is an air king universal coupling designed for reliable connections in various applications. This coupling features a female NPT end crafted from malleable iron, ensuring a strong and durable connection. To enhance performance, the AMC1 coupling includes a safety clip and a rubber washer, part AWR4, for effective sealing.

• Female NPT End
• Malleable Iron Construction
• Includes Safety Clip and AWR4 Washer

Product Highlights

The AMC1 coupling is ideal for connecting hoses in air and water services. Its robust design can withstand maximum working pressures of up to 150 psi. With a temperature range of up to 70 °F, it is suitable for various environments.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: AMC1

Technical Specifications

• Material: Malleable Iron
• Size: 1/4 in
• Working Pressure [Max]: 150 psi
• Ambient Temperature Range [Max]: 70 °F
• Component: Female NPT End
• Weight: 0.58 LB
