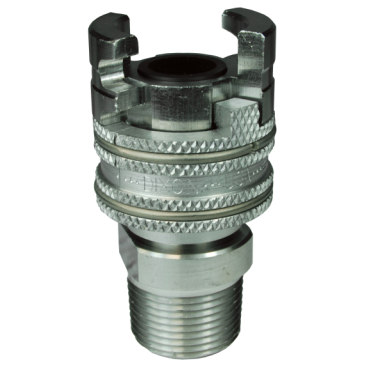

Dixon Valve & Coupling 4PM4 Dual Lock Quick-Acting Coupling

Product Description

The Dixon Valve & Coupling 4PM4 is a dual lock quick-acting coupling designed for reliable connections in air fittings. It features spring-loaded interlocking engagement, ensuring a secure fit under pressure. This coupler is suitable for various applications, allowing for full line pressure to the tool and providing quick connections and disconnections.

• Interchanges with National A type, Perfecting P type, and Thor PHC series couplings
• Optional locking key prevents sleeve retraction
• Constructed from trivalent chrome plated steel

Product Highlights

The product is designed to withstand high operating pressures, making it ideal for various pneumatic setups.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 101381963

Technical Specifications

• Operating Pressure [Max]: 300 PSI, 20 bar
• Connection Type: Male Pipe Thread with Locking Sleeve
• Body Size: 1/2 in
• Male Thread: 1/2 in NPT
• Body Material: Trivalent Chrome Plated Steel
• Material: Steel
• Series: DQC P-Series
• Component: Coupler
• Pressure Rating: 300 psi
• Weight: 0.51 LB
