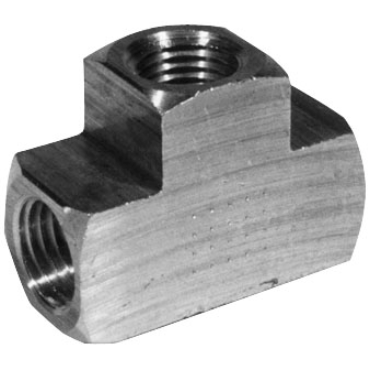

Dixon Valve & Coupling 322-0606 Brass Fitting

Product Description

The Dixon Valve & Coupling Brass Fitting with MPN 322-0606 is designed for various plumbing applications. This tee fitting is suitable for 3/8 inch female pipe thread connections and works with different materials including aluminum, copper, steel, and iron.

• Constructed from CA360 brass
• 3/8 NPT(f) female connection
• Maximum working pressure of 300 psi

Product Highlights

Ideal for multiple applications such as pneumatic systems, instrumentation, water, oil, and gases.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 101844570

Technical Specifications

• SAE Reference No.: 130438
• Fitting Type: Tee
• No. of Ends: 3
• End Size: 3/8 NPT(f)
• Temperature Range [Max]: 200 °F
• Female Pipe Size: 3/8 in
• Material: CA360 Brass
• Working Pressure [Max]: 300 psi
• Fitting Angle: 90°
• Temperature Range [Min]: -60 °F
• Square C: 13/16 in
• Actual Fitting Type: Female Tee
• I.D.: 0.562 in
• End Types: NPT
• Overall Length: 1.68 in
• Weight: 0.2 LB
