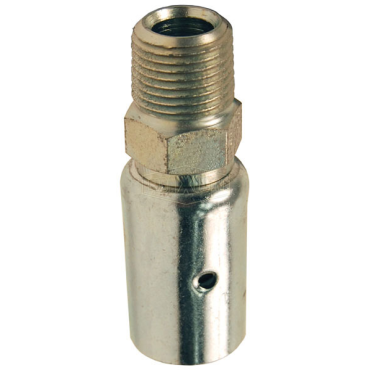

Dixon Valve & Coupling 12P1 External Swage Uni-Range Male Coupling

Product Description

Dixon Valve & Coupling 12P1 is an External Swage Uni-Range Male Coupling designed for various hose connections. This coupling works best with one or two wire braid reinforced hoses and is suitable for applications involving chemical, high-pressure air, water, and LP gas hoses.

• 3/4 inch pipe size
• Made from plated carbon steel
• No bolts required for assembly

Product Highlights

This coupling comes fully assembled and ready for use. The clean design ensures there are no protrusions, providing increased safety and efficiency in your plumbing tasks.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part #: 101894327

Technical Specifications

• Material: Plated carbon steel
• Hex size: 1 1/8 inches
• Hose O.D. range: 1 5/32 inches to 1 7/32 inches
• Hose cut-off factor: 1 15/16 inches
• Fitting description: Female hose x male pipe
• Thread size: 3/4 inch (NPT)
• Hose I.D.: 3/4 inch
• Overall length: 3.5 inches
• Weight: 0.474 lb
