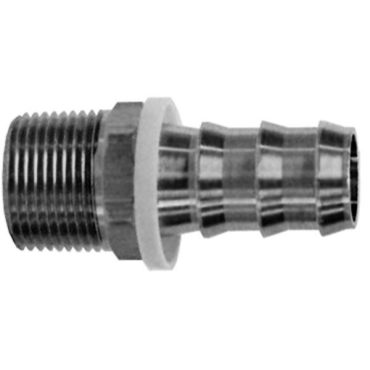

Dixon Valve & Coupling 1240808K Brass Barbed Hose Fitting Power 1/2

Product Description

The Dixon Valve & Coupling 1240808K is a brass barbed hose fitting designed for reliable connections between pipe threads and rubber or plastic hoses. This fitting simplifies the assembly of hoses in various applications.

• Corrosion-resistant brass construction
• Suitable for medium pressure applications
• Hose must be securely clamped or crimped onto the fitting

Product Highlights

This fitting is ideal for use in plumbing and HVAC systems where secure hose connections are necessary.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 112227544

Technical Specifications

• Female Thread Size: 1/2 in
• Hose Size: 1/2 in
• Connection Type: Barb
• Operating Temperature [Min]: -40 °F
• Material: Brass
• Fitting Description: Female Ball End Swivel
• Hex Size: 15/16 in
• Thread Size: 1/2
• Pressure @ Temp.: 250 psi @ 72 °F
• Operating Temperature [Max]: 160 °F
• Shape: Straight
• Thread Type: NPSM
• Body Material: Brass
• End Type: Hose Barb x Female
• Pipe Thread: NPSM
• Female Thread: NPSM
• Weight: 0.24 LB
