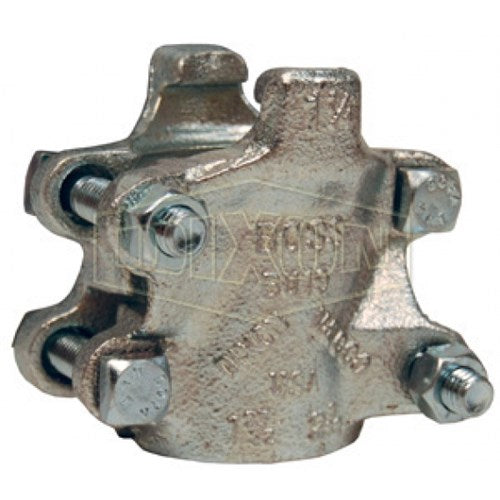

Dixon Valve BU14 Boss Clamp 4 Bolt Type 2 Gripping Fingers

Product Description

The Dixon Valve BU14 is a 4-bolt clamp equipped with two gripping fingers for secure attachment. It features two clamp sections and is suitable for steam service, rated up to four hundred fifty degrees Fahrenheit. Standard bolts are not used for these clamps, and replacement nuts and bolts are available.

• 4-bolt type clamp with 2 gripping fingers and 2 clamp sections
• Recommended for steam service up to 450 degrees Fahrenheit
• Replacement nuts and bolts available

Product Highlights

This clamp is designed for single use and should be discarded after removal. It is important to tighten bolts to the specified torque values for optimal performance.

Product Information

Standard Information

• Material: Zinc Plated Iron
• Torque: 21 ft. lbs.

Technical Specifications

• Hose ID: 1 inch
• Hose OD To: 1-46/64 inches
• Hose OD From: 1-34/64 inches
• Recommended for: steam service up to 450 degrees Fahrenheit
• Bolt Size: 9/16 inch Hex
• Finish: Zinc Plated
• Length: 2-7/8 inches
• Series: Boss
• Torque Rating: 21 ft-lb
• Width: 3-1/8 inches
• Inside Diameter: 1 inch
• Outside Diameter: 1-34/64 to 1-46/64 inches
• Band Material: Iron
• Domestic/Import: Domestic
