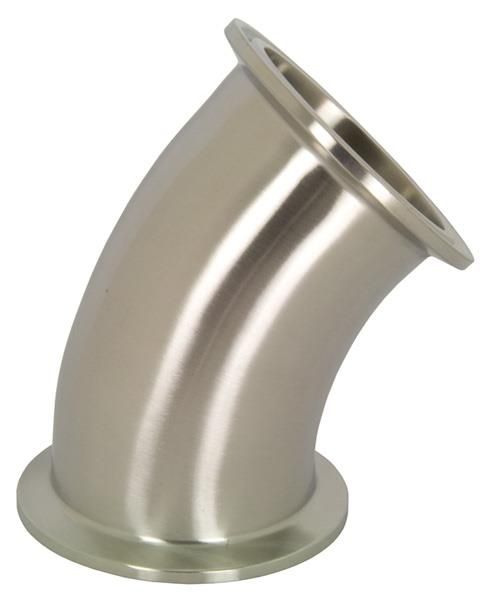

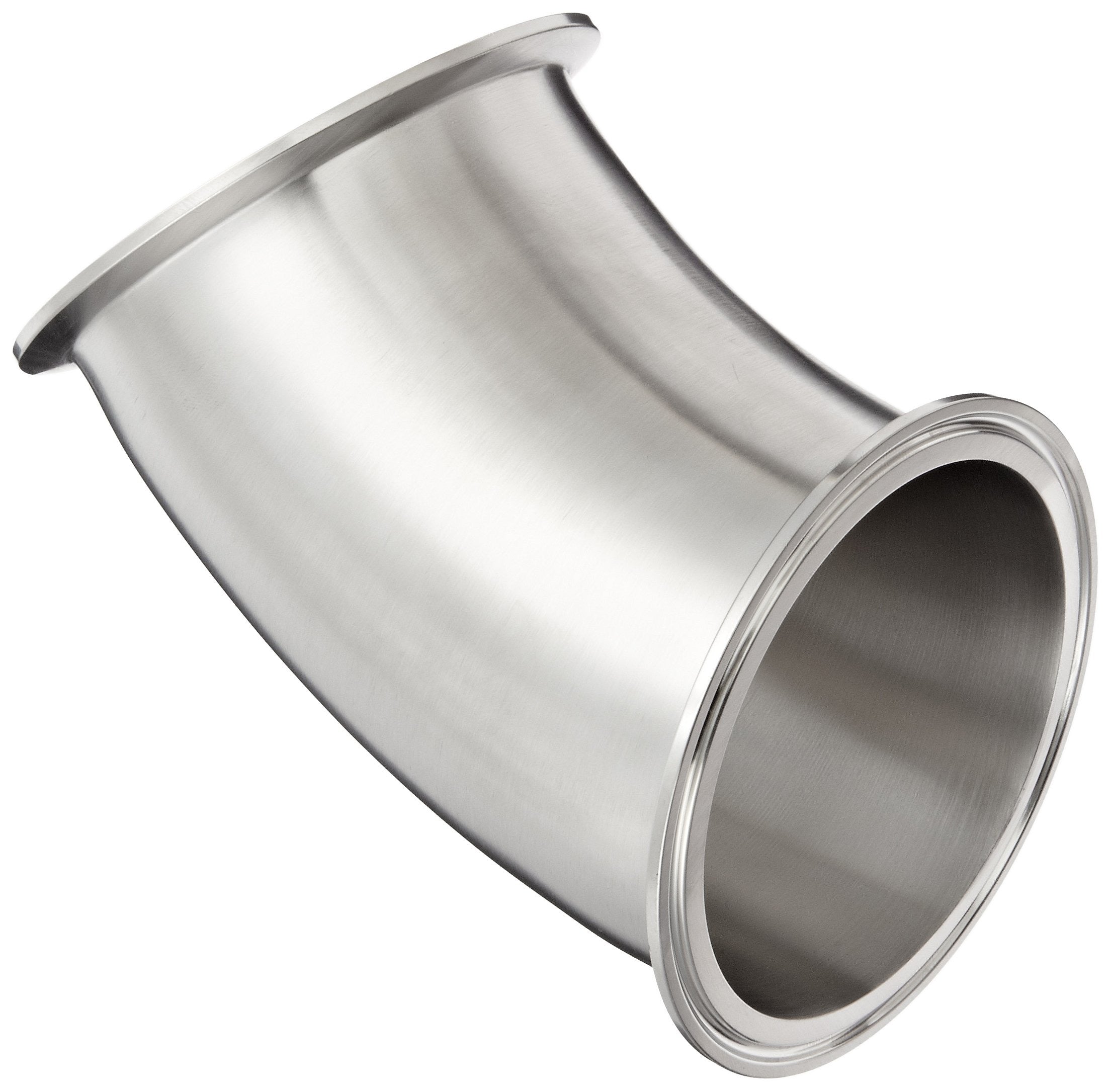

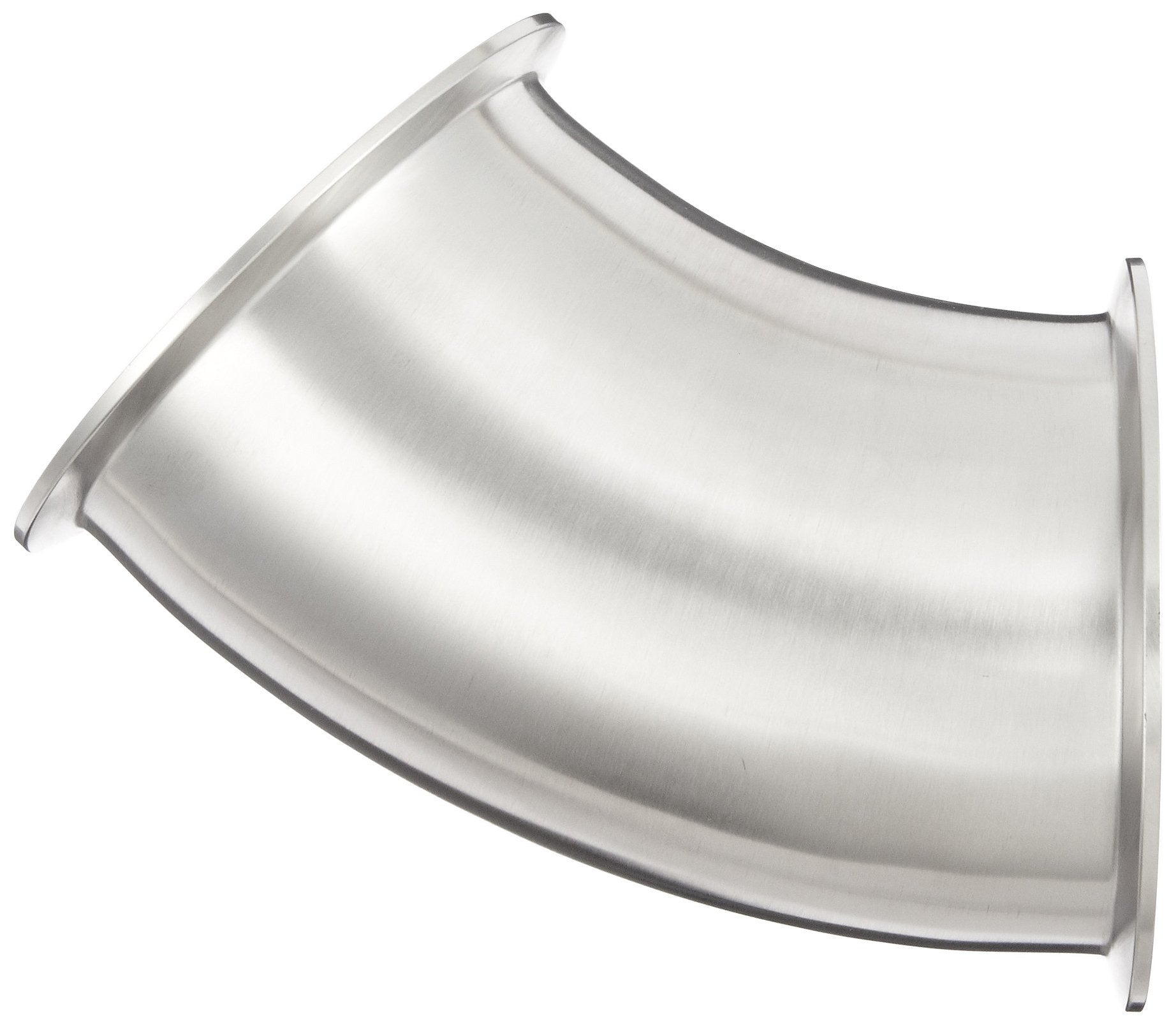

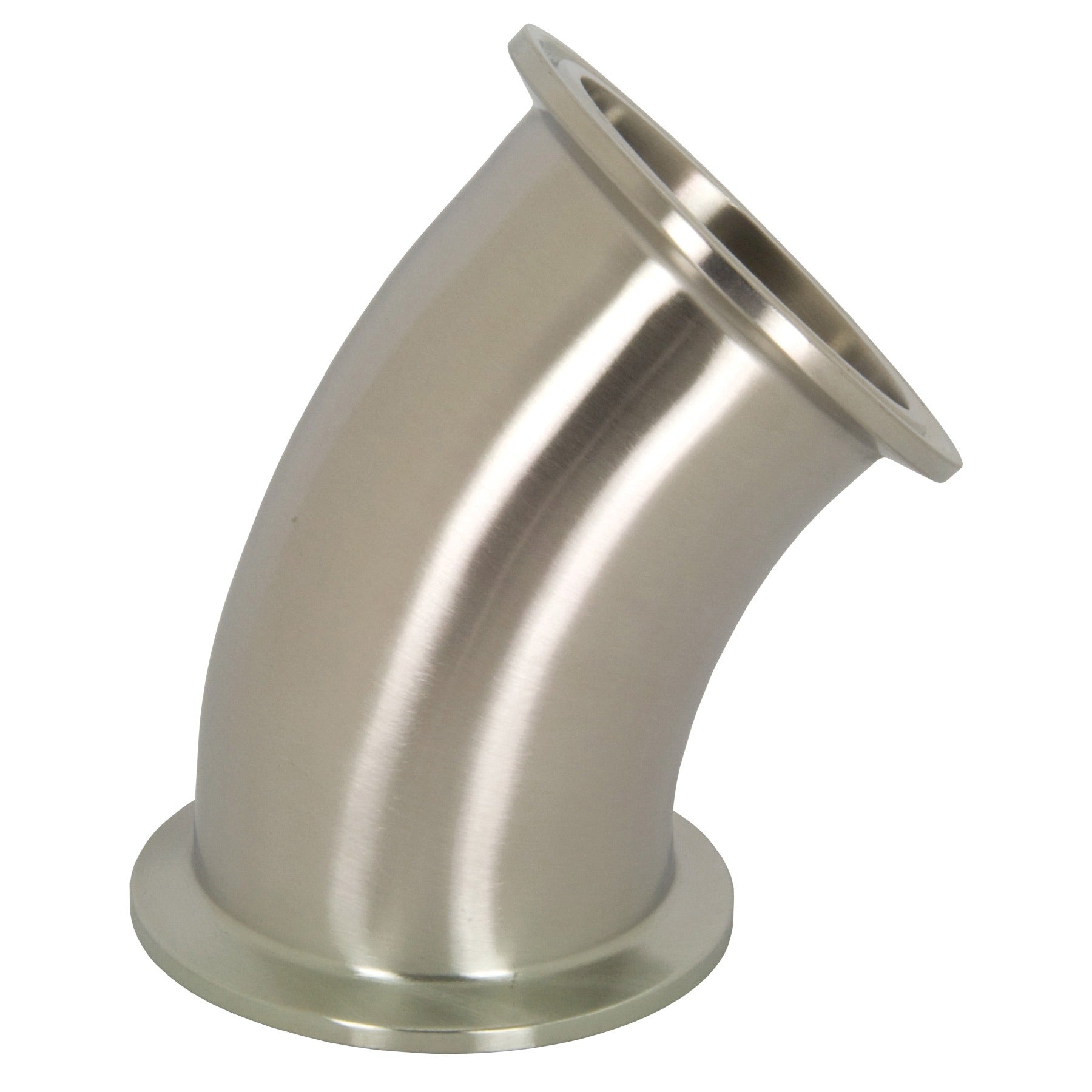

Dixon Valve and Coupling B2KMP-G400 Clamp Elbow (4 in / 45 degree)

Product Description

Dixon Valve and Coupling B2KMP-G400 is a 45 degree clamp elbow made from 304 stainless steel for 4 in tube outside diameter sanitary connections. The fitting clamps onto tubing at both ends to change flow direction while providing a non-permanent, take-down accessible seal. It is rated to a maximum operating pressure of 250 psi at 70 F and is manufactured to 3-A Sanitary Standards Number 63-03 (authorization 621), suitable for food, beverage, and dairy applications.

• 45 degree clamp elbow designed for 4 in tube outside diameter
• 304 stainless steel construction for sanitary and high-temperature resistance
• Maximum operating pressure 250 psi at 70 F; meets 3-A Sanitary Standards No. 63-03 (authorization 621)

Product Highlights

45 degree clamp elbow for 4 in tube OD; 304 stainless steel; 250 psi at 70 F; meets 3-A Sanitary Standard 63-03

Product Information

Standard Information

• Brand: DIXON VALVE & COUPLING
• Manufacturer Part Number: B2KMP-G400
• Country of Origin: Domestic
