Dixon Valve 4PF6 Double Lock Coupling X 3/4f Npt Pack of 9 Pcs

Product Description

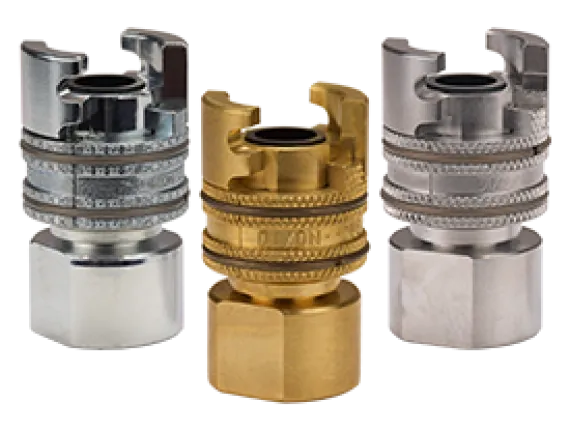

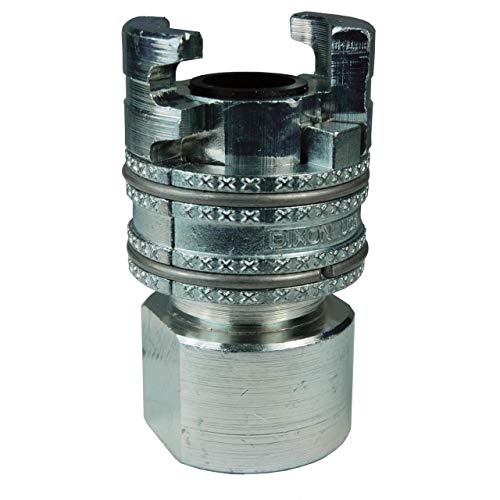

The DIXON VALVE 4PF6 is a Dual-Lock P-Series Thor Interchange Female Thread Coupler designed for pneumatic circuits. It features Thor Finger-Lock Interchange compatibility, allowing interchangeability with National A type, Campbell Double-Lock, and Thor PHC series couplings. Constructed from machined solid bar stock with Nitrile seals, it includes a stainless steel retaining ring and spring for corrosion resistance. The steel components are plated with ROHS Compliant Trivalent Chrome, and it has a Zinc Cast sleeve. It operates up to 300 PSI (20 bar) and has a 3/4" NPTF thread.

• Thor Finger-Lock Interchange compatibility with National A type, Campbell Double-Lock, and Thor PHC series couplings.
• Constructed from machined solid bar stock with standard Nitrile (Nitrile Rubber) seals.
• Steel componentry plated with ROHS Compliant Trivalent Chrome and features a Zinc Cast sleeve.

Product Highlights

Durable steel female coupler with Thor Finger-Lock Interchange, suitable for pneumatic applications up to 300 PSI.

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: 4PF6
• Country of Origin: US

Technical Specifications

• Brand: DIXON VALVE
• MPN: 4PF6
• Manufacturer: Dixon Valve
• Package Quantity: 9
• Maximum Operating Pressure: 300 PSI (20 bar)
• Weight: 0.655 lb
• Material: Steel
• Wrench Flat Size: 1-1/4"
• Maximum Outer Diameter: 1.55" (39.4 mm)
• Body Size: 1/2"
• Operating Temperature Range: -40°F to 250°F (-40°C to 121°C)
• Burst Pressure: 2600 PSI (180 bar)
• Thread Size: 3/4"
• Length: 2.75" (69.9 mm)
• Pipe Thread Type: NPT / NPTF
