Dixon HS36 Worm Gear Clamp 1/2 inches Band (Pack of 170 pcs)

Product Description

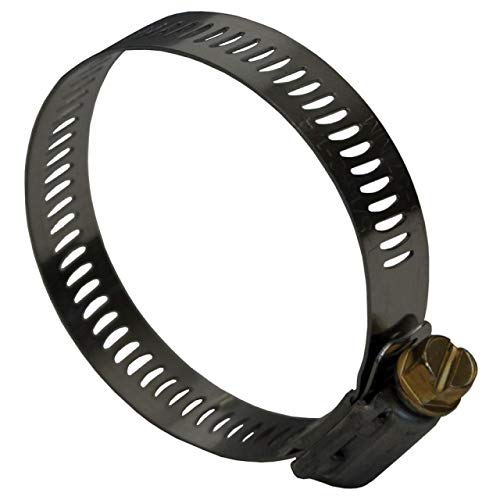

The DIXON HS36 worm gear clamp features a 1/2" band and fits hose OD 1-52/64" to 2-48/64". It meets SAEJ1508 standards, superseding Mil Spec WW-C-440B. Its four-piece construction includes a 5/16" slotted hex head screw design with a SAE 201/301 Series Stainless Steel band and housing, and a SAE 1018 case-hardened, hex-free Chrome Zinc-Plated Steel screw.

• Four-piece construction
• 5/16" slotted hex head screw design
• SAE 201/301 Series Stainless Steel band and housing
• SAE 1018 case-hardened, hex-free chrome zinc-plated steel screw

Product Highlights

The DIXON HS36 worm gear clamp is constructed with stainless steel and zinc-plated steel, and meets SAEJ1508 standards.

Product Information

Standard Information

• Brand: DIXON
• Manufacturer Part Number: HS36
• Country of Origin: US

Technical Specifications

• Construction: Four-piece construction
• Screw design: 5/16" slotted hex head
• Band and housing: SAE 201/301 Series Stainless Steel
• Screw: SAE 1018 case-hardened, hex-free Chrome Zinc-Plated Steel
• Meets: SAEJ1508 which supersedes Mil Spec WW-C-440B
• Material: SAE 201/301 Stainless Steel
• Component Material: Zinc-Plated Steel screw
• Style: Style HS
• Width: 1/2"
• Torque: 50 in. lbs.
• Hose OD To: 2-48/64" (70 mm)
• Hose OD From: 1-52/64" (46 mm)
• Brand: DIXON VALVE & COUPLING COMPANY, LLC
• MPN: HS36
• Series: Dixon®
• Product: Worm Gear Clamps
• Hose ID To: 2-48/64"
