DIVERSITECH WAG-WS-1 Flood Detector

Product Description

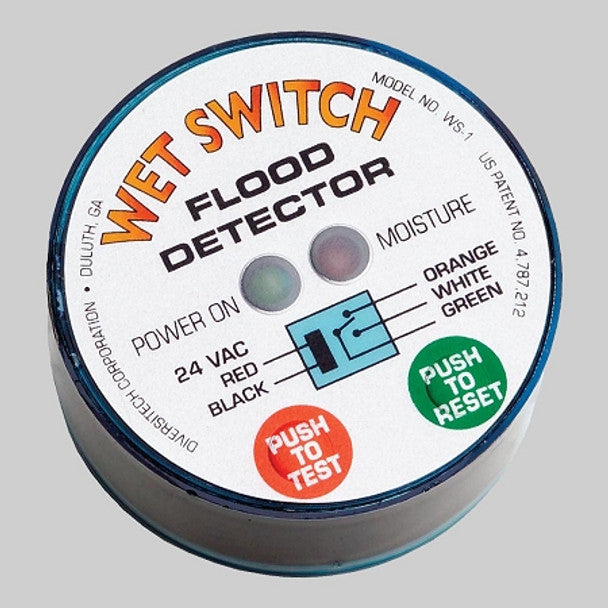

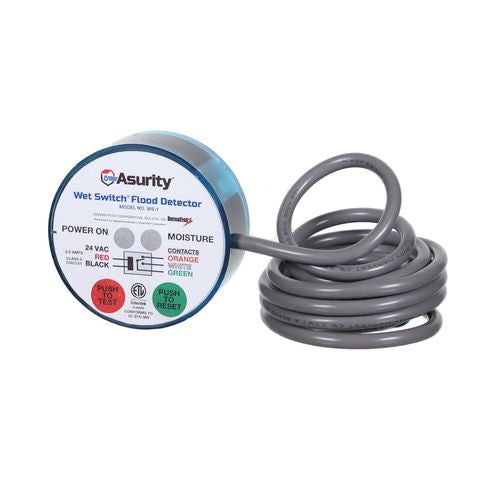

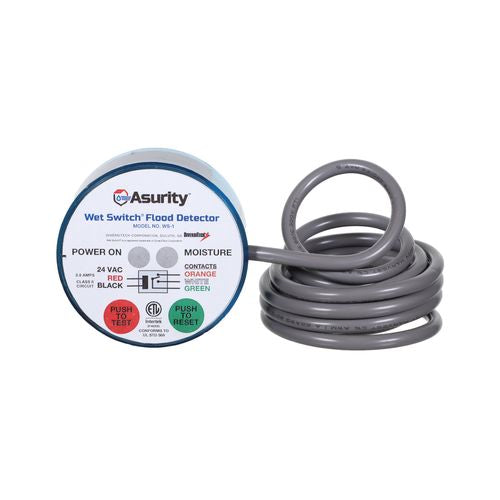

The DIVERSITECH WAG-WS-1 flood detector is essential for flood prevention in ducted HVAC systems. This unit has a stainless steel sensor array that can detect as little as one to two drops of water. When water is detected, the flood detector can turn off the associated system and alert users with LED indicators.

• Detects minimal water accumulation with stainless steel sensors.
• Provides visual system status confirmation via LED indicators.
• Offers expandable coverage through multiple unit connectivity.

Product Highlights

This device includes a push-to-test and push-to-reset function, making it user-friendly. The electrical connection operates on a standard twenty-four VAC control with a two amp contact rating. Its design allows for easy installation with a five-wire configuration, making it suitable for connecting to various equipment including secondary drain pans.

Product Information

Standard Information

• Product Type: Overflow Switch
• Application: Flood Prevention

Technical Specifications

• Electrical Classification: Class 2
• Electrical Connection Type: Independently Powered
• Test Switch / Button: Yes
• Switch Type: SPDT
• Contact Rating: 2 amp
• Power: 24 VAC
• Rated Current (A): 5
• Rated Voltage: 250V
