Diversitech U4558-3 UltraLite Pad 45x58x3

Product Description

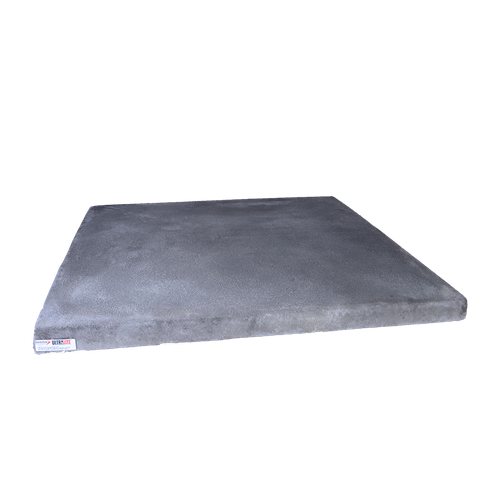

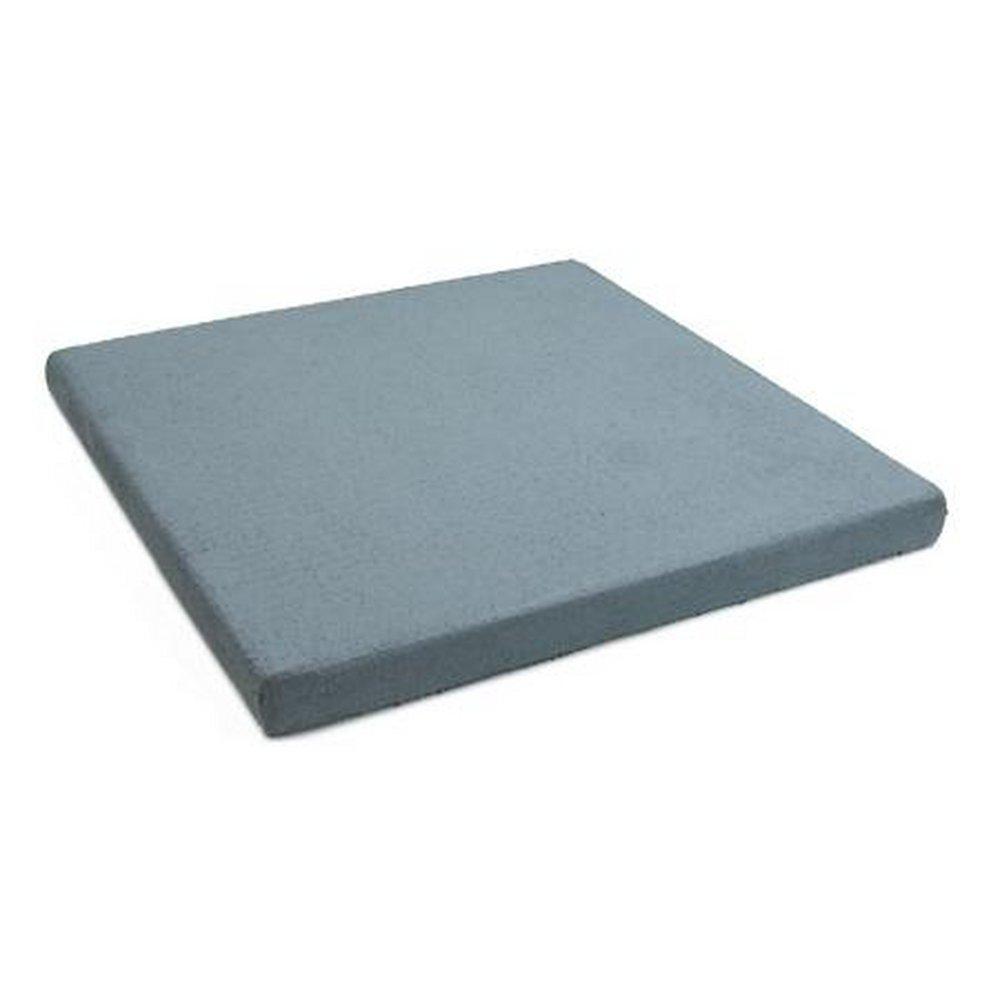

The DiversiTech U4558-3 is a lightweight concrete composite equipment pad designed to support HVAC condensers, heat pumps, and other outdoor equipment. It is strengthened by miles of fiber in each square foot of fiber-cement coating, providing excellent resistance to cracking or breaking. The solid bottom provides excellent resistance to settling.

• Lightweight concrete pad, about 2.5 lbs. per square foot
• Concrete outer skin and EPS foam core provide flexibility and vibration dampening
• Flat bottom design provides excellent resistance to sinking and settling

Product Highlights

The UltraLite pad is freeze/thaw, UV, chemical & flame-resistant for long-term life outdoors. It is tested per ASTM D2299 with refrigerants, synthetic canine urine, compressor oil or salt solution.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: U4558-3

Technical Specifications

• Manufacturer: DiversiTech
• Manufacturer #: U4558-3
• Parts Town #: DIVU4558-3
• Units: Each
• Fits Models: View Models List
• Application: Condensers_Heat Pump
• Drillable: No
• Load Capacity: 776 lb.
• Material: Ultra-Lightweight Concrete Composite
• Nestable: No
• Rating: UV Resistant
• Shape: Rectangular
• Texture: Rough
• Product Length: 45 in.
• Product Width: 58 in.
• Ducted or Ductless: Ducted
• Product Height: 3 in.
• Primary Depth (inches): 58
• Primary Width (inches): 45
• Primary Height (inches): 3
• Allowable Load: 783 lbs
• Collection: UltraLite
• Color Finish Category: Greys
• Color Finish Name: Grey
• Height: 3
• Length: 45
• Material Type: Polystyrene
• Size: 45 in x 58 in x 3 in
• Thickness: 3 in
• UPC: 095247409945
• Width: 58
• Part No.: U4558-3
• Category: HVAC Accessory & Rebuild Kit & Seal Kit
