Product Description

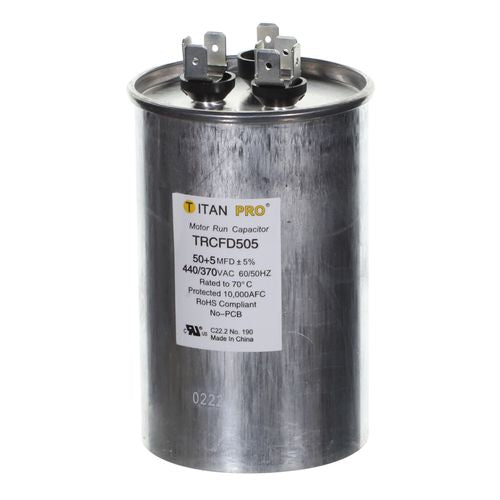

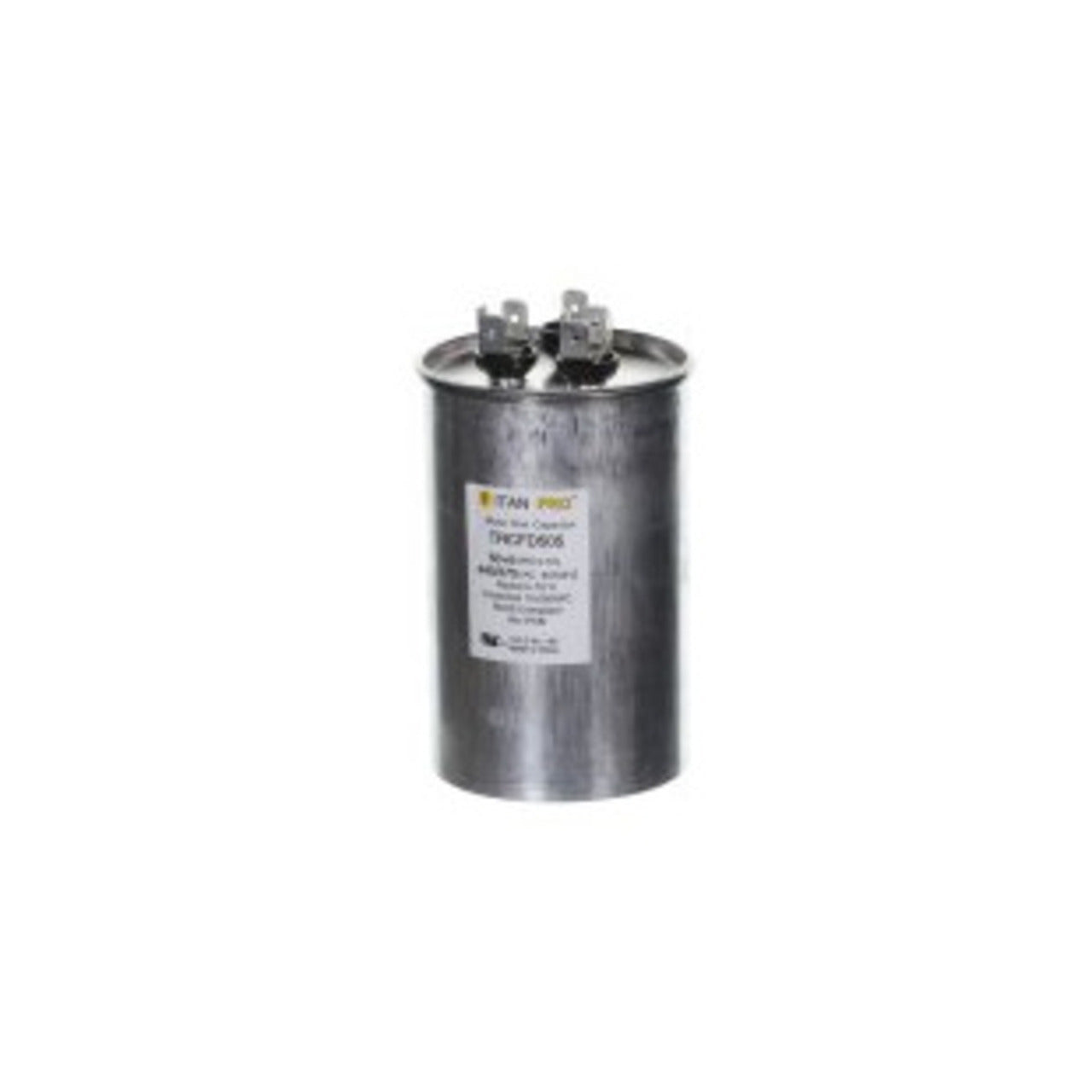

The DIVERSITECH trcfd505 is a professional-grade dual run capacitor rated at 50+5 microfarads (MFD) and 440/370 volts, designed for motor run applications in HVAC systems. It supplies the continuous capacitance needed to keep compressor and fan motors running efficiently under load. The round form factor measures 2.50 inches in diameter by 3.94 inches in length and weighs 0.75 pounds, making it a compact, direct-fit replacement in most residential and light commercial equipment. Licensed HVAC technicians install this part during system tune-ups, compressor replacements, or any service call where capacitor failure is confirmed.
The trcfd505 is rated for both 50 Hz and 60 Hz operation and is compatible with ducted and ductless system configurations. The dual rating of 440/370 volts gives it flexibility across a wide range of equipment voltages commonly found in the field. Its 50 MFD side supports the compressor motor while the 5 MFD side supports the condenser fan motor, both in a single round capacitor housing. This makes it a practical all-in-one replacement for split systems, package units, and mini-split condensers that use a dual capacitor arrangement.
Key Features
- Dual capacitance rating: 50 MFD (compressor) and 5 MFD (fan motor) in one unit
- Dual voltage rating: 440/370 volts for broad equipment compatibility
- Round form factor: 2.50 inches x 3.94 inches for compact installation
- Rated for both 50 Hz and 60 Hz power systems
- Suitable for ducted and ductless HVAC applications
- Lightweight at 0.75 pounds for easy handling in confined spaces
Compatibility
Designed as an OEM-style replacement dual run capacitor for residential and light commercial HVAC systems requiring a 50+5 MFD, 440/370-volt round capacitor.
Installation Notes
Dual run capacitors are installed by licensed HVAC technicians. Before servicing, disconnect and lock out power to the condensing unit and discharge the existing capacitor using an insulated resistor or discharge tool before handling any terminals. Verify the MFD rating and voltage rating on the failed capacitor before installing the replacement. Follow all applicable local electrical codes and manufacturer wiring diagrams during reconnection.
Technical Specifications
-
MFD Rating: 50 + 5 MFD
-
Voltage Rating: 440/370 volts
-
Shape: Round
-
Hertz: 50/60 Hz
-
Dimensions: 2.50 inches x 3.94 inches
-
Weight: 0.75 pounds
-
Capacitance Type: Dual
-
Application: Ducted and Ductless
Standard Information
-
Brand: DIVERSITECH
-
Manufacturer Part Number: trcfd505
