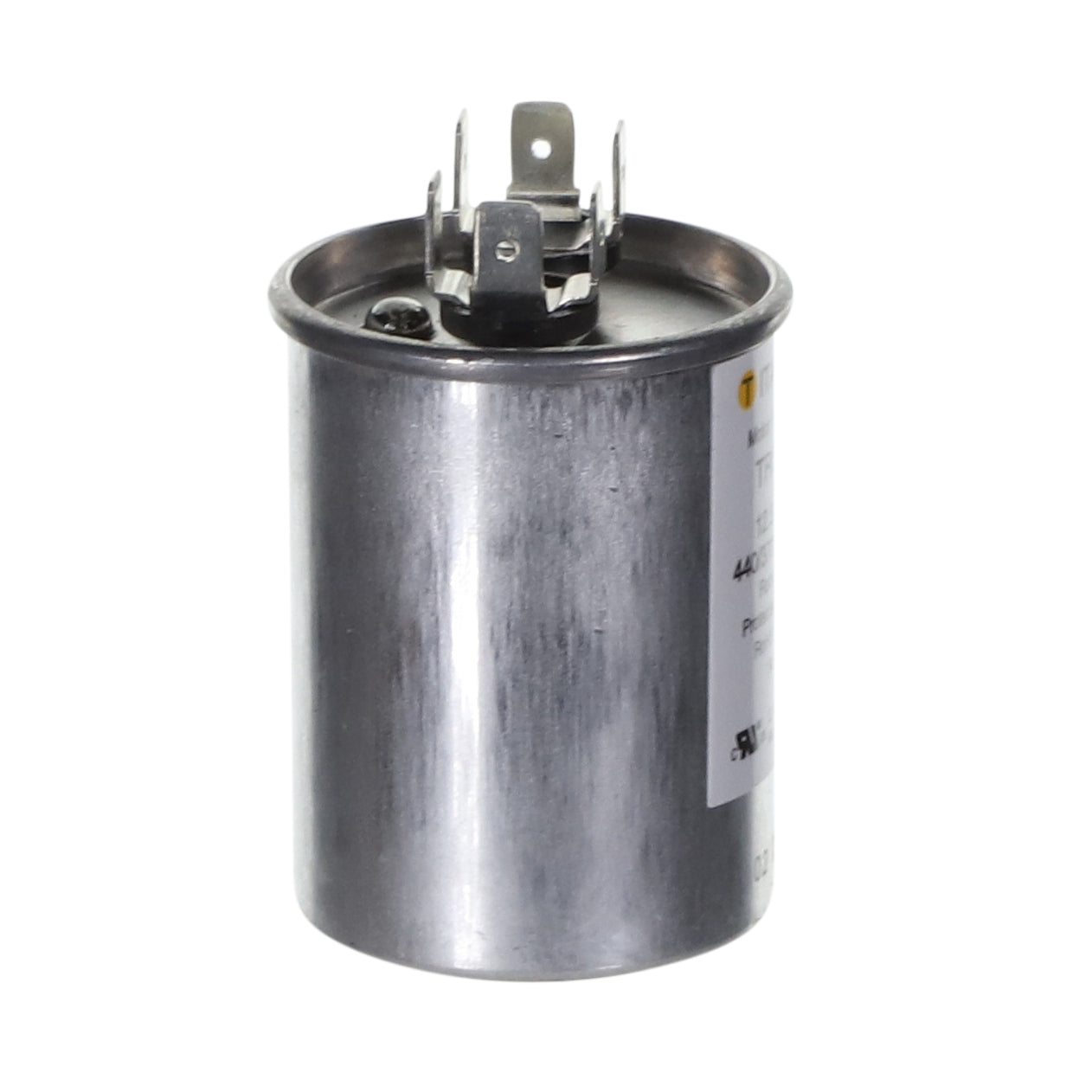

Diversitech TRCF12.5 TRCF12.5 12.5 Mfd 440/370V Round Capacitor

Product Description

The DIVERSITECH TRCF12.5 is a motor run capacitor designed for AC motors. This 1-section, round capacitor features a soybean base oil and standard blade terminals. It has an operational life of 60,000 hours and is compliant with RoHS standards. The capacitor is constructed with heavy-edged metalized polypropylene film and a second-generation anti-explosion safety switch.

• Motor Run Capacitor
• RoHS Compliant
• Second Generation Anti-Explosion Safety Switch

Product Highlights

This capacitor is suitable for HVAC/Refrigerant applications and is 100% electrically tested. It is also heat tolerant.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: TRCF12.5

Technical Specifications

• Type: Run Capacitor, 1-Section, Round
• Used On: AC Motor
• Material: Aluminum
• Shape: Round
• MFD Rating: 12.5
• Volts: 370, 440
• Hertz: 50, 60
• Capacitance: 12.5 Microfarad
• Voltage Rating: 440/370 Volt AC 50/60 Hertz
• Can Size: 1.77 Inch Diameter x 2.17 Inch Height
• Can Material: Aluminum
• Film Material: Metalized Polypropylene
• Temperature Rating: -40 to 70 Deg C
• Tolerance: +/-5 Percent
• Life in Hour: 60000
• Application: HVAC/Refrigerant
• Applicable Standard: UL (Canada and US), CSA C22.2, IEC 60252, EIA-456A
• Terminal Type: Standard Blade
