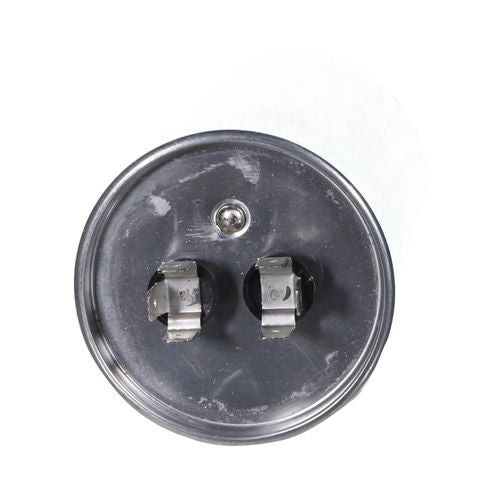

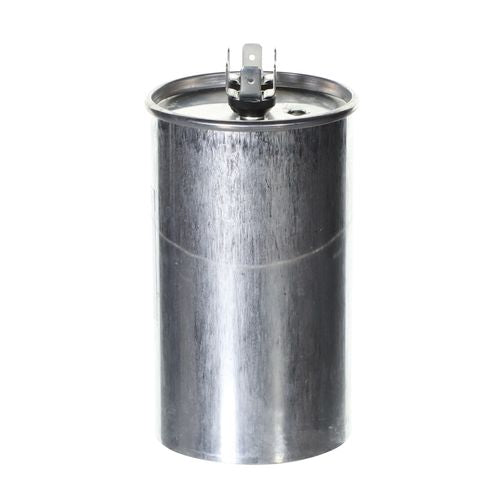

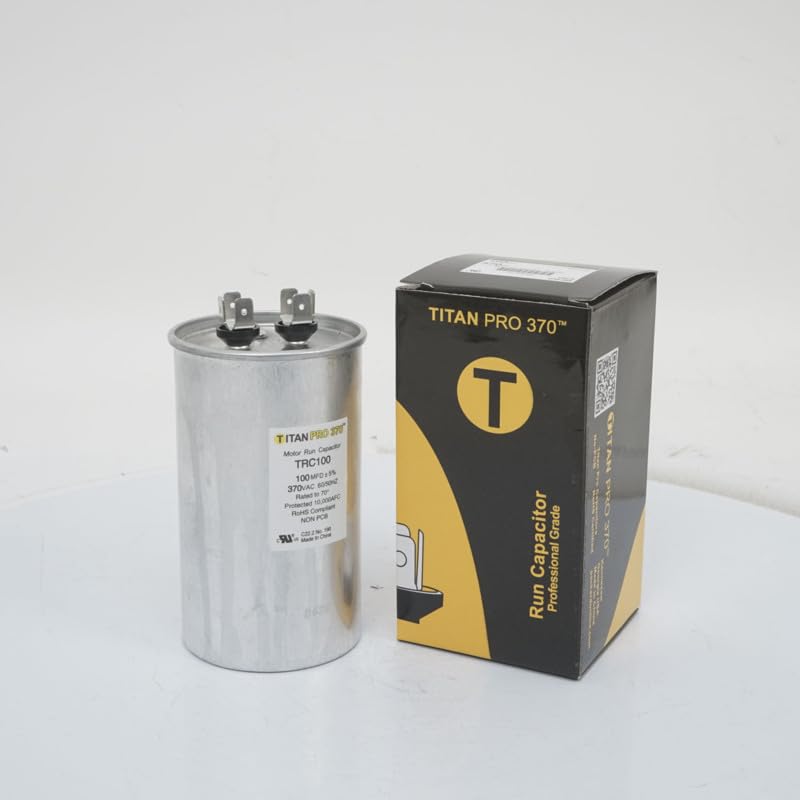

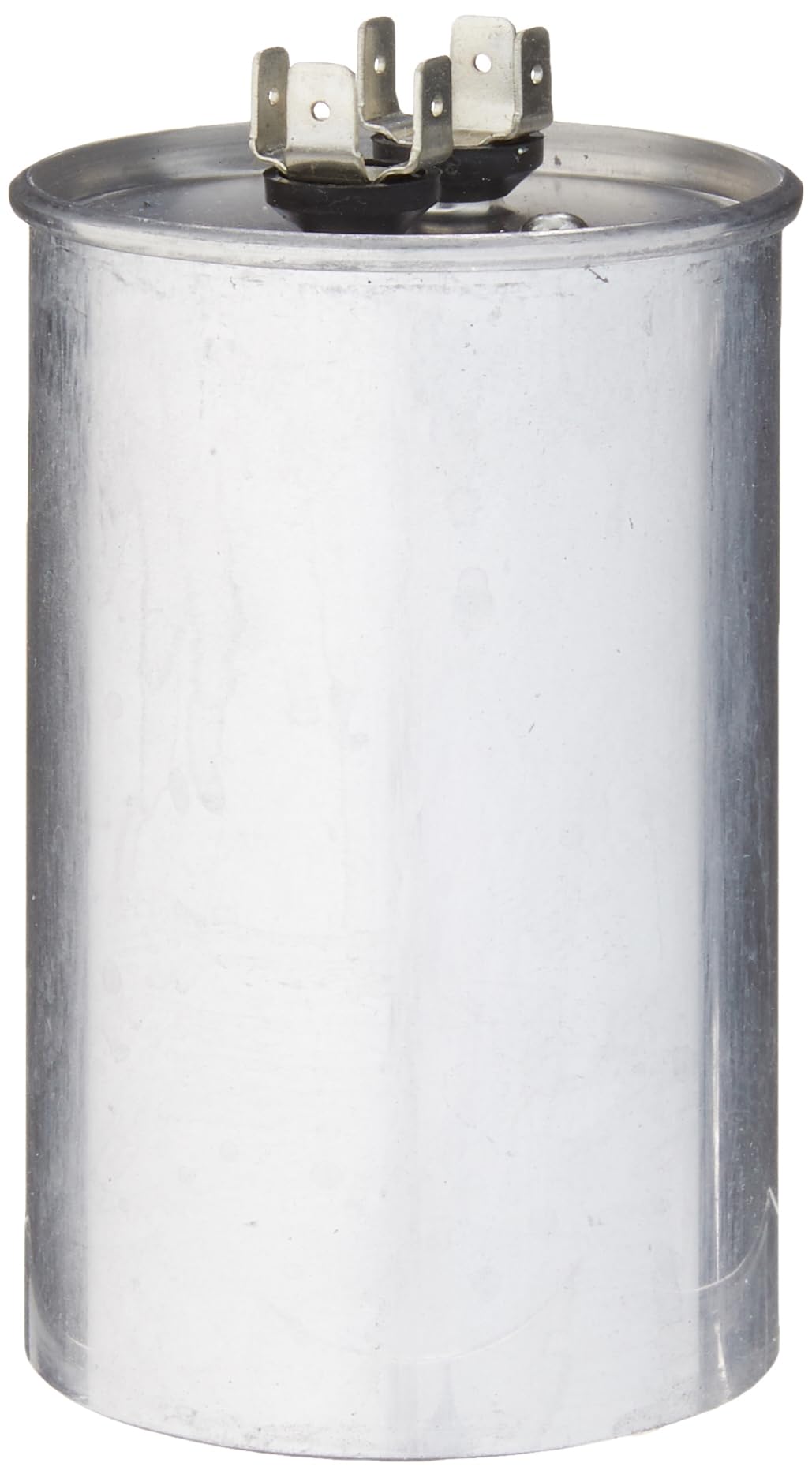

Diversitech TRC100 Capacitor 100 MFD 370V Round

Product Description

The DIVERSITECH TRC100 is a professional-grade motor run capacitor designed for demanding applications. With an operational life of 60,000 hours, this capacitor outperforms standard motor run capacitors by 83%. It is built to meet international standards, including EIA-456-A and IEC 60252-1:2001.

• 60,000 hours operational life
• Built to EIA-456-A and IEC 60252-1:2001 standards
• Proprietary bio-degradable oil

Product Highlights

This capacitor features heavy-edged metalized polypropylene film, a bio-degradable oil, and a second-generation anti-explosion safety switch.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: TRC100
• Country of Origin: CHINA

Technical Specifications

• Capacitor Voltage: 370
• Run MFD: 100
• Height (In): 5.31
• Capacitor Shape: Round
• Diameter (In.): 2.5
• Hertz: 50/60
• Material: Aluminum
• Operating Temperature Range: -40 to 70
• Terminals: Standard blade terminals
• Tolerance: +/- 5%
• Voltage: 370
• Shape: Round
• Capacitance: Single
• MFD Rating: 100
• Primary Depth (inches): 2.75
• Primary Width (inches): 2.75
• Primary Height (inches): 5
