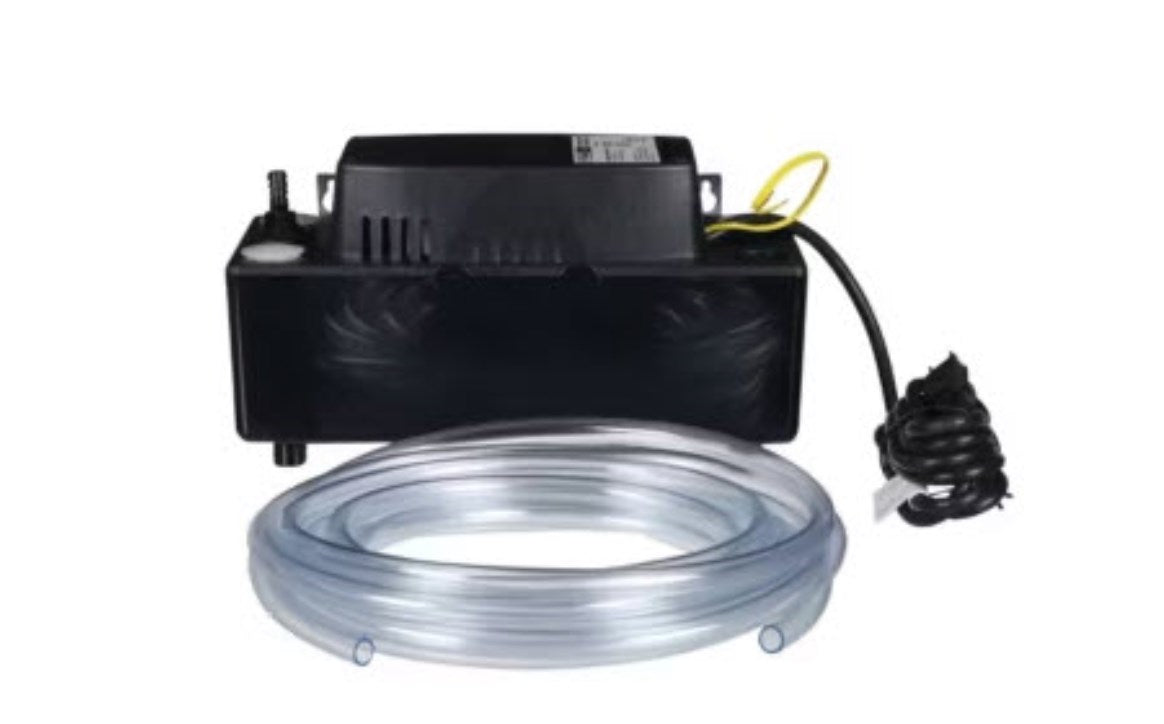

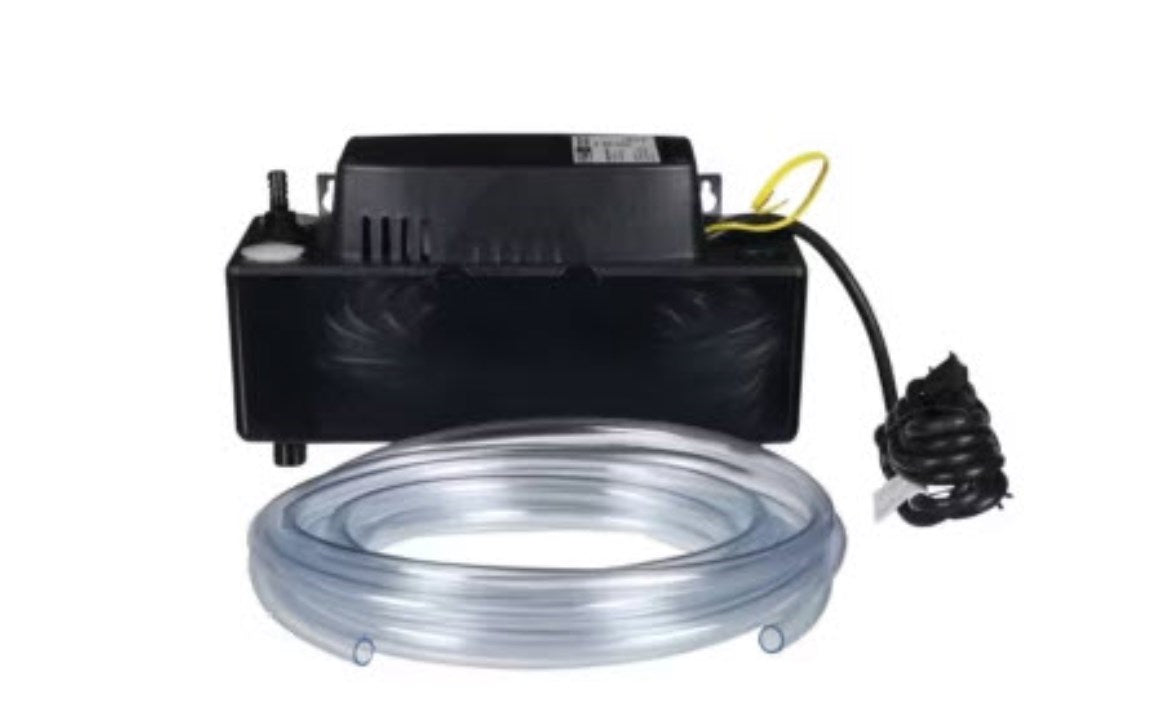

Diversitech TP-PROCP-20ST Condensate Pump 115V

Product Description

The DIVERSITECH TP-PROCP-20ST is a 115-volt condensate pump designed to remove condensate discharge from HVAC equipment in residential and light commercial applications. Built for durable, long-term service, the pump delivers up to 22 feet of vertical lift and ships with 20 feet of 3/8-inch clear tubing ready for installation. A built-in overflow safety switch protects the system if the reservoir reaches a high-water condition. LED indicator lights give technicians a quick visual status check without removing panels. Metal hang tabs allow secure wall or unit mounting, and anti-vibration feet reduce noise and movement during operation.

This condensate pump is suited for installation on gas furnaces, air handlers, fan coils, mini-split systems, and other HVAC equipment that produces condensate but lacks a gravity drain. The removable check valve simplifies serviceability, and the four inlet holes provide flexible plumbing configurations. Licensed HVAC technicians and refrigeration mechanics are the typical installers. The included 20-foot length of 3/8-inch clear tubing covers most standard residential condensate line runs without a separate tubing purchase.

Key Features

• 22 feet of vertical lift for flexible drain routing
• Includes 20 feet of 3/8-inch clear discharge tubing
• Overflow safety switch shuts down connected equipment on high-water condition
• Removable check valve for easier maintenance and servicing
• LED indicator lights provide at-a-glance operational status
• Metal hang tabs and anti-vibration feet for secure, low-noise mounting
• Four inlet holes support multiple plumbing configurations

Compatibility

Designed as an OEM-style replacement or new-installation condensate pump for residential and light commercial HVAC systems that require powered condensate removal.

Installation Notes

Installation is typically performed by a licensed HVAC technician. Disconnect and lock out power to the HVAC system before connecting or servicing the pump. Ensure the discharge line is routed with no low spots that could trap water and restrict flow. Verify the overflow safety switch wiring is connected to a low-voltage control circuit so the system shuts down before an overflow condition occurs.

Technical Specifications

• Voltage: 115 volts
• Maximum Lift: 22 feet
• Included Tubing Length: 20 feet
• Included Tubing Diameter: 3/8 inches
• Inlet Holes: 4
• Overflow Safety Switch: Included
• Mounting: Metal hang tabs, anti-vibration feet

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: TP-PROCP-20ST
