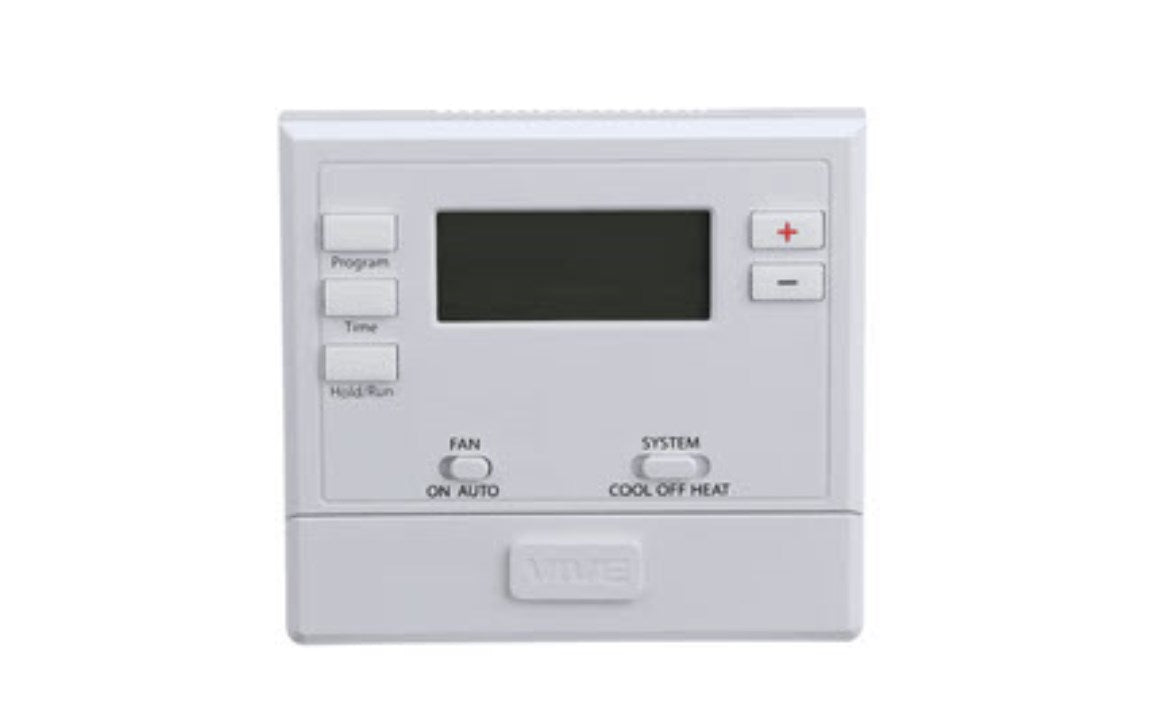

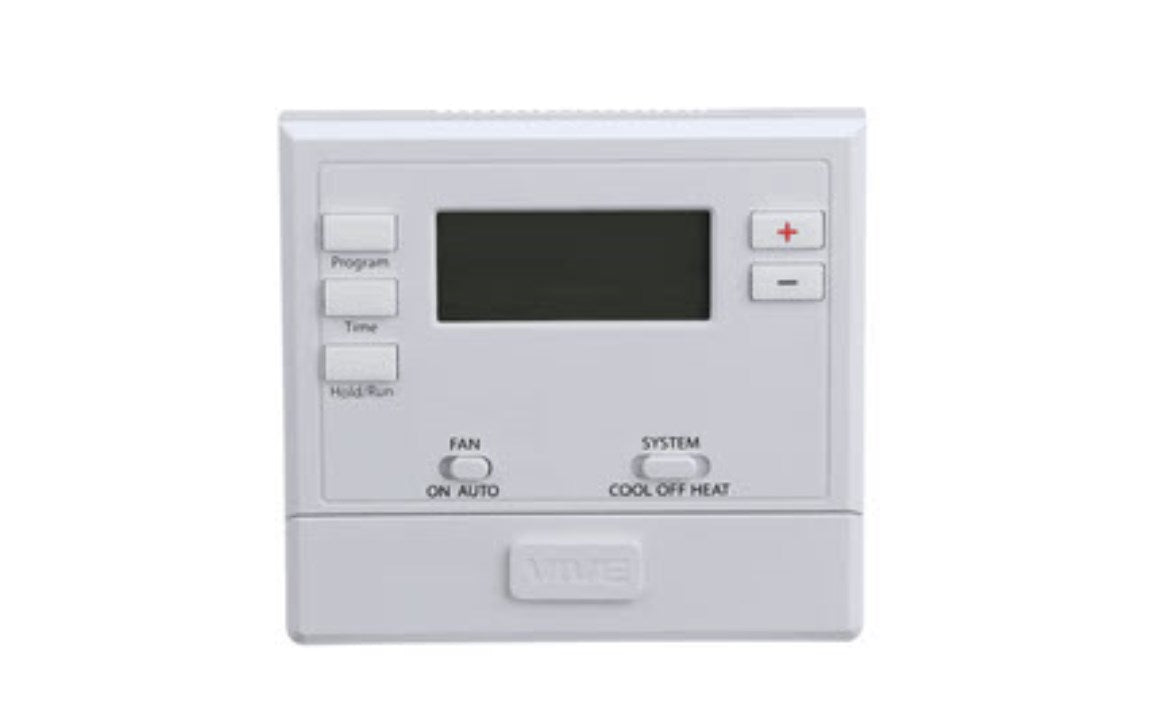

Diversitech TP-P-605 Programmable Thermostat 600 Series

Product Description

The DIVERSITECH TP-P-605 is a programmable thermostat from the Vive 600 Series, designed for single-stage heating and cooling systems in residential and light commercial applications. It supports a 5+1+1 scheduling format, allowing separate programming for weekdays, Saturday, and Sunday. This thermostat gives HVAC technicians and installers a straightforward, field-ready controls solution for standard forced-air systems. The 600 Series is built for easy swap-out of conventional non-programmable thermostats and supports common low-voltage wiring configurations found in split systems and gas furnace setups.

The TP-P-605 is suited for residential and light commercial HVAC installations where a single-stage heat and single-stage cool control is required. It fits typical forced-air split systems with a conventional thermostat wiring setup. HVAC technicians will find it appropriate for new installations, equipment replacements, and upgrade projects where a programmable schedule is required by energy codes or customer preference.

Key Features

• 5+1+1 programmable scheduling: weekday, Saturday, and Sunday programs set independently
• 1 Heat / 1 Cool single-stage control for standard forced-air systems
• Part of the Vive 600 Series controls platform
• Low-voltage thermostat for conventional HVAC wiring configurations
• Designed for straightforward field installation and replacement

Compatibility

Designed as an OEM-style programmable replacement thermostat for single-stage residential and light commercial heating and cooling systems using conventional low-voltage wiring.

Installation Notes

Installation should be performed by a licensed HVAC technician. Power down the air handler, furnace, and condensing unit at the disconnect or breaker before removing the existing thermostat. Verify low-voltage wiring terminations match the labeled terminals on the new thermostat base before restoring power. Follow local mechanical and electrical codes for thermostat replacement and programmable control requirements.

Technical Specifications

• Product Type: Programmable Thermostat
• Series: Vive 600
• Stages: 1 Heat / 1 Cool
• Schedule Format: 5+1+1

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: TP-P-605
