Diversitech TP-DTK113B Condensate Drain Trap Kit 3/4 in

Product Description

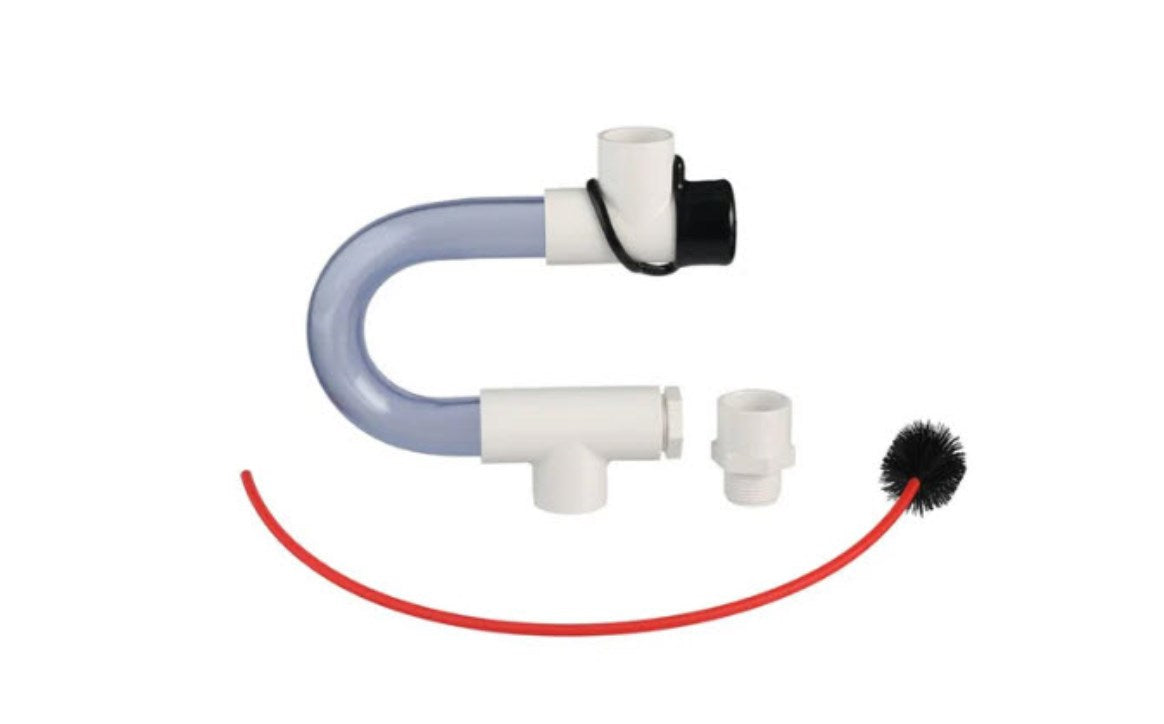

The DIVERSITECH TP-DTK113B is a condensate drain trap kit designed for HVAC condensate drainage applications. The kit includes a clear PVC U-trap with a 1 inch drop, a 3/4 inch adapter, and a cleaning brush, giving technicians everything needed for a complete installation in a single package. The clear PVC construction allows visual inspection of the trap body, so blockages and buildup are identifiable without disassembly. This trap kit is sized for 3/4 inch condensate drain lines, which are standard on a wide range of residential and light commercial air handlers and furnaces.

This kit is suited for condensate drain line installations on split systems, heat pumps, gas furnaces with secondary heat exchangers, and packaged units that produce condensate. HVAC technicians typically install this trap during new equipment startup or as a replacement on existing drain systems where the original trap is cracked, clogged, or missing. The included brush supports routine maintenance cleaning without requiring additional tools.

Key Features

• Clear PVC trap body allows visual detection of blockages without disassembly
• 3/4 inch U-trap with 1 inch drop sized for standard condensate drain lines
• Includes 3/4 inch adapter for direct connection to common drain line fittings
• Cleaning brush included for routine maintenance and clearing of buildup
• Complete kit provides all components needed for installation in one package

Compatibility

Designed as an OEM-style replacement or new-installation condensate trap for residential and light commercial HVAC systems using 3/4 inch condensate drain lines.

Installation Notes

Installation is typically performed by a licensed HVAC technician. Shut off the air handling unit and confirm the unit is not in a heating or cooling cycle before working on the condensate drain system. Ensure proper trap depth and slope to allow adequate condensate flow and prevent drain pan overflow. Follow local plumbing and mechanical codes for condensate disposal requirements.

Technical Specifications

• Product Type: Condensate Trap Kit
• Drain Line Size: 3/4 inch
• Trap Drop: 1 inch
• Material: Clear PVC
• Includes: 3/4 inch U-trap, 3/4 inch adapter, cleaning brush

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: TP-DTK113B
