Diversitech TP-60AMP 60 Amp Fusible Disconnect

Product Description

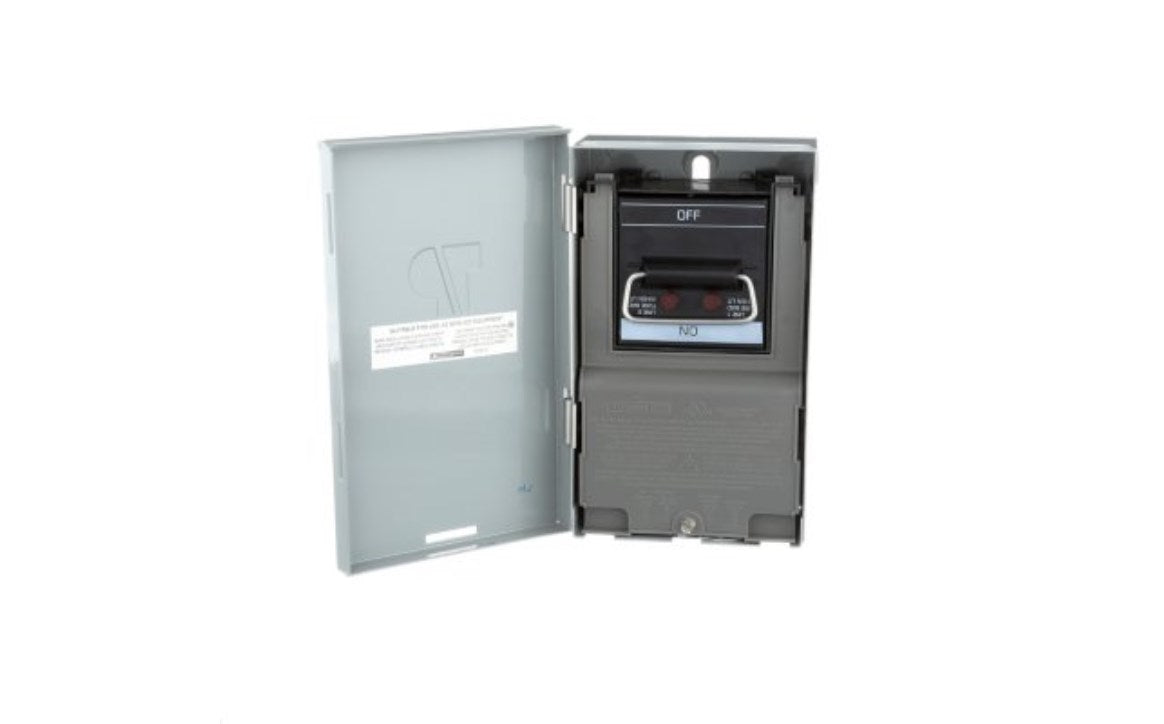

The DIVERSITECH TP-60AMP is a 60-amp fusible disconnect switch designed for residential and light commercial HVAC installations. The unit features fuses housed directly in the pull-out handle, allowing field technicians to replace blown fuses quickly without additional tools. Line, load, and ground terminals are aligned in a straight configuration to simplify wiring runs and reduce installation time. Blown-fuse indicator lights give a fast visual confirmation of fuse status without requiring meter testing. The enclosure is rain tight and sleet resistant, making it suitable for outdoor condenser disconnect applications.

This disconnect is used as the required service disconnect for outdoor condensing units, heat pumps, and similar HVAC equipment where a local disconnect within sight of the unit is required by the NEC. The reversible door design accommodates left-hand or right-hand opening to suit the approach direction on any job. The side-open door swings more than 180 degrees for unobstructed access to terminals and fuses during service calls. A full dead front covers energized parts when the disconnect is in the open position, providing a critical safety barrier for service technicians.

Key Features

• Fuses located in pull-out handle for fast, tool-free replacement
• Blown-fuse indicator lights for immediate visual fault identification
• Aligned line, load, and ground terminals simplify field wiring
• Reversible door opens left or right to suit installation orientation
• Side-open door swings more than 180 degrees for maximum terminal access
• Full dead front covers energized components when disconnect is open
• Rain tight and sleet resistant enclosure rated for outdoor use

Compatibility

Designed as an OEM-style replacement or new-installation disconnect for outdoor HVAC condensing units and heat pumps requiring a fused local disconnect in compliance with NEC Article 440 requirements.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician in accordance with NEC Article 440 and applicable local codes. De-energize the upstream circuit at the main panel before mounting or wiring the disconnect. Verify that fuse ampacity and voltage rating match the nameplate requirements of the connected equipment before energizing. Mount the enclosure securely to a solid surface to maintain the rain tight integrity of the housing.

Technical Specifications

• Amperage: 60 amps
• Disconnect Type: Fusible
• Enclosure Rating: Rain tight and sleet resistant
• Door Configuration: Reversible, opens left or right, more than 180 degrees
• Fuse Location: Pull-out handle
• Dead Front: Full dead front included
• Product Type: Electrical Disconnect

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: TP-60AMP
