Product Description

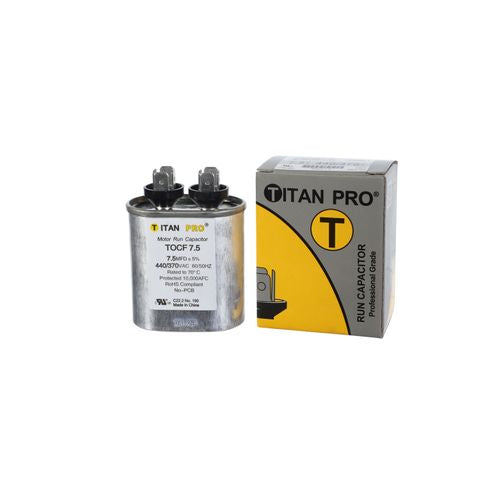

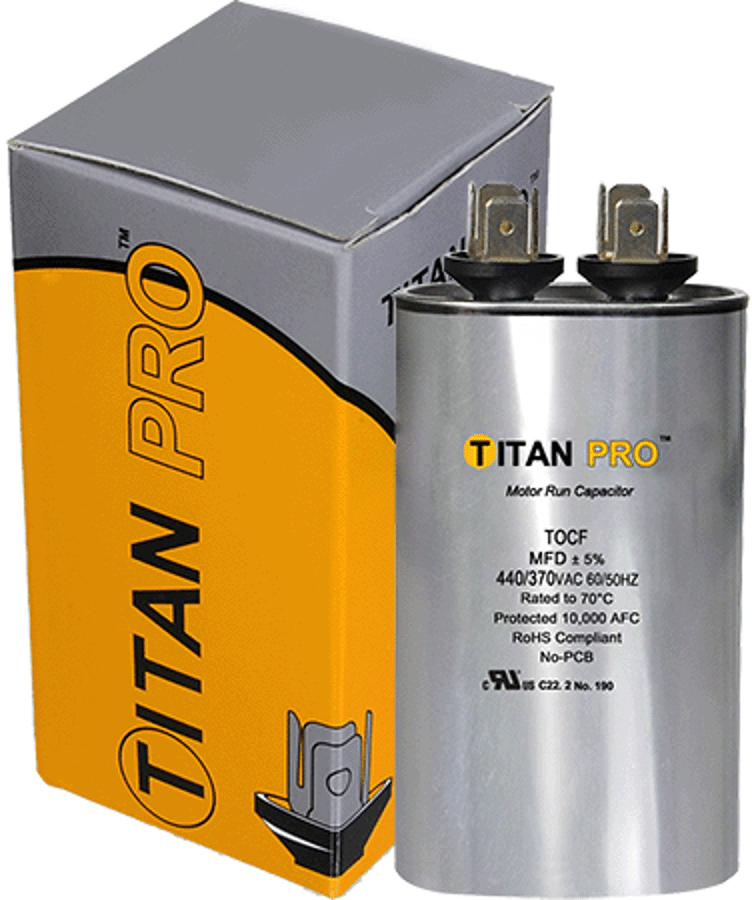

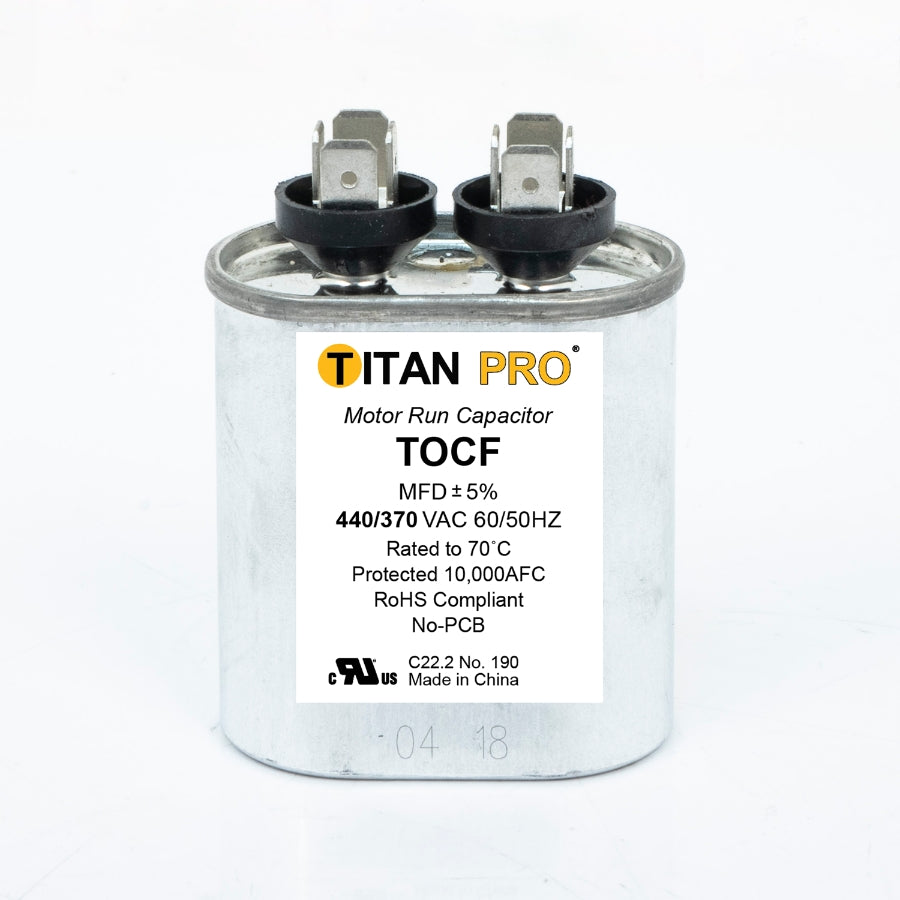

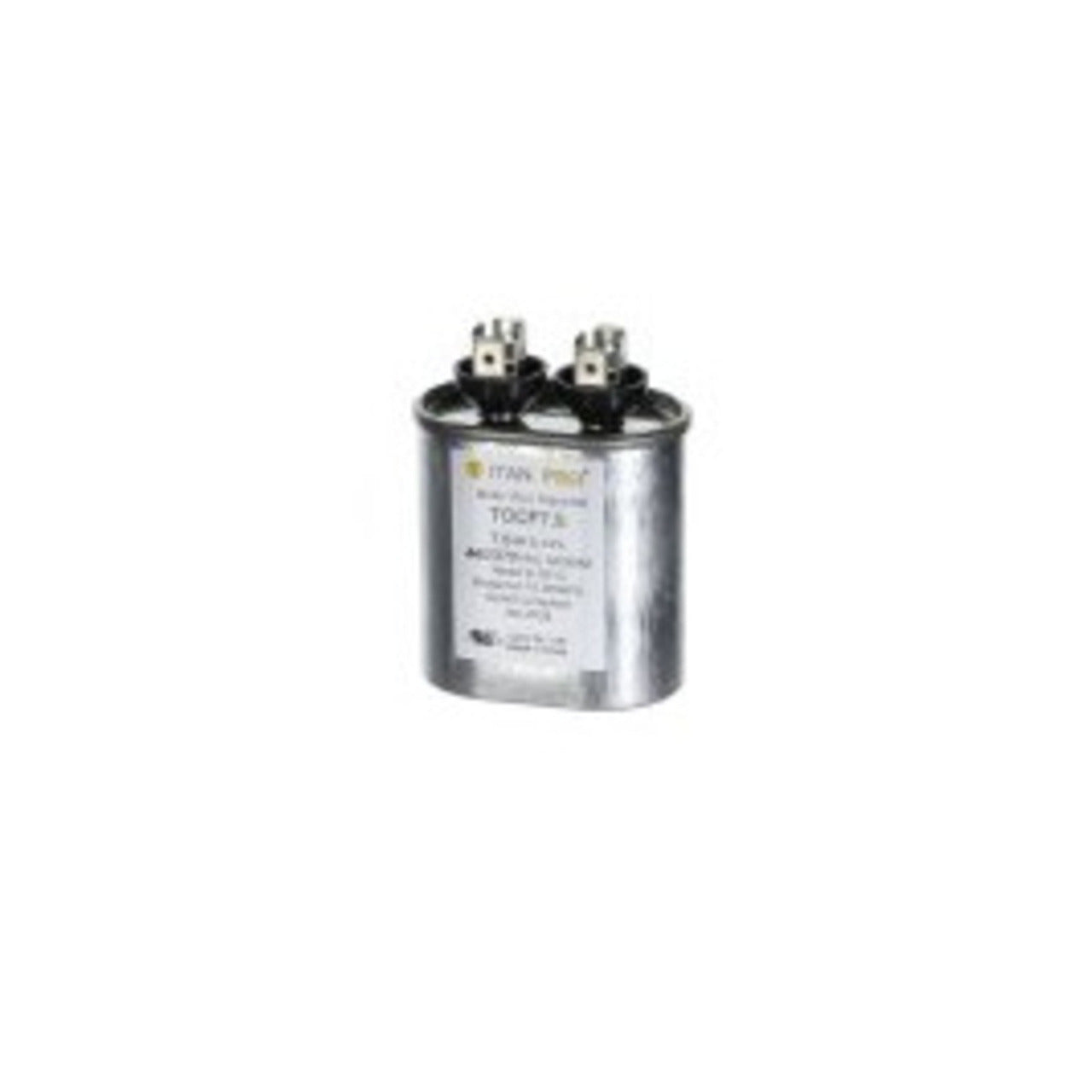

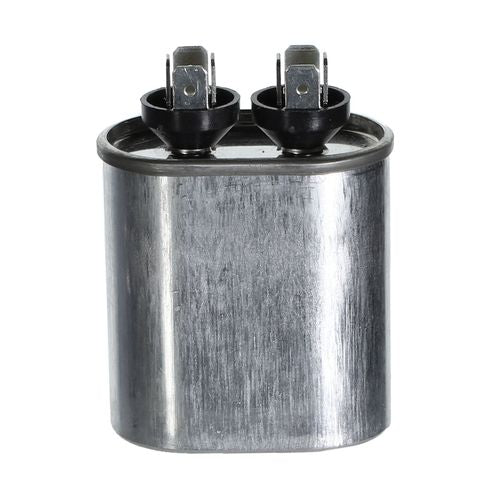

The DIVERSITECH tocf7.5 is a single-capacitance, oval motor run capacitor rated at 7.5 microfarads (MFD) and dual-rated for 440/370 volts. Designed for professional HVAC service work, it supports both 50 Hz and 60 Hz systems, making it suitable across a broad range of residential and light commercial equipment. The compact oval form factor measures 1.24 inches by 2.03 inches by 2.17 inches and weighs 0.3 pounds, fitting easily into tight equipment compartments. Licensed HVAC technicians use this component to maintain proper motor starting and running torque in condenser fan motors and compressor circuits.
This capacitor is applicable in both ducted and ductless split systems. It is a direct-fit option for single-capacitance motor run applications in residential and light commercial HVAC equipment. The dual voltage rating of 440/370 volts provides flexibility when servicing a wide variety of fan motor and compressor circuits. Its oval shape suits standard capacitor brackets commonly found in outdoor condensing units and air handler assemblies.
Key Features
- 7.5 MFD single-capacitance rating for motor run applications
- Dual voltage rating: 440/370 volts for broad equipment compatibility
- Compatible with both 50 Hz and 60 Hz systems
- Oval form factor: 1.24 inches x 2.03 inches x 2.17 inches for compact installation
- Rated for both ducted and ductless HVAC systems
- Lightweight at 0.3 pounds for easy handling during service calls
Compatibility
Designed as an OEM-style replacement for single-capacitance motor run capacitor applications in residential and light commercial ducted and ductless HVAC systems operating on 370V or 440V circuits at 50 Hz or 60 Hz.
Installation Notes
Installation should be performed by a licensed HVAC technician. Always disconnect and lock out power to the unit before handling capacitors, and discharge any stored voltage using an approved discharge tool prior to removal. Verify that the MFD rating and voltage rating of the replacement capacitor match the equipment nameplate specifications before installation. Follow all applicable local electrical codes and manufacturer service guidelines.
Technical Specifications
-
MFD Rating: 7.5 MFD
-
Voltage Rating: 440/370 volts
-
Capacitance Type: Single
-
Shape: Oval
-
Frequency: 50/60 Hz
-
Dimensions: 1.24 inches x 2.03 inches x 2.17 inches
-
Weight: 0.3 pounds
-
Application: Ducted and Ductless
Standard Information
-
Brand: DIVERSITECH
-
Manufacturer Part Number: tocf7.5
