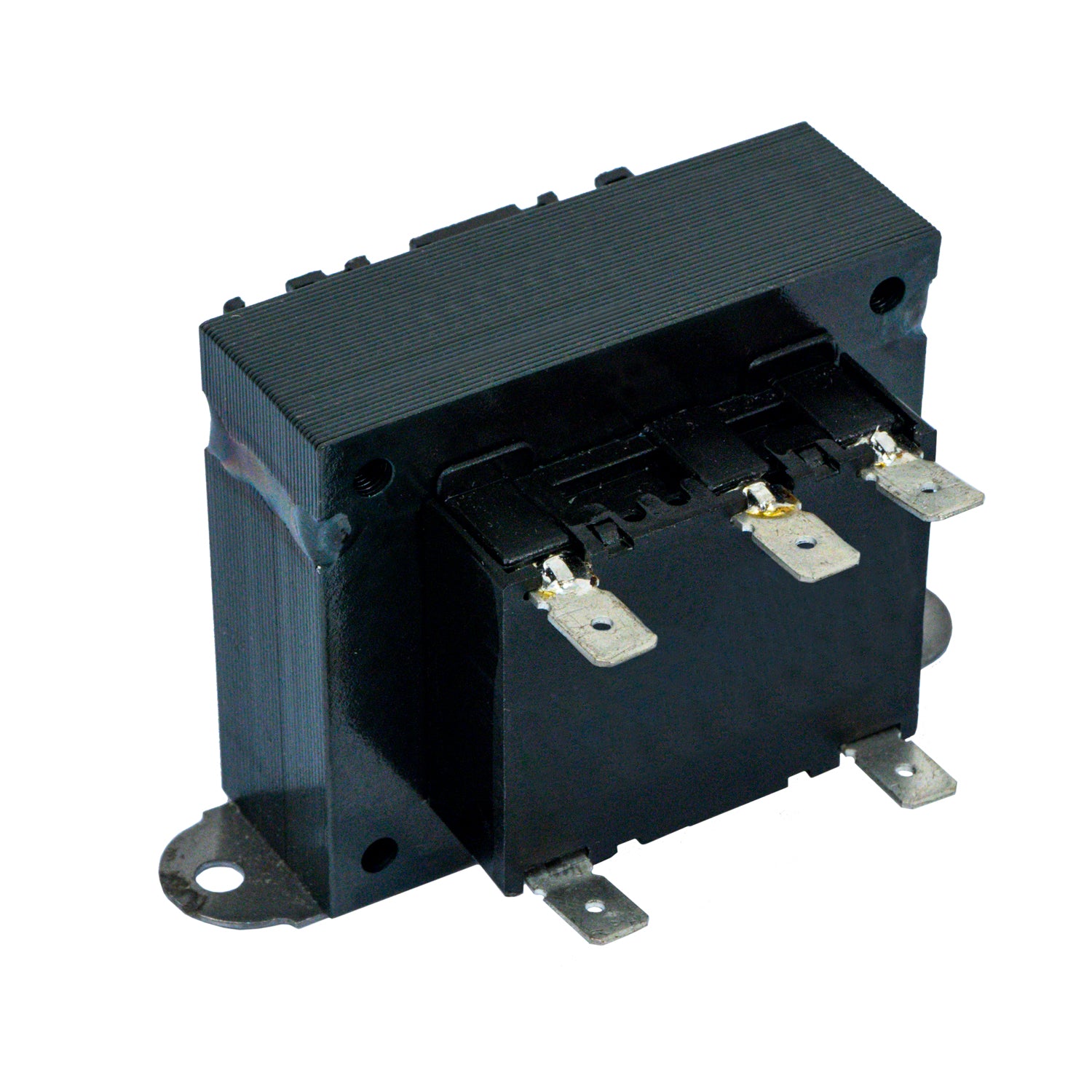

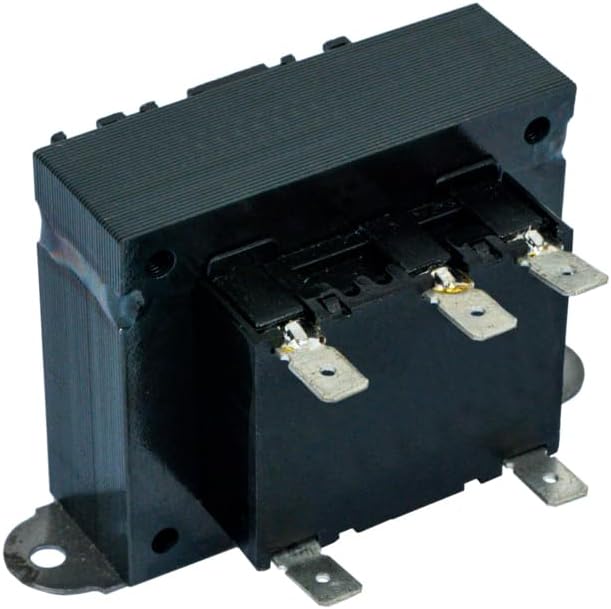

Diversitech TF40224A 40 Va Class Ii Foot Mount Transformer TF40224A

Product Description

The DiversiTech TF40224A is a 40 VA Class II foot mount transformer. It features 50/60Hz operation and a UL 1446 Recognized Class F 155 C insulation system. The transformer is made in the USA and utilizes 1/4" male spade connection type.

• Made in the USA
• Class 2 Recognized
• 50/60Hz Operation

Product Highlights

This DiversiTech transformer offers reliable power conversion with a focus on safety and durability, suitable for various applications.

Product Information

Standard Information

• Brand: DiversiTech
• Manufacturer Part Number: TF40224A
• Country of Origin: USA

Technical Specifications

• VA Rating: 40
• Input Voltage: 208/240
• Output: 24V
• Connection Type: 1/4" Male Spade
• Primary Connections: 1/4" Male Spade
• Foot Mount: Yes
• Class: Class 2
• Frequency: 50/60Hz
• Insulation System: UL 1446 Recognized Class F 155 C
• Primary Voltage: 208/240 Volts
• Secondary Voltage: 24 Volts
• Mounting: Foot Mounting
• Item model number: TF40224A
