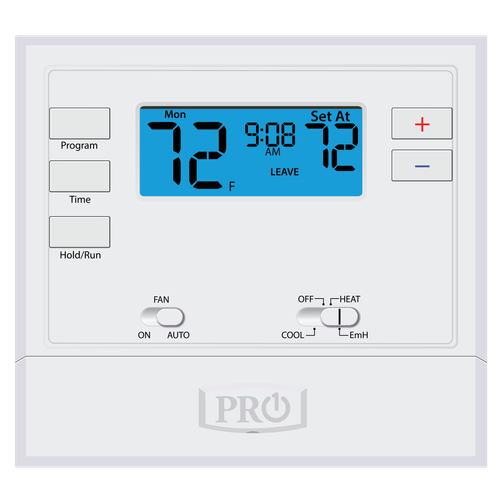

Diversitech T625-2 Pro1 Programmable Thermostat

Product Description

The DiversiTech T625-2 Pro1 is a simple and heavy-duty 600 Series programmable thermostat, ideal for new construction. It features separate heating and cooling swing adjustments and room temperature calibration adjustments. Includes a 5-minute compressor delay protection and an easy wire color-coded terminal block. Mounts on a wall or junction box with a universal sub-base.

• Separate heating and cooling swing (cycle rate) adjustments
• Room temperature calibration adjustments
• 5 minute compressor delay protection (on or off)
• Easy wire color coded terminal blocks

Product Highlights

Programmable thermostat with separate adjustments, compressor delay protection, and easy wiring.

Product Information

Standard Information

• Brand: DiversiTech
• Manufacturer Part Number: T625-2

Technical Specifications

• Display: 2 sq. inch backlit LCD
• For Use With: Conventional|Gas/Oil|Electric Furnace|Heat Pumps with Auxilary|Heat Pumps without Auxilary|Dual Fuel Systems
• Power Supply: Battery or Hardwire (24V)
• Product Height: 4.4 in.
• Product Length: 1.1 in.
• Product Width: 4.7 in.
• Programming Interface: On-Device Programming
• Scheduling: 7 Day|5/1/1 Day
• Stage detail: 2 Heat/1 Cool Heat Pump, 1 Heat/1 Cool Conventional
• Stages: Mulit-stage
