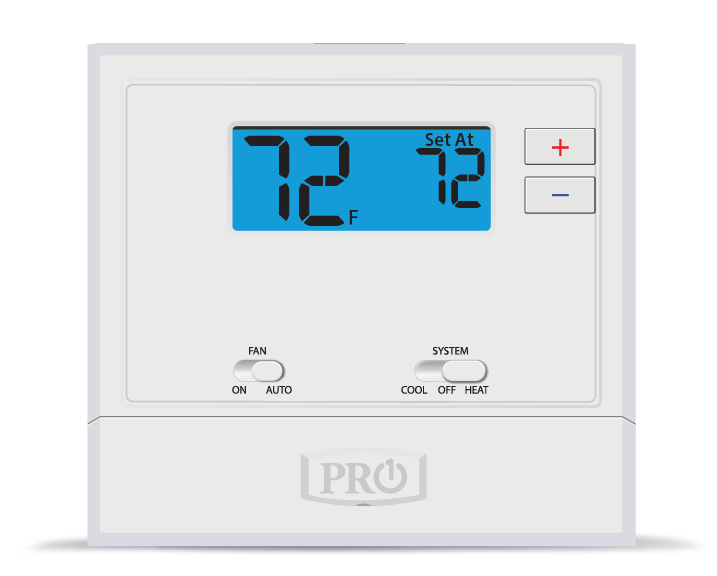

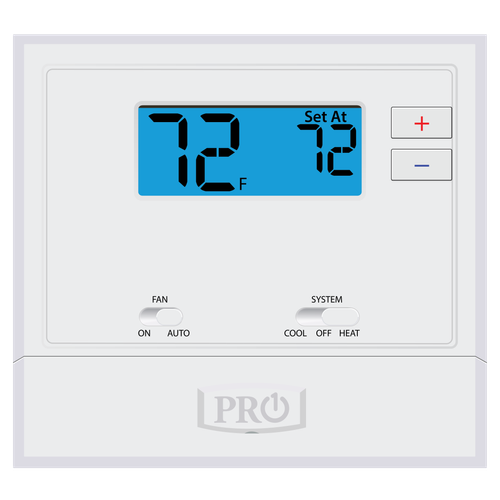

DIVERSITECH T601-2 Non-Programmable Thermostat

Product Description

The DIVERSITECH T601-2, also known as Pro1 T601-2, is a non-programmable thermostat designed for single-stage heating and cooling systems. This thermostat is ideal for new construction and offers robust features suitable for various HVAC needs.

• Separate heating and cooling swing adjustments
• Room temperature calibration adjustments
• 5-minute compressor delay protection

Product Highlights

Designed for easy installation, the DIVERSITECH T601-2 is a reliable choice for HVAC professionals.

Product Information

Standard Information

• Power Supply: Battery or Hardwire (24V)
• Warranty: 2 year warranty

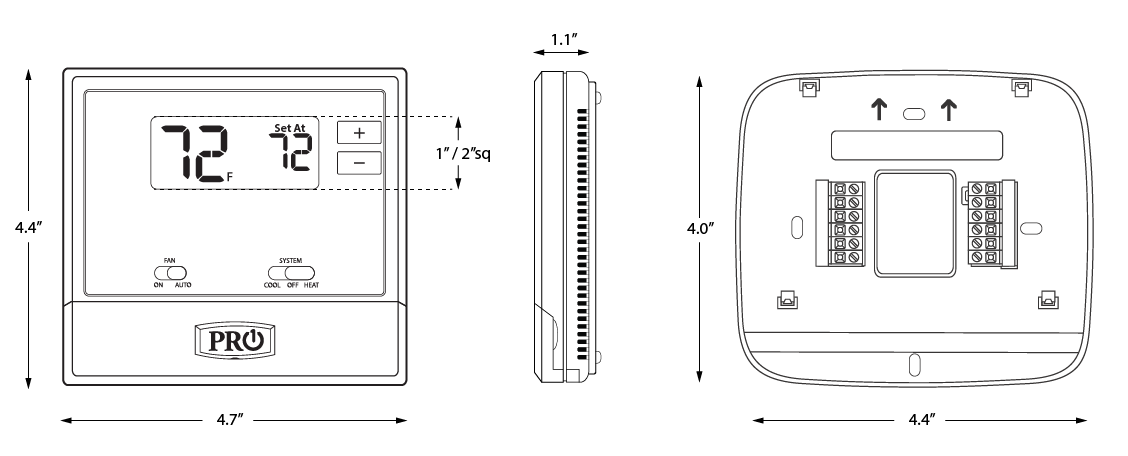

Technical Specifications

• Product Height: 4.4 inches
• Product Length: 1.1 inches
• Product Width: 4.7 inches
• Display: 2 square inch display
• Backlight: Blue back light
• Light Button: Glow in the dark light button
• Battery Compartment: Easy access battery compartment
• Fuel Type: Electric or Gas configurable
• Terminals: Separate B and O terminals
• Wiring: Easy wire color coded terminal blocks
• Mounting: Mounts on wall or junction box
• Power: Battery or 24V power
• Voltage: 18 to 30 VAC
• Country of Origin: Mexico
