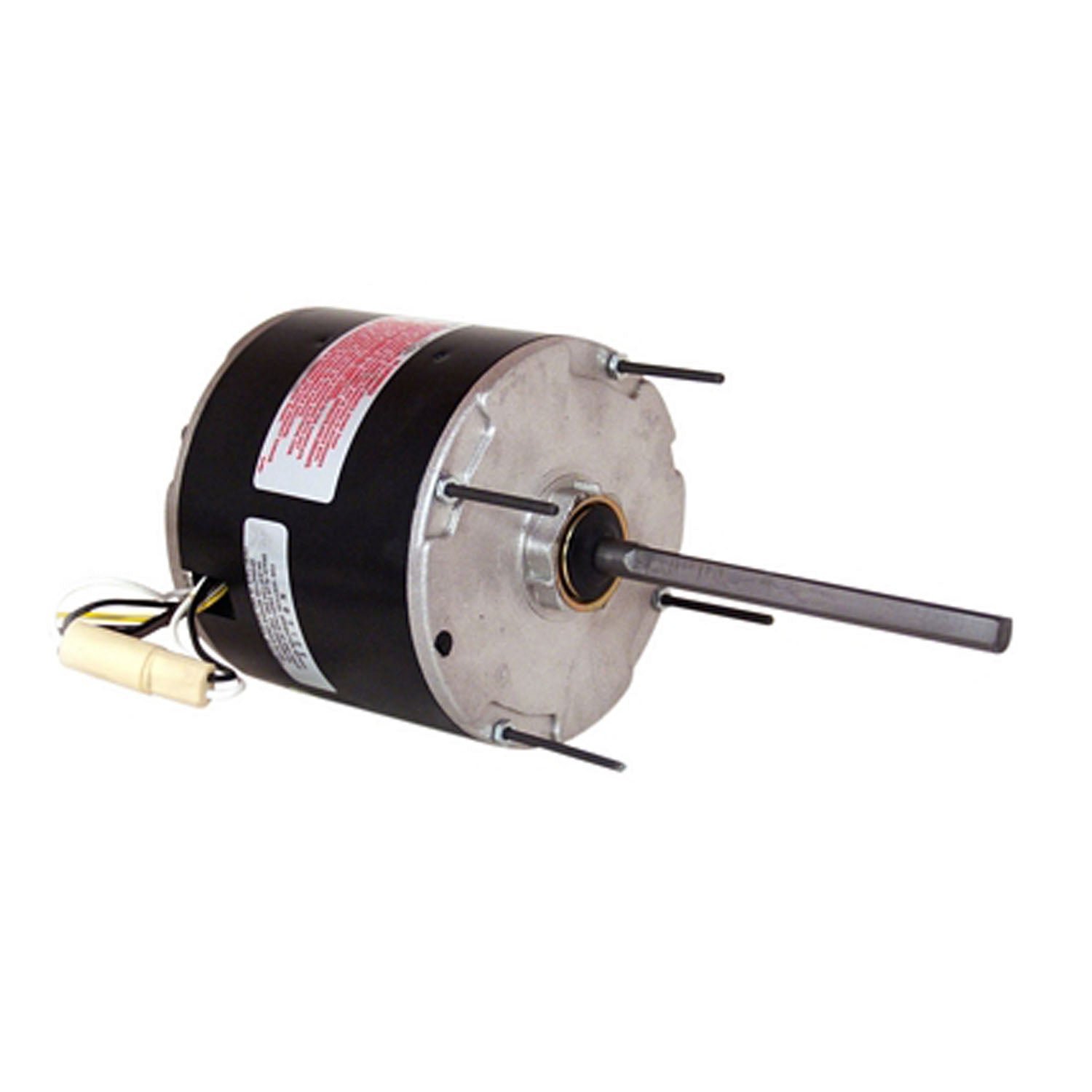

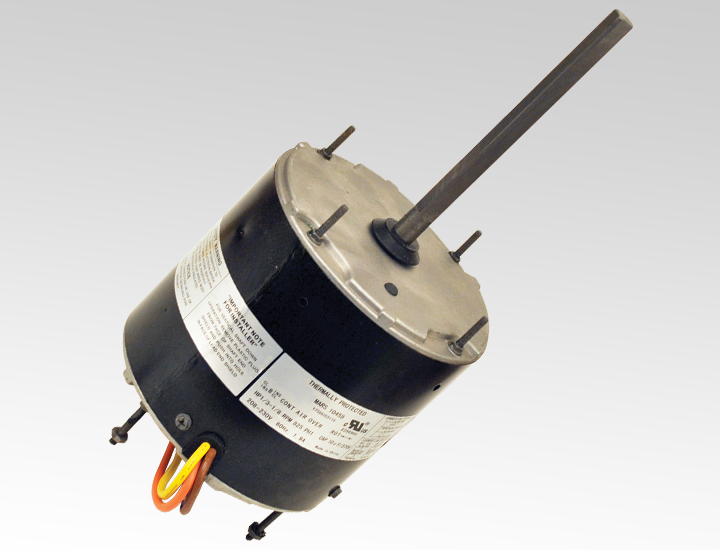

DIVERSITECH S1-FHM3469 Condenser Fan Motor 1/3 to 1/6 HP

Product Description

The DIVERSITECH S1-FHM3469 is a condenser fan motor suitable for HVAC/R systems. It runs on 208/230 VAC at 60 Hz and includes a 1-Phase power supply. It has a speed of 825 RPM and features electrical reversibility.

• Power Rating: 1/3 to 1/6 HP
• Voltage Rating: 208/230 Volt AC
• Speed Rating: 825 RPM

Product Highlights

This motor is energy-efficient and designed for thermal protection, making it ideal for ambient temperatures up to 60°C.

Product Information

Standard Information

• Brand: DIVERSITECH
• MPN: S1-FHM3469

Technical Specifications

• Horsepower: 1/3, 1/5
• Voltage: 208-230
• Rated Amps: 1.9, 1.2
• Bearings: BALL
• RPM/SPD: 825/2
• BM DIM: 5.24
• Shaft Size: 1/2 X 6
• Capacitor (MFD) 370V: 10
• Phase: 1
• Frequency: 60 Hertz
• Number of Speeds: 2
• Reversible: Yes
