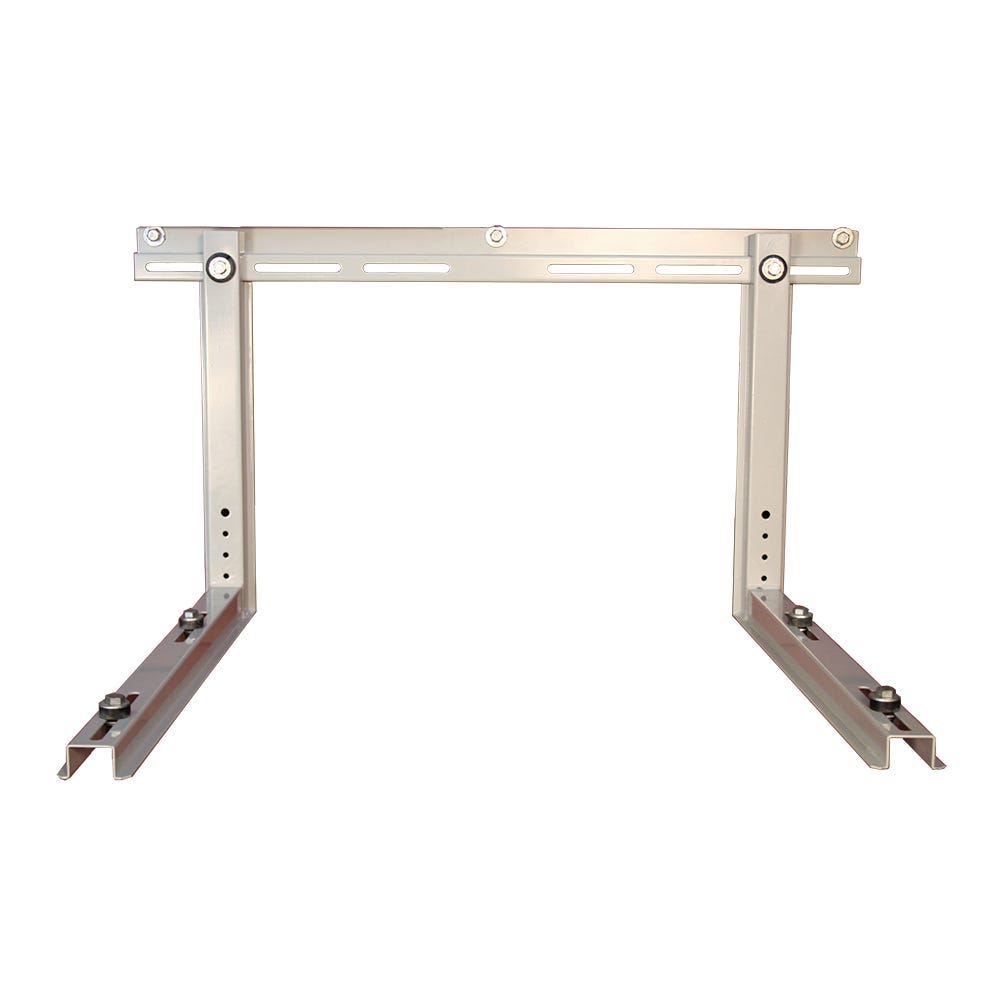

Diversitech QSWB2000 Mini Split Outdoor Wall Bracket with Rail Holds up to 350 Lbs.

Product Description

The DiversiTech QSWB2000 is a mini split outdoor wall bracket with rail, capable of holding up to 350 lbs. It is made from powder coated 14 gauge steel and is hurricane rated. The slider track allows shelf/arms to adjust from 6 - 34 in. widths and is designed to be mounted into framing studs at 12 in. or 16 in. on center.

• Made from powder coated 14 gauge steel
• Hurricane rated
• Slider track allows the shelf/arms to adjust from 6 - 34 in. widths.

Product Highlights

This wall bracket features hardware vibration isolation and is suitable for ductless condensers. It can be mounted on concrete, siding, block, brick, or stucco.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: QSWB2000-3

Technical Specifications

• Includes: Hardware Vibration Isolation
• Adjustable: Yes
• Base / Mount: Wall
• Application: Ductless Condenser
• Load Capacity: 350 lb.
• Rating: Wind Hurricane
• Arm or Shelf Length: 25 in.
• Mounting Method: Concrete Siding Block Brick Stucco
• No. of Arms: 2
• Product Width: 34 in.
• Ducted or Ductless: Ductless
