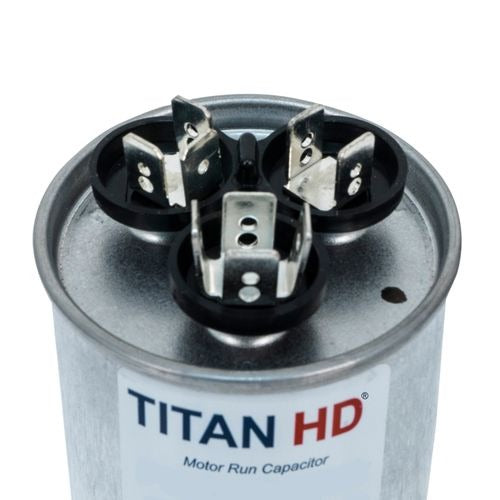

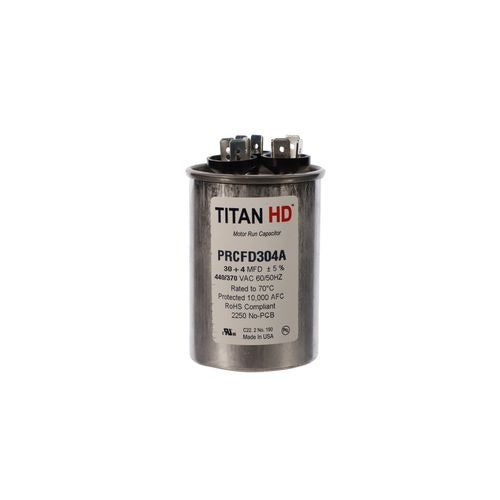

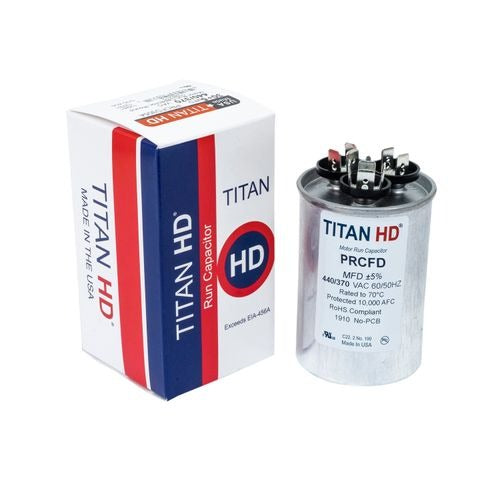

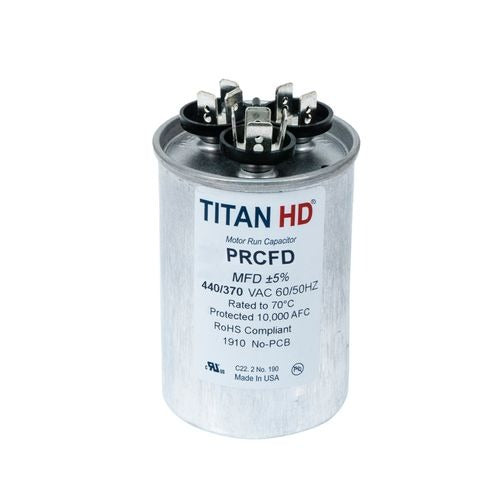

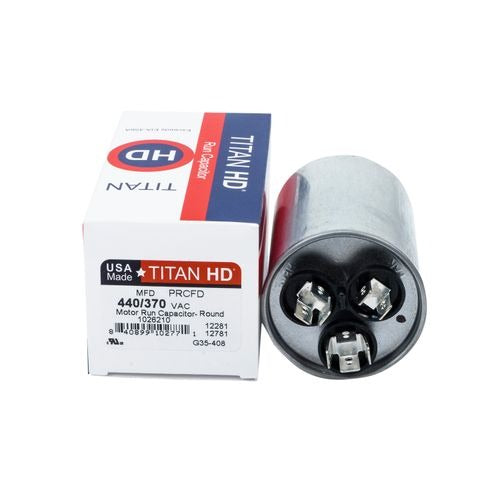

Diversitech PRCFD304A Packard Titan HD 30+4 Mfd (440/370 V) Round PRCFD304A

Product Description

DiversiTech PRCFD304A is a Titan HD run capacitor rated 30+4 uF for 440/370 V operation, intended for HVAC and refrigeration motor applications. It uses metalized polypropylene film, soybean-based oil, and a UL-approved pressure sensitive interrupter, and meets EIA-456-A performance standards with a 60,000-hour operating life. The aluminum round can with standard blade terminals is sized for 50/60 Hz systems and operates from -40 to 70 C.

• Electrical: 30+4 µF run capacitance, 440/370 V rating, +/- 5% tolerance, 50/60 Hz
• Construction: metalized polypropylene dielectric, soybean-based oil, aluminum round can, standard blade terminals
• Standards and durability: UL-approved pressure sensitive interrupter, meets EIA-456-A, 60,000 hours operating life, operating temperature -40 to 70 °C

Product Highlights

Dual run capacitor for HVAC and refrigeration motors; 30+4 µF at 440/370 V; metalized polypropylene, UL interrupter, 60,000-hour life

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: PRCFD304A
• Country of Origin: USA
