Diversitech msb-kit-xl Mini-split Bib Xl Cleaning Kit

Product Description

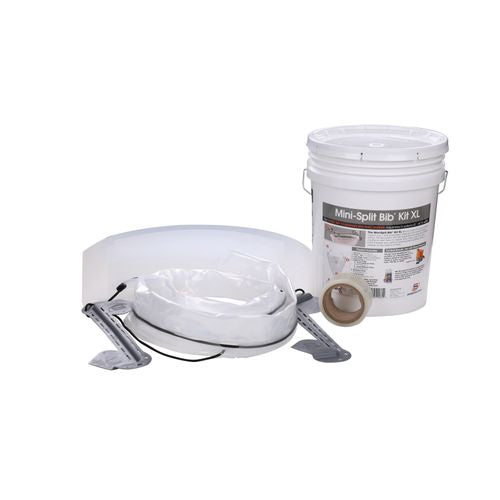

The DIVERSITECH msb-kit-xl is a complete coil-cleaning bib kit designed for ductless mini-split indoor air handlers ranging from 45 to 60 inches in width. The kit contains a cleaning bib, adjustable mounting brackets, one roll of protective tape, three deflector plates, and a 5-gallon bucket. Together these components channel wash water away from walls, electrical components, and surrounding surfaces, directing all runoff into the included bucket for safe, contained disposal. HVAC technicians use this kit to clean evaporator coils, blower wheels, and related components on larger residential and commercial ductless units.

This kit targets larger-format ductless mini-split indoor units commonly found in commercial spaces, multi-zone residential installations, and any setting where unit widths fall between 45 and 60 inches. The adjustable mounting brackets accommodate variation in cabinet profiles without requiring additional hardware. The deflector plates help redirect water flow toward the bib and into the bucket, keeping the surrounding wall and floor dry throughout the cleaning process. The kit is especially useful in occupied spaces where water containment is critical during routine coil maintenance.

Key Features

• Fits ductless mini-split indoor units from 45 to 60 inches wide
• Includes bib, adjustable mounting brackets, protective tape, three deflector plates, and a 5-gallon collection bucket
• Directs wash water away from walls and electrical components into a contained bucket
• Adjustable brackets accommodate varying indoor unit cabinet profiles
• Suited for cleaning evaporator coils and blower wheels on larger commercial-grade ductless units

Compatibility

Designed for ductless mini-split indoor air handlers with unit widths between 45 and 60 inches, covering larger residential and commercial installations.

Installation Notes

Installation of this cleaning kit is performed by licensed HVAC technicians as part of routine coil maintenance. Power to the mini-split system must be shut off at the disconnect or breaker before attaching the bib and brackets to the indoor unit. Secure all deflector plates and confirm the bib is fully seated before introducing any cleaning solution or water. Dispose of collected wash water in accordance with local regulations, as it may contain mold, debris, or cleaning-agent residue.

Technical Specifications

• Compatible Unit Width: 45 to 60 inches
• Collection Bucket Capacity: 5 gallons
• Deflector Plates Included: 3
• Protective Tape Rolls Included: 1

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: msb-kit-xl
