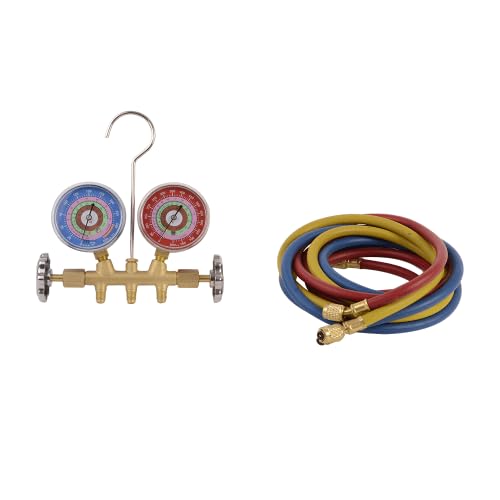

Diversitech MG-1 Manifold Gauge with 5 ft. Hose Set

Product Description

The DiversiTech MG-1 manifold gauge provides technicians with a precision diagnostic and monitoring analog gauge set complete with hoses. It is suitable for both ducted and ductless systems and provides detailed gauge readings in PSI °F. The manifold ports (SAE) are 1/4 in.

• Precision diagnostic and monitoring
• Analog gauge set
• Includes hoses
• Suitable for ducted and ductless systems

Product Highlights

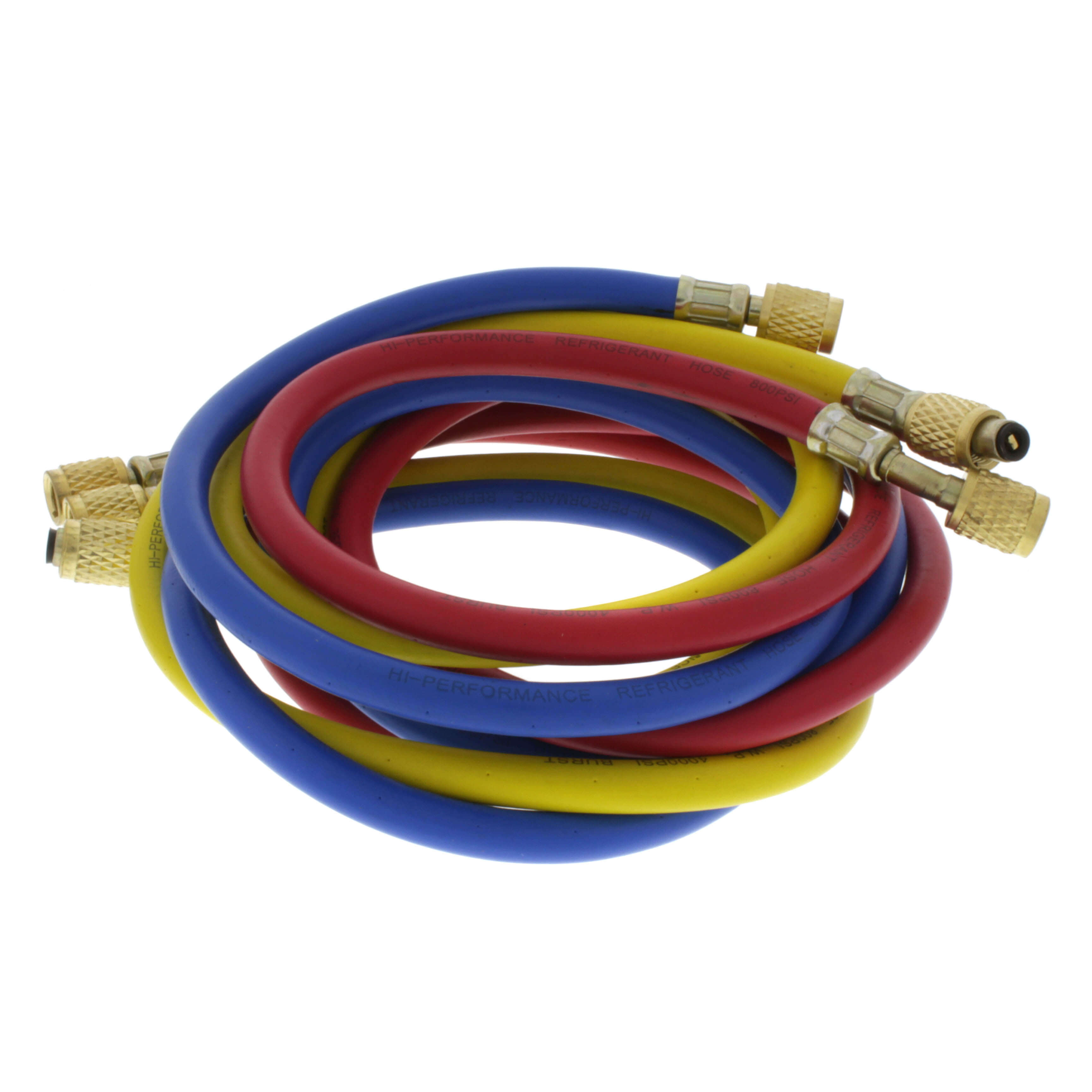

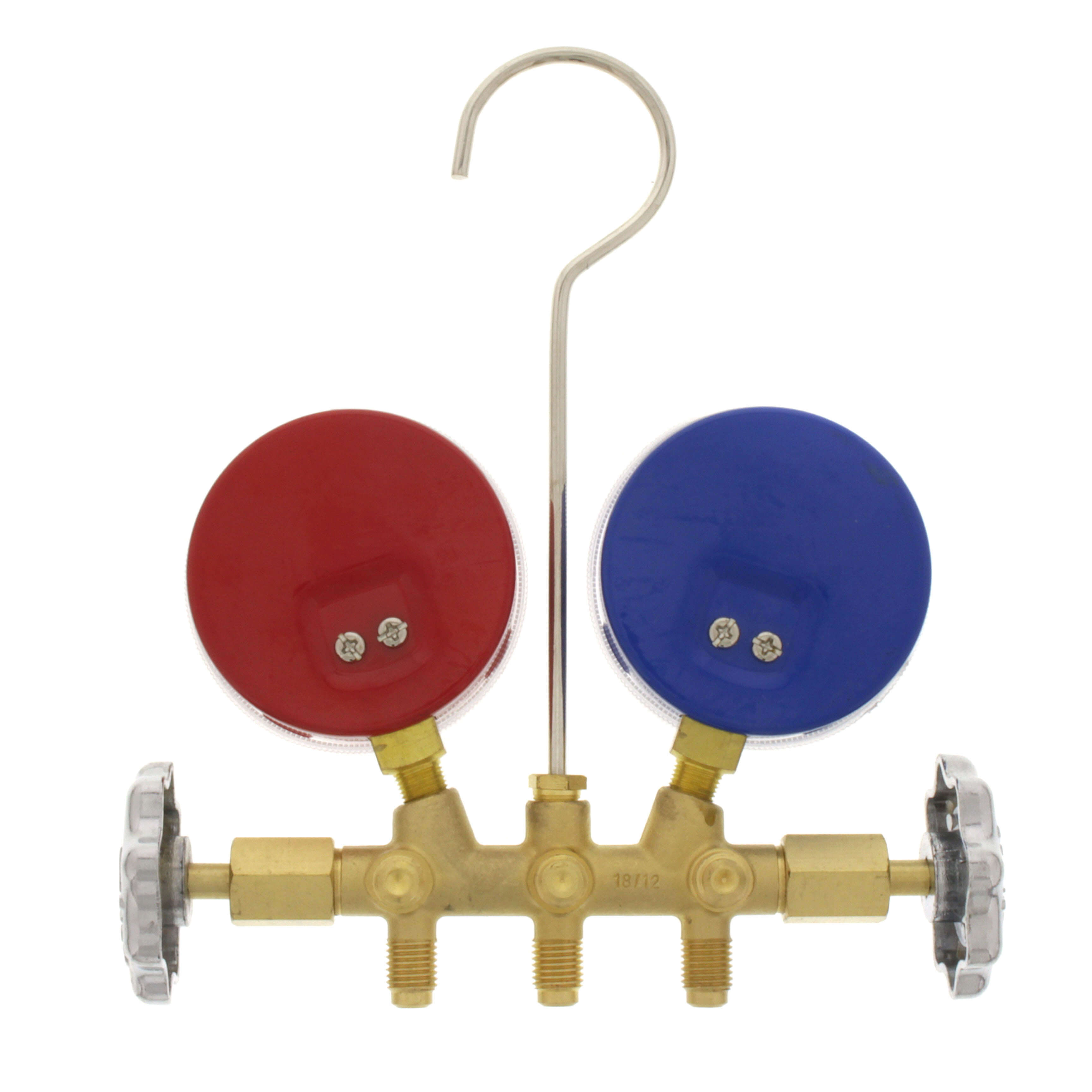

This manifold gauge is easy to install and highly durable. It includes a 2 valve brass manifold and a 5’ long high pressure hose set.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: MG-1
• Country of Origin: China

Technical Specifications

• Refrigerants: R-410A, R-22, R-407C
• Product Type: HVAC Tool
• Gauge type: Analog
• Gauge Scale Units: PSI
• Gauge size: 2-1/2 in.
• Pressure Range High: 800 psi
• Pressure Range Low: -30 in. Hg to 300 - 500 psi
• Scale: °F
• Manifold Ports (SAE): 1/4 in.
• No. of Hoses: 2
• Ducted or Ductless: Both Ducted and Ductless
• Primary Depth (inches): 10.85
• Primary Width (inches): 9.05
• Primary Height (inches): 4.4
• Material: Brass
