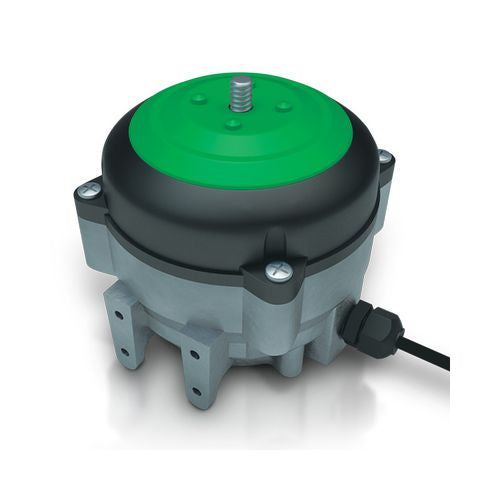

DIVERSITECH MD5411S Variable Watt ECM Motor Unit Bearing

Product Description

The DIVERSITECH MD5411S is a variable watt ECM motor unit bearing suitable for refrigeration applications. This motor operates on either ninety or two hundred forty volts, or one hundred fifteen or two hundred thirty volts. It features a reversible rotation and is designed for continuous running duty. The motor is a standard single-speed unit with a speed of one thousand five hundred fifty RPM. It is enclosed in a totally enclosed air over (TEAO) casing and equipped with a ball bearing for improved durability.

• ECM (Electronically Commutated Motor) type.
• Single-speed operation at one thousand five hundred fifty RPM.
• Reversible rotation capability.

Product Highlights

This motor is CSA certified, CSA listed, and UL recognized for safety and performance.

Product Information

Standard Information

• Brand: DIVERSITECH
• Country of Origin: MEX

Technical Specifications

• Motor Type: ECM (Electronically Commutated Motor)
• Watts: 4-20
• Voltage: 90/240 VAC
• Number of Speeds: 1 (Single)
• Rotation: Reversible
• RPM: 1,550
• Bearing Type: Ball
• Duty: (S1) Continuous Running Duty
• Motor Enclosure: Totally Enclosed Air Over (TEAO)
• Mounting Type: Round
• Shaft Diameter: 0.25 inches
• Phase: Single
• Insulation Class: B
• Cycle/Hertz: 60 Hz
• Approvals: CSA Certified; CSA Listed; UL Recognized
• Weight: 3 lbs
• Height: 4 inches
• Length: 5.75 inches
• Width: 6.5 inches
• Cubic Measurement: 0.0451
