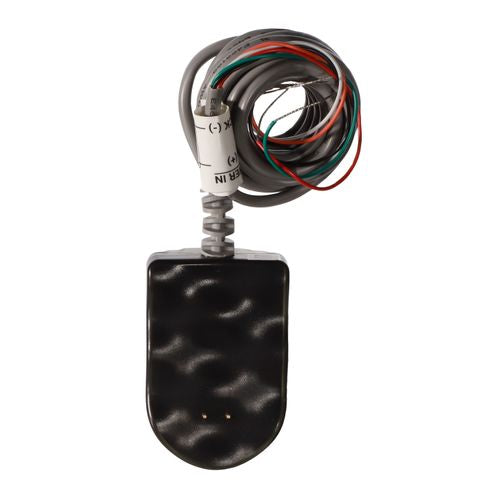

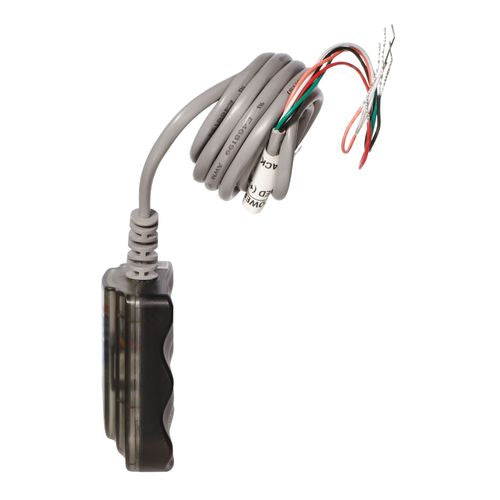

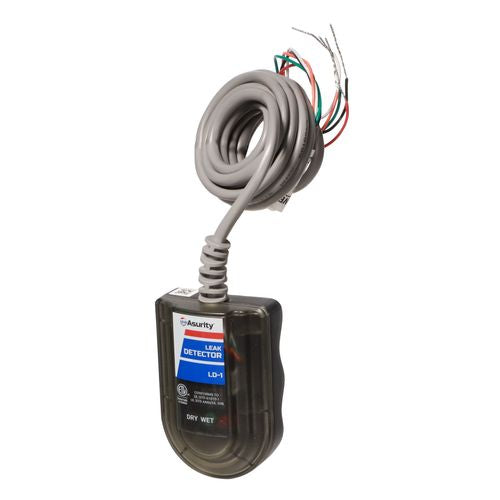

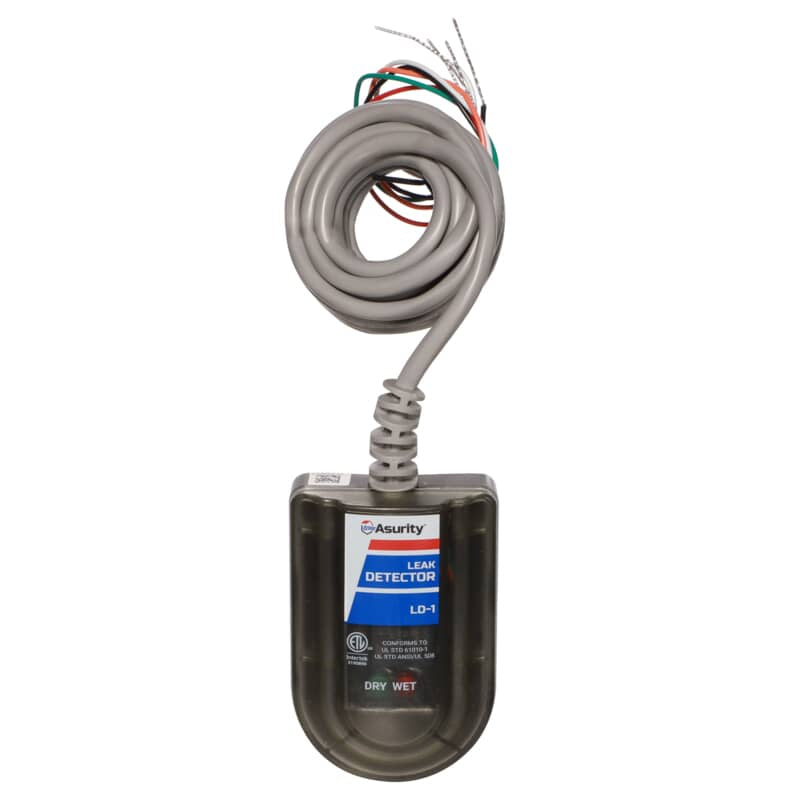

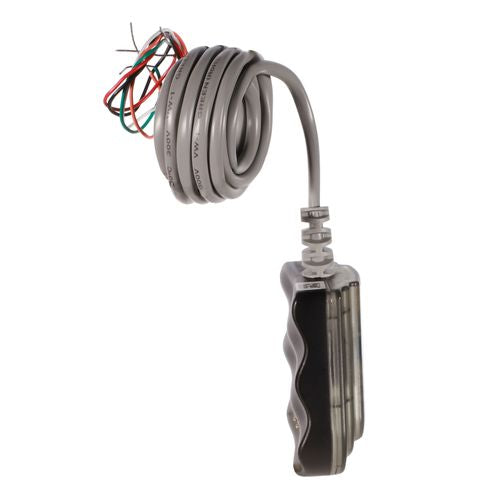

Diversitech LD-1 Leak Detector

Product Description

The DiversiTech LD-1 leak detector is a genuine OEM replacement part designed to prevent flooding and damage from condensate or drain leaks. It turns off the HVAC system upon detecting moisture. LED indicators confirm system status. It can be easily placed on the floor to alert homeowners or service personnel to potential moisture problems.

• Detects moisture due to condensate or drain leaks
• Turns HVAC system off when detected
• LED indicators confirm system status

Product Highlights

Prevents flooding and damage from leaks by automatically shutting off the HVAC system and providing visual alerts.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: LD-1
• Country of Origin: US

Technical Specifications

• Manufacturer: DiversiTech
• Manufacturer #: LD-1
• Parts Town #: DIVLD-1
• Units: Each
• Product Type: Pan-Mounted
• Application: Flood Detection Switch
• UL Listed: No
• Alert Indicator: Visual
• Electrical Classification: Class 1
• Electrical Connection Type: Independently Powered
• Plenum Rated: Yes
• Rated Current (A): 15
• Rated Voltage: 24VAC
• Switch Mode: Normally open (N/O)
• Test Switch / Button: Yes
• Ducted or Ductless: Ducted
• Switch Type: SPDT
• Primary Depth (inches): 1.7
• Primary Width (inches): 3.42
• Primary Height (inches): 9
