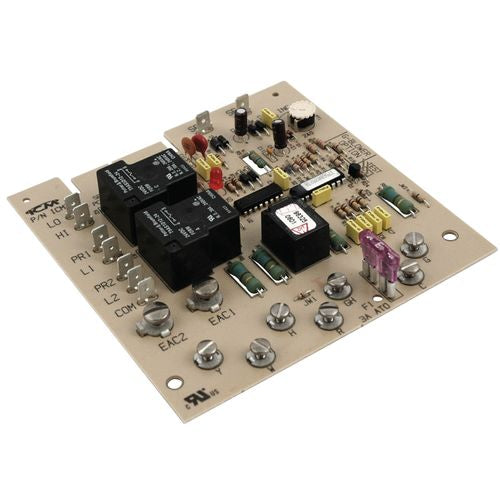

Diversitech ICM275 fan blower control

Product Description

The DIVERSITECH ICM275 is a fan blower control and a replacement for OEM models including Carrier CES0110019 and HH84AA-x series control boards. It features integral short cycle protection and purges ducts of residual air. The control has a fixed heat ON delay of 60 seconds.

• Replacement for OEM models including Carrier CES0110019 and HH84AA-x series control boards
• Microprocessor-based fan blower control
• Heavy-duty heat relay

Product Highlights

The ICM275 ensures efficient and reliable operation of fan blowers in HVAC systems, offering precise control and protection.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: ICM275

Technical Specifications

• Volts: 18 - 30 VAC
• Ducted or Ductless: Ducted
• Input Voltage: 18-30 VAC
• Contact Ratings (High): 20 amps @ 240 VAC
• Contact Ratings (Low): 10 amps @ 240 VAC
• Heat ON Delay: 60 seconds fixed
• Heat OFF Delay: 60-240 seconds adjustable
• Cool OFF Delay: 90 seconds fixed
