Product Description

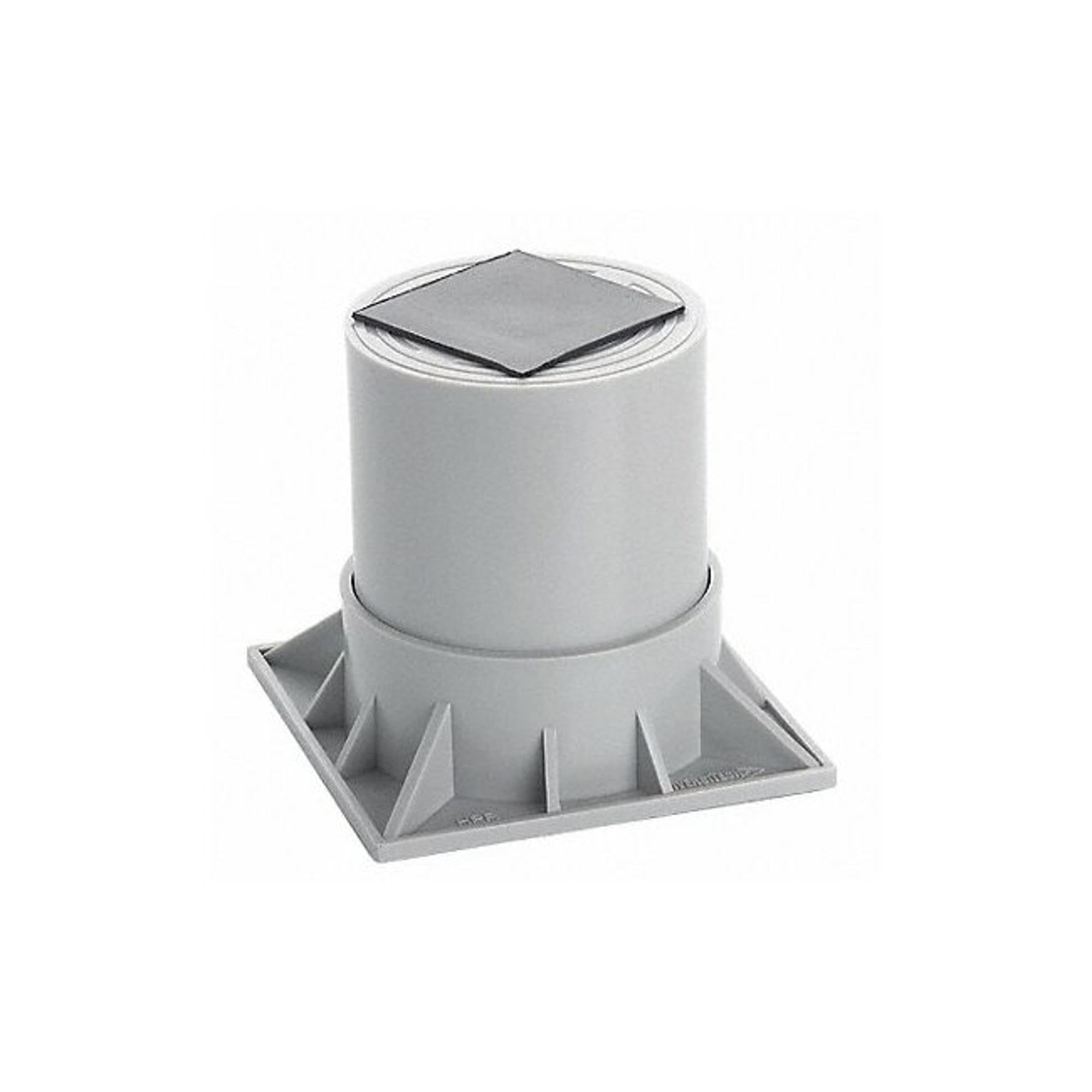

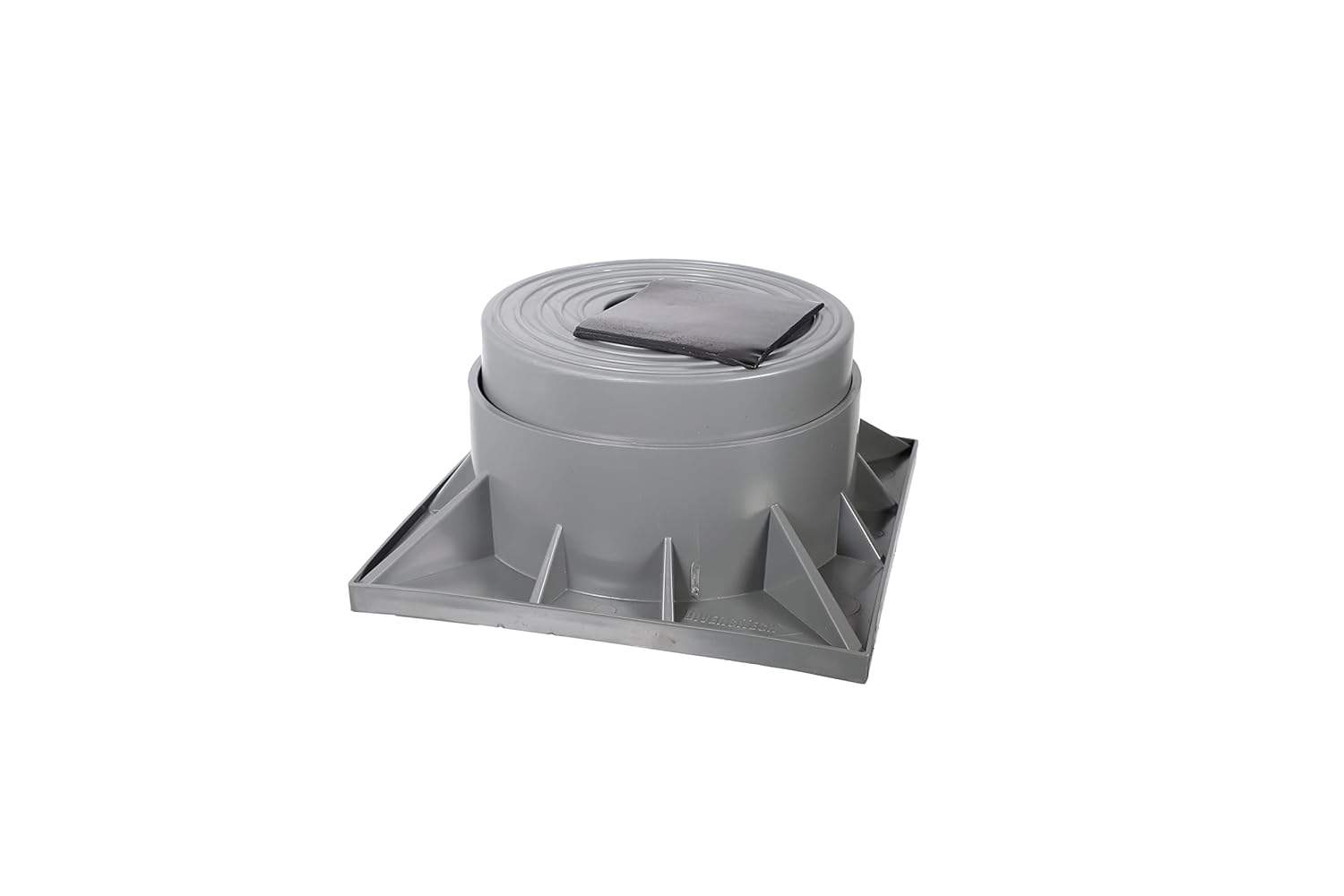

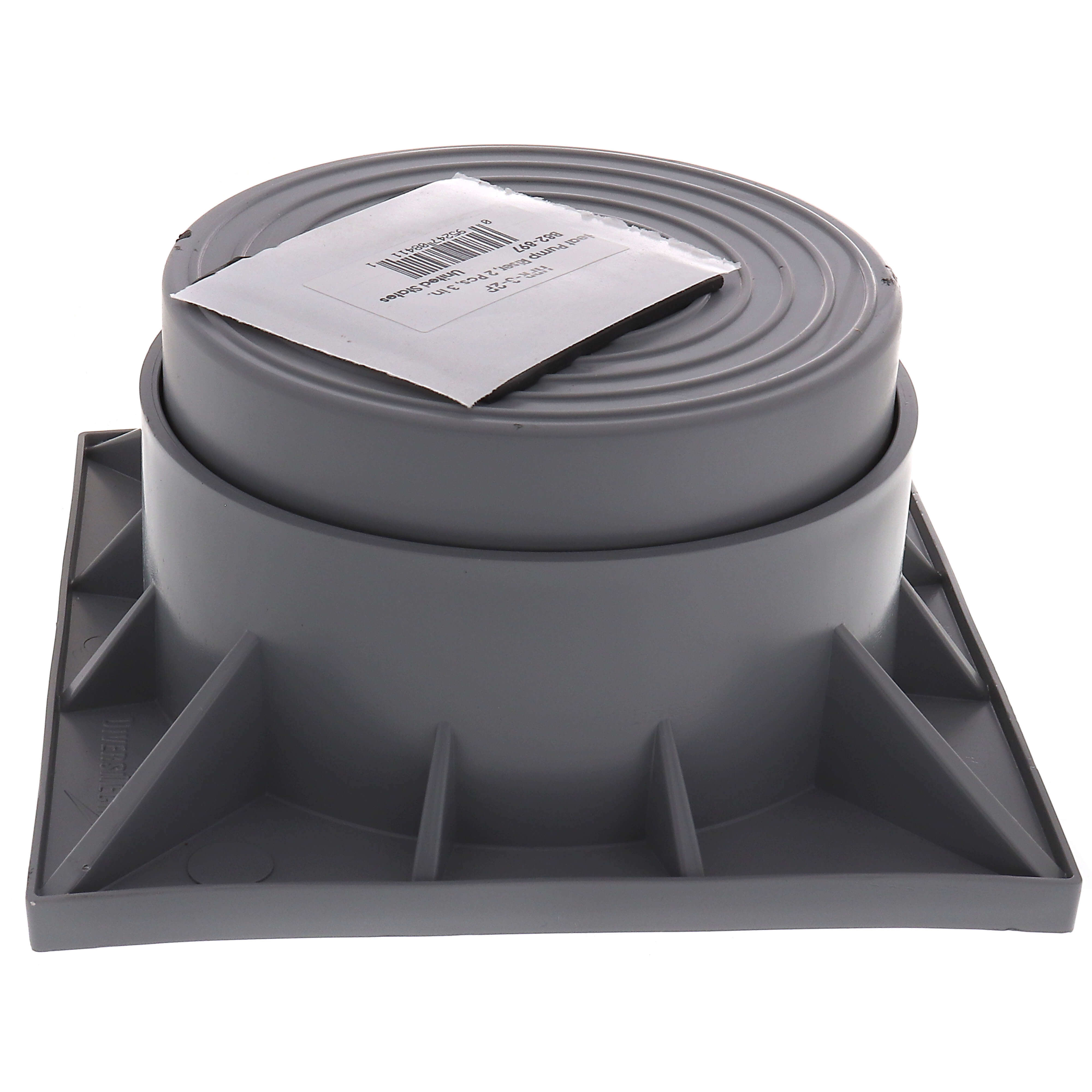

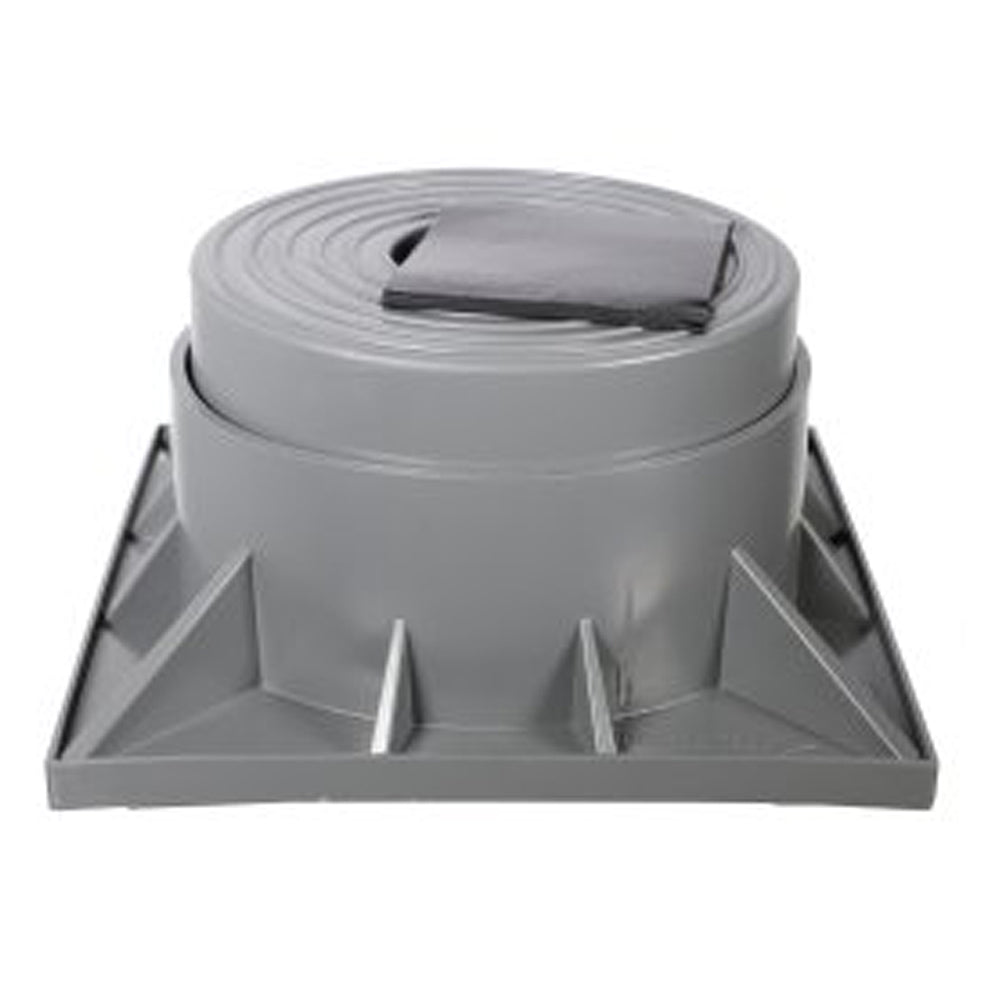

The DIVERSITECH hpr-3-2p is a two-piece, gray heat pump riser that elevates condensers, heat pumps, and air handlers 3 inches above grade or slab level. Rated for a load capacity of 500 pounds, it provides a stable, code-friendly base for outdoor HVAC equipment. The two-piece design simplifies installation around existing refrigerant lines and electrical connections. Mounted using butyl mastic, the riser stays anchored on concrete pads, pavers, or rooftop installations. HVAC technicians install this riser as part of a standard commissioning or replacement job, particularly in climates where seasonal snowfall or ice buildup is a concern.
Heat pump risers are primarily used to lift outdoor units above the snow line, reducing the risk of coil damage caused by ice accumulation during condensate drainage in heating mode. The hpr-3-2p suits residential and light commercial ducted systems where condensers or air handlers need modest elevation. The 3-inch lift is a commonly specified height in low-to-moderate snowfall regions. Its gray color blends with standard concrete and aggregate pads. This riser supports heat pumps and air handlers in both new installations and retrofit applications where the existing pad does not provide adequate elevation.
Key Features
- 3-inch elevation lifts equipment above typical condensate ice accumulation
- Two-piece construction allows installation without disconnecting refrigerant lines
- 500 lb load capacity supports standard residential and light commercial outdoor units

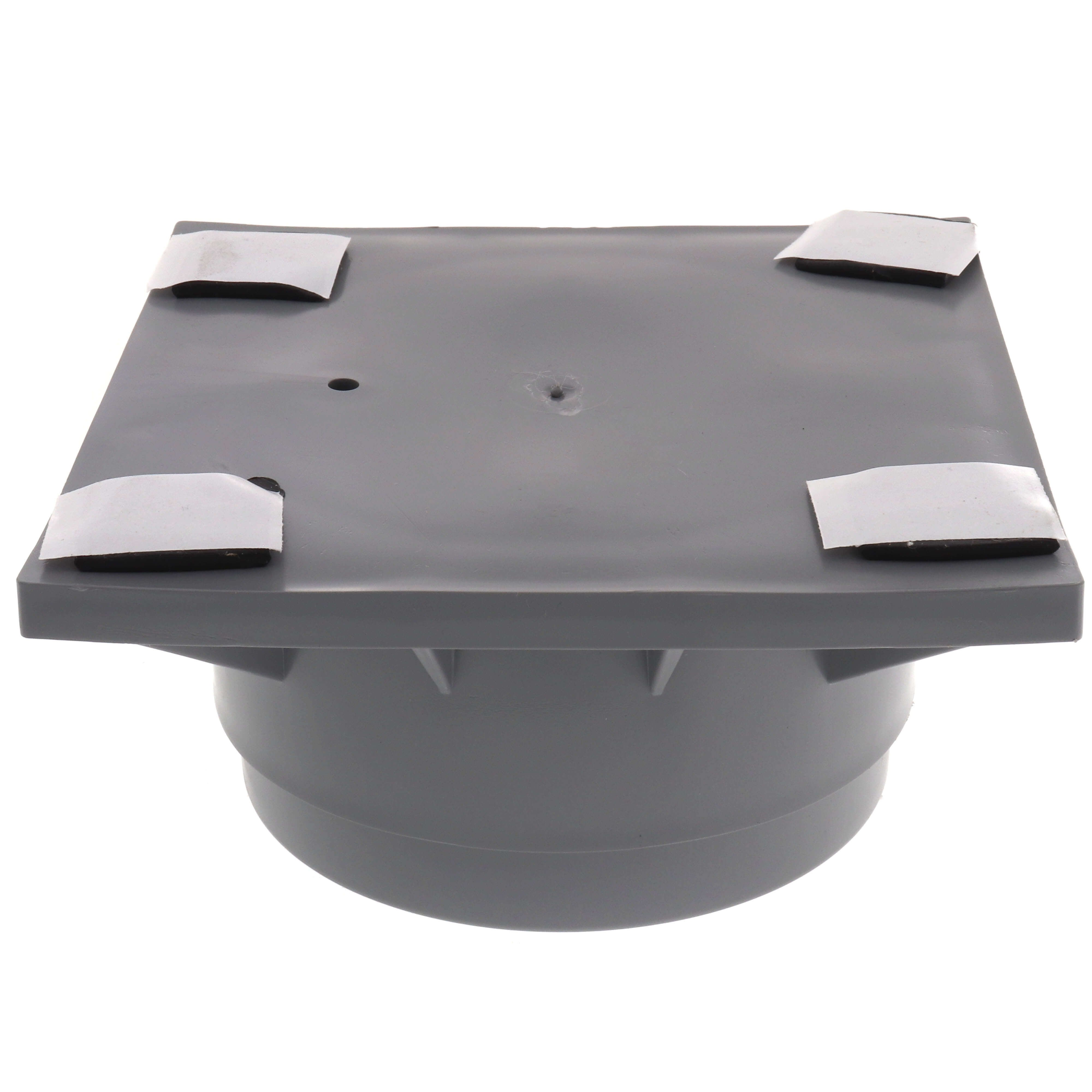

- Butyl mastic mounting method provides secure adhesion to concrete and paver surfaces
- Gray color finish blends with standard concrete equipment pads
- Compatible with ducted heat pump and air handler applications
Compatibility
Designed as an OEM-style support riser for ducted residential and light commercial condensers, heat pumps, and air handlers requiring 3 inches of elevation.
Installation Notes
Installation is performed by a licensed HVAC technician. Shut off all power to the unit at the disconnect and thermostat before lifting or repositioning equipment. Apply butyl mastic to the base contact surface per manufacturer guidance to ensure a secure, stable mount. Verify the pad or surface is level before placing the riser to prevent unit vibration or refrigerant line stress during operation.
Technical Specifications
-
Size: 3 inches
-
Color: Gray
-
Load Capacity: 500 pounds
-
Mounting Method: Butyl Mastic
-
Application: Heat Pump, Air Handler Support
-
Design: Two Piece
-
System Type: Ducted
Standard Information
-
Brand: DIVERSITECH
-
Manufacturer Part Number: hpr-3-2p
