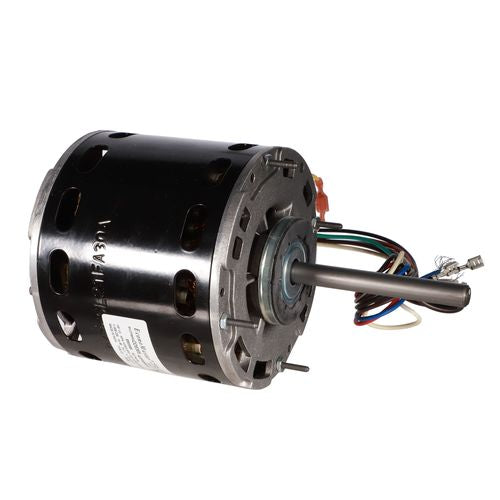

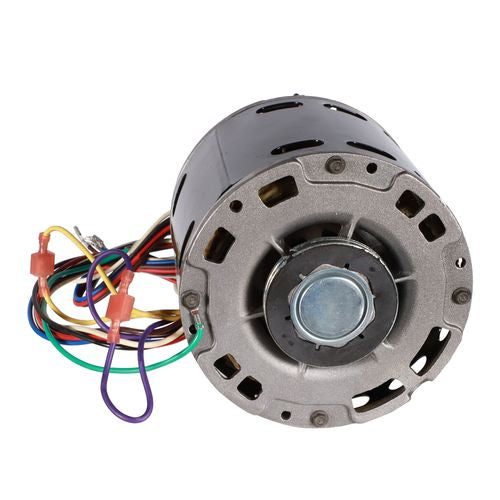

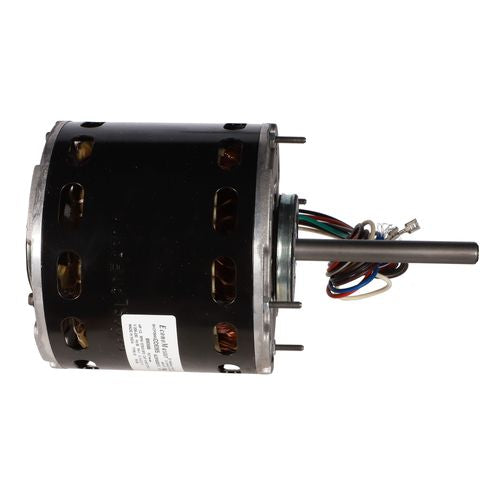

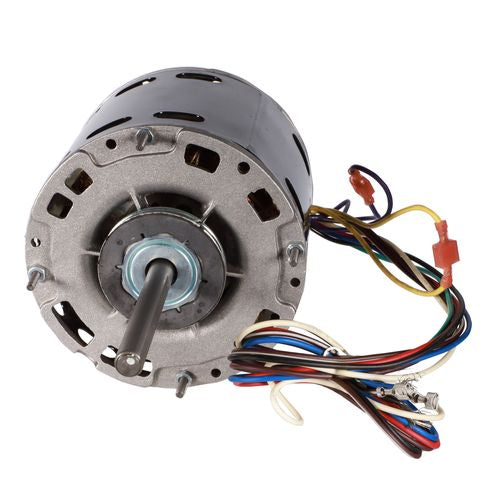

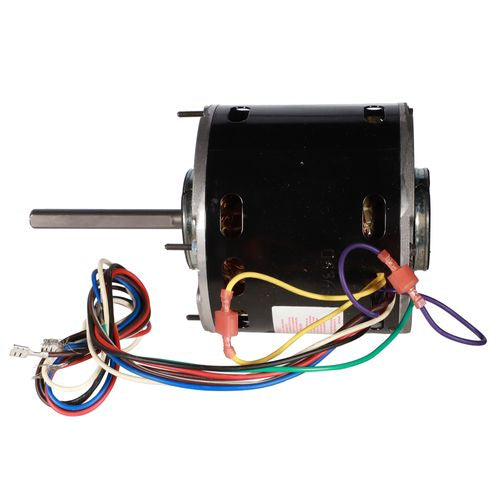

Diversitech EM3588 Economaster Direct Drive Blower Motor 1/2 HP

Product Description

The DIVERSITECH EM3588 Economaster Direct Drive Blower Motor is a 1/2 HP motor designed for ducted applications. Operating at 208-230V and 60 Hz, it features a PSC motor type, reversible rotation, and three speeds at 1075 RPM. This motor is suitable for fan and blower motor applications.

• Auto protector
• Energy efficient
• 25 in L leads

Product Highlights

The DIVERSITECH EM3588 is an efficient direct drive blower motor with multiple speeds and reversible rotation.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: EM3588

Technical Specifications

• Volts: 208 - 230
• Material: Steel
• Hertz: 60
• Horsepower: 1/2 hp
• Amps: 1.6_3.4
• Bearing: Ball
• Motor Type: PSC
• Mounting: Studs
• Rotation: Reversible
• RPM: 1075
• Speeds: 3
• Ducted or Ductless: Ducted
• phases: Single
• Primary Depth (inches): 14
• Primary Width (inches): 7
• Primary Height (inches): 7
• Amperage Rating: 3.6/2.3/1.6 A
• Application Type: Fan & Blower Motors
• Bearing Type: Sleeve
• Enclosure Type: Open
• Frame: 48Y
• Frequency Rating: 60 Hz
• Insulation Class: Class B
• Mounting Type: Band/Ring/Stud
• Number of Speeds: 3
• Phase: 1
• Shaft Size: 1/4 in Dia x 4 in L
• Speed: 1075 rpm
• Temperature Rating: 40 deg C Ambient
• Voltage Rating: 208 to 230 VAC
