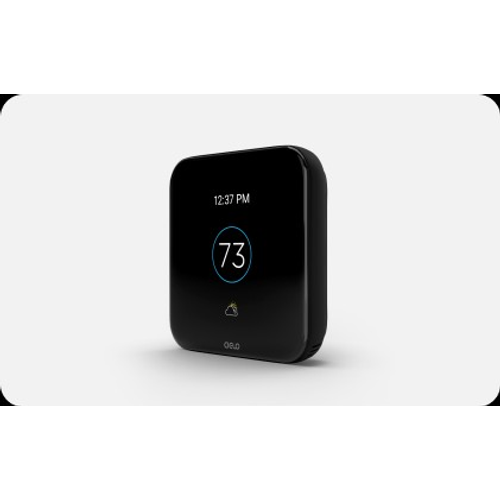

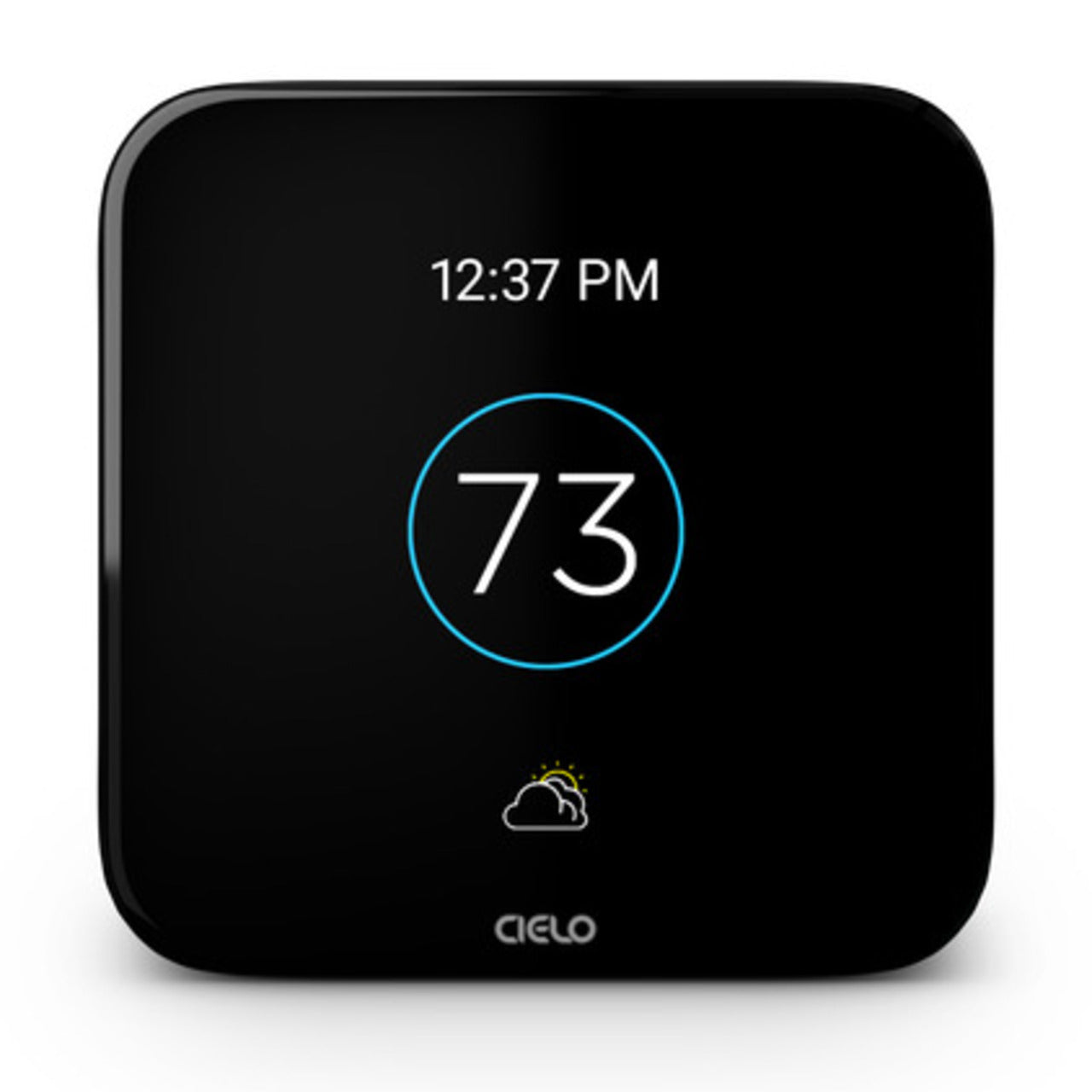

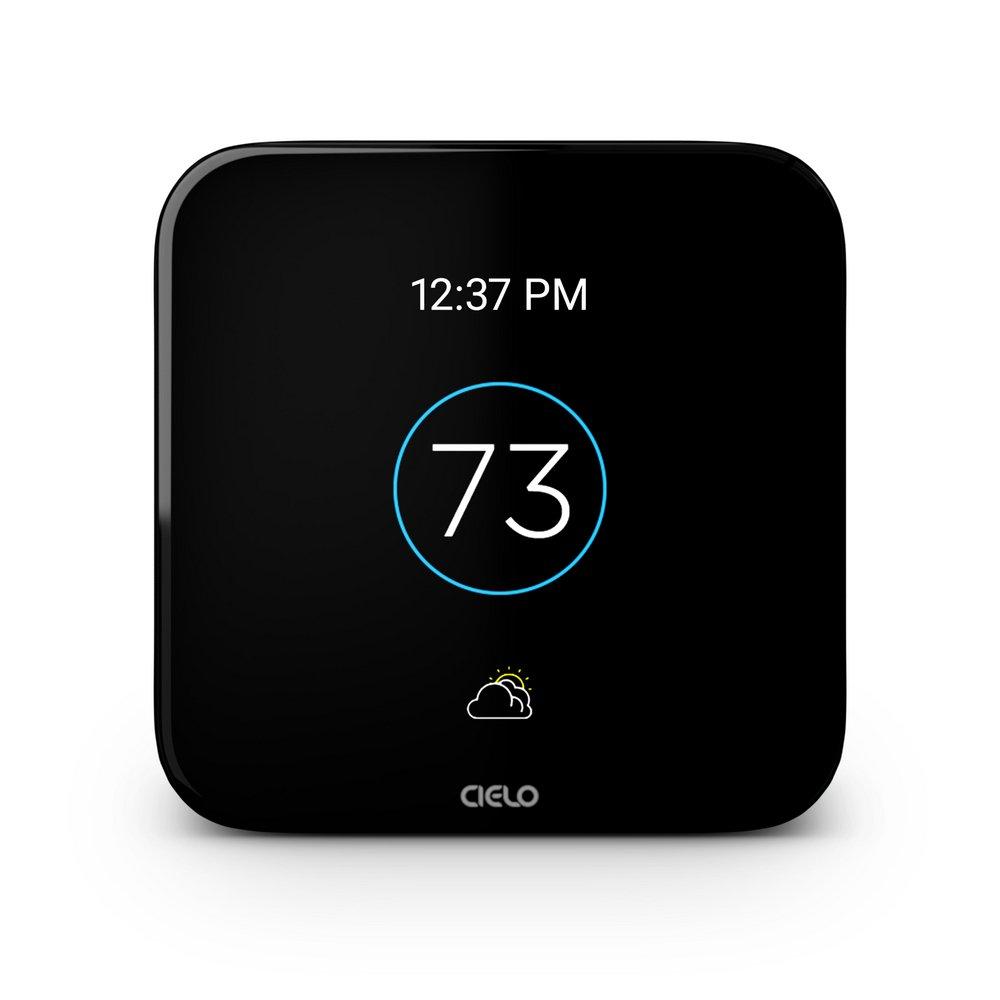

Diversitech ED101WA Cielo Breez Edge Pro Smart Thermostat

Product Description

The Diversitech ED101WA Cielo Breez Edge Pro is a smart thermostat for mini-split, window, and portable ACs and heat pumps. Equipped with a touch screen color display, it offers features including Comfy Max, Comfy Mode, geofencing, weekly schedules, and PIN Lock. Control your AC from anywhere using the Cielo Home app.

• Control mini-split, window, or portable AC from anywhere using the Cielo Home app.
• Features a touch screen color display for an intuitive user experience.
• Offers energy monitoring to track and optimize consumption.

Product Highlights

The Cielo Breez Edge Pro provides advanced smart controls and custom scheduling for optimal comfort and energy savings.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: ED101WA
• Country of Origin: CHN

Technical Specifications

• Display: 3.5 Sq. Inch Touch LCD
• For Use With: PTAC|Mini-splits
• IAQ Features: Humidity Control|IAQ fan mode
• Power Supply: Hardwire Only (24V) or 5V-DC from wall Adapter
• Product Height: 3.9 in.
• Product Length: 1 in.
• Product Width: 3.9 in.
• Programming Interface: WiFi
• Scheduling: 7 Day|5/1/1 Day|NP
• Stage detail: Not Applicable
• Stages: Variable
• Primary UoM: Each
• Primary Depth (inches): 6.1
• Primary Width (inches): 1.89
• Primary Height (inches): 7.1
• Volts DC: 5
• Type: WiFi
• AMP: 0.03
• Brand Model Compatibility: Cielo
• Collection: Cielo
• Color Finish Category: Blacks
• Color Finish Name: Black
• Depth: 1
• Diameter: 3-9/10
• Display Type: Digital
• Height: 3-9/10
• Power Source: Hardwired
• Programmability: Programmable
• Smart Home Enabled: Yes
• Touch Screen: Yes
• UPC: 853937007143
• Volts: 24V
• 750mV Compatible: false
• Accuracy: +/- 1%
• Ambient Temperature Range: 50°F to 90°F (10°C to 32.22°C)
• Auto Changeover: true
• Backlit: false
• Batteries Included: false
• Battery Backup: false
• Built In Wi-Fi: true
• Change/Check Reminders: true
• Daylight Savings Time Ready: true
• Differential Temperature: 3°F
• Digital-Non Programmable: false
• Digital-Programmable: true
• Displays Outdoor Temperature: true
• Display Options: 3.5 Sq. Inch Touch LCD
• Display Size: 2.5" x 1.25"
• Dual Transformer Compatible: false
• Electrical Connection Type: 24 V
• Electrical Rating: 24 V
• Energy Star Rated: true
• Fan Switching: true
• Heat Pump Compatible: false
• Hinged: false
• Humidification: false
• Indoor Remote Sensor: true
• Language: Multi
• Low Battery Indicator: false
• Manual: true
• Operating Temperature Range: 23°F - 122°F
• Power Method: Hardwired
• Programmable Fan: false
• Prop 65: false
• Removable Interface: true
• Sensing Element: true
• System Switching: true
• Temperature Range: 50°F to 90°F (10°C to 32.22°C)
• Terminal Designations: Rc, C
• Touchscreen: true
• Vacation Mode: false
• Voltage: 5 VAC
• Works with Google Assistant: true
• Works with Rheem EcoNet: false
• Mounting Type: Wall
• Length: 6.1
• Width: 1.89
