Diversitech EC30224 Definite Purpose Contactor 30A 2P 24V

Product Description

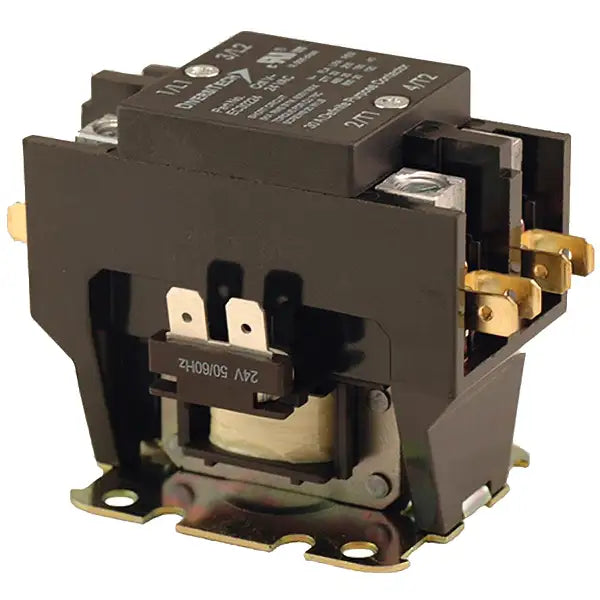

The DIVERSITECH EC30224 is a definite purpose contactor rated at 30 amps, 2 poles, with a 24 volt AC coil. It is designed for switching loads in HVAC and refrigeration equipment where a dedicated-application contactor is required. The foot-mount, small-frame construction keeps the unit compact enough for tight electrical enclosures. Quick-connect terminals simplify field wiring and reduce installation time. Licensed electricians and HVAC technicians install this type of contactor as part of compressor, condenser fan, or other definite-purpose load circuits. UL listed for both the US and Canada.

This contactor is suited for residential and light commercial HVAC systems, including central air conditioning condensing units and refrigeration equipment that require a low-voltage control signal to switch higher-amperage load circuits. The 24 volt AC coil integrates directly with standard HVAC control wiring. Its small-frame footprint makes it a practical fit in packaged units and split-system condenser panels where panel space is limited.

Key Features

• 30 amp, 2-pole configuration handles standard compressor and condenser fan load circuits
• 24 volt AC coil compatible with standard HVAC low-voltage control systems
• Quick-connect terminals for fast, reliable field wiring
• Foot-mount design for secure panel or chassis mounting
• Small-frame construction fits space-constrained enclosures
• UL listed for US and Canada

Compatibility

Designed as an OEM-style replacement definite purpose contactor for residential and light commercial HVAC and refrigeration equipment using a 24 volt AC coil and 30 amp, 2-pole configuration.

Installation Notes

Installation should be performed by a licensed HVAC technician or electrician. Disconnect and lock out all power to the unit before removing or installing any contactor. Verify that load amperage and coil voltage match the circuit requirements before energizing. Follow applicable NEC guidelines for overcurrent protection and wiring methods when replacing or installing this component.

Technical Specifications

• Coil Voltage: 24 volts AC
• Current Rating: 30 amps
• Number of Poles: 2
• Width: 2.5 inches
• Depth: 3.75 inches
• Height: 2.75 inches
• Weight: 0.68 pounds
• Mounting Style: Foot Mount
• Frame Size: Small Frame
• Certifications: UL Listed (US and Canada)

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: EC30224
