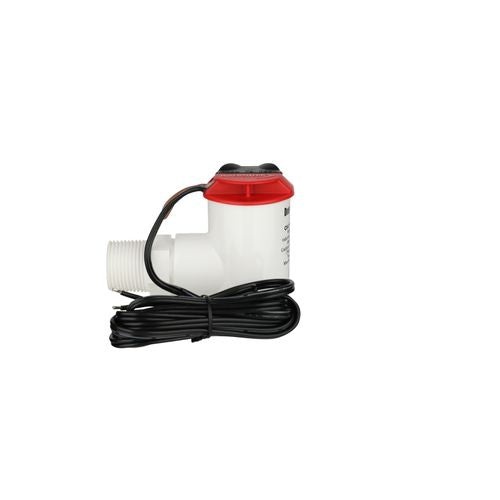

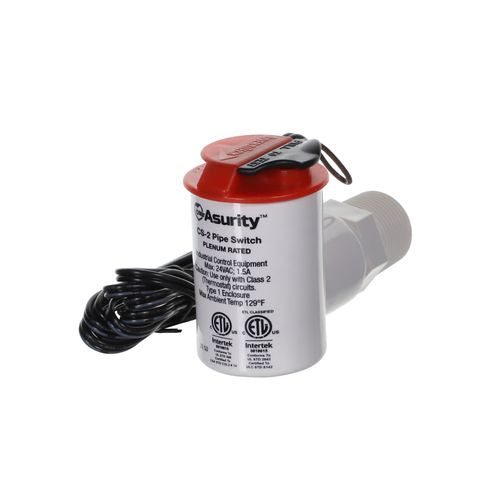

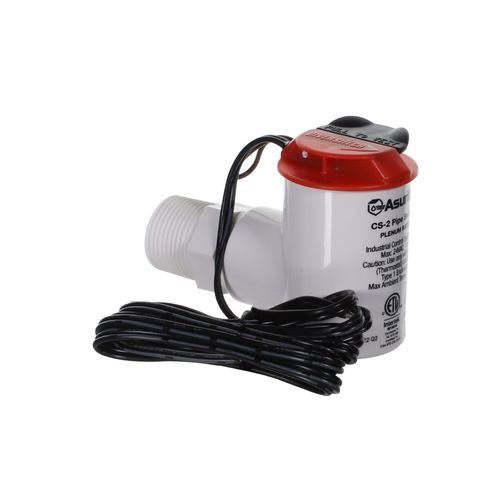

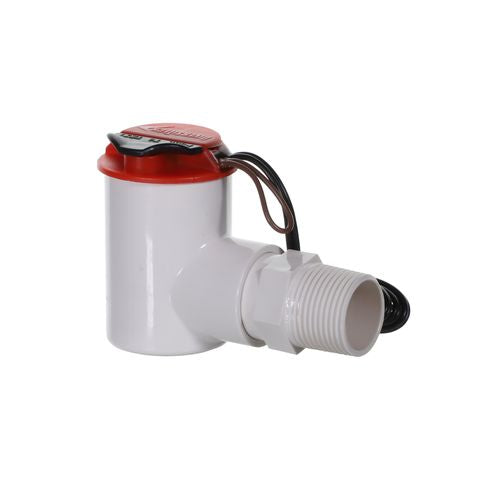

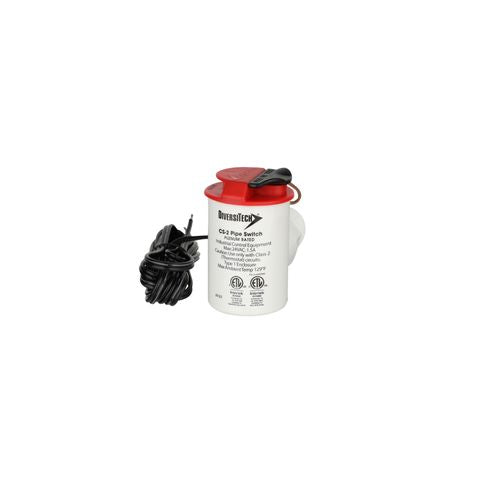

DIVERSITECH DT-CS-2 Elbow Condensate Switch

Product Description

The DIVERSITECH DT-CS-2 Elbow Condensate Switch is essential for preventing flooding in drain pans. This pan-mounted switch is applicable for both standard and plenum-rated setups, perfect for primary and auxiliary lines. The switch includes a visual alert that lights up when the condensate line is blocked, ensuring quick responses to potential issues. A pull-to-test lever confirms proper installation. It operates in ducted systems and features a normally closed (N/C) switch mode, ensuring reliability. Key aspects include:

• Visual LED alert for line blockage
• Pull-to-test feature for testing installation
• Designed for drain pan flood prevention

Product Highlights

This condensate switch is UL listed and offers built-in surge protection. It runs on a 24VAC power supply with a current rating of 1.5A, making it suitable for various HVAC applications.

Product Information

Standard Information

• Type: Pan-Mounted Switch
• Application: Flood Prevention for Drain Pans

Technical Specifications

• Electrical Classification: Class 2
• Electrical Connection Type: 2-Wire
• Rated Current: 1.5A
• Rated Voltage: 24VAC
• Switch Mode: Normally Closed (N/C)
• Test Switch/Button: Yes
• Ducted or Ductless: Ducted
• Weight: 0.35 lbs
• Dimensions: 8.23 inches × 5.43 inches × 1.97 inches
