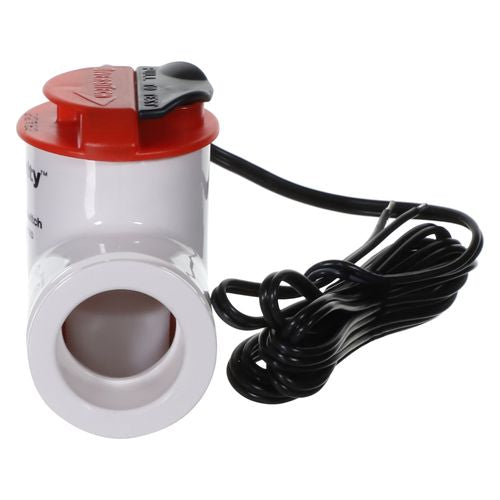

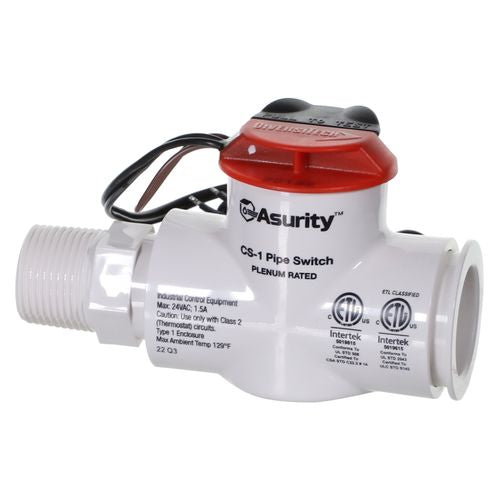

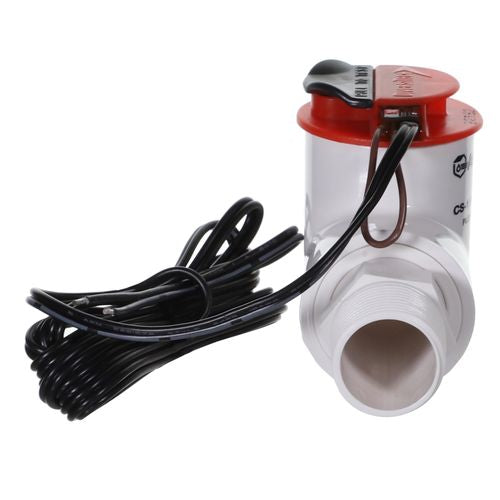

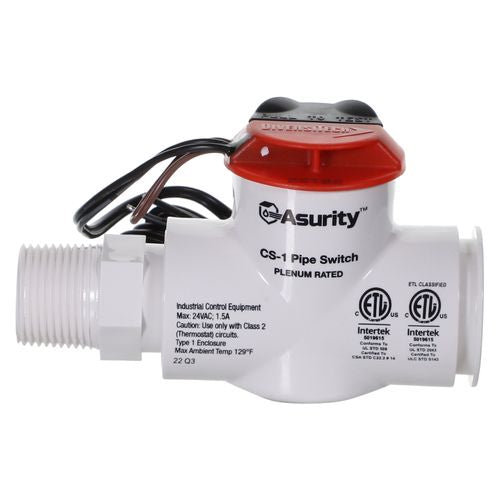

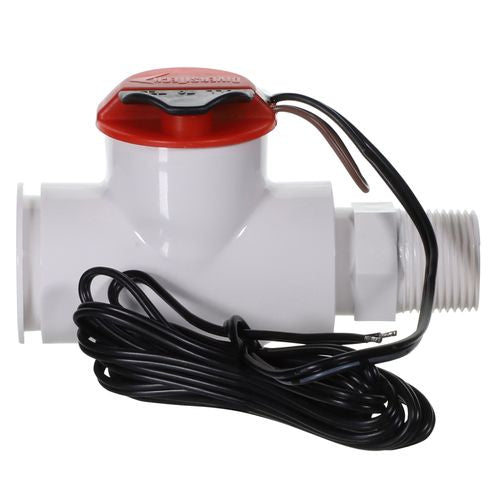

DIVERSITECH DT-CS-1 Condensate Float Switch

Product Description

The DIVERSITECH DT-CS-1 is a reliable inline condensate float switch used in condensate drain lines. This switch works well for both standard and plenum-rated installations, helping in primary or auxiliary lines. It includes an LED indicator that shows visual alerts for blockages in the condensate line. The built-in surge protection increases the longevity of the unit. If a blockage is detected, the switch will shut down the HVAC system to avoid water damage. Installation is made easy with its flexible options and a test button for quick checks.

• Equipped with an LED indicator for visual blockage alerts.
• Features surge protection to enhance operational life.
• Designed to shut down HVAC systems to prevent water damage from blocked condensate lines.

Product Highlights

This condensate float switch is essential for HVAC systems, providing safety by detecting clogs in drain lines.

Product Information

Standard Information

• Product Type: Inline
• Application: Condensate Drain Lines

Technical Specifications

• UL Listed: No
• Alert Indicator: Visual
• Electrical Classification: Class 2
• Electrical Connection Type: 2-Wire
• Plenum Rated: Yes
• Rated Current (A): 1.5
• Rated Voltage: 24VAC
• Switch Mode: Normally closed (N/C)
• Test Switch / Button: Yes
• Ducted or Ductless: Ducted
• Switch Type: SPST
• UPC: 095247148844
• Weight: 0.44 lbs
• Dimensions: 8.23 x 5.43 x 1.97 inches
