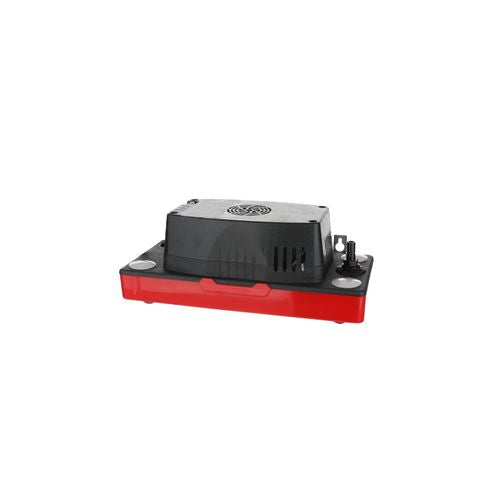

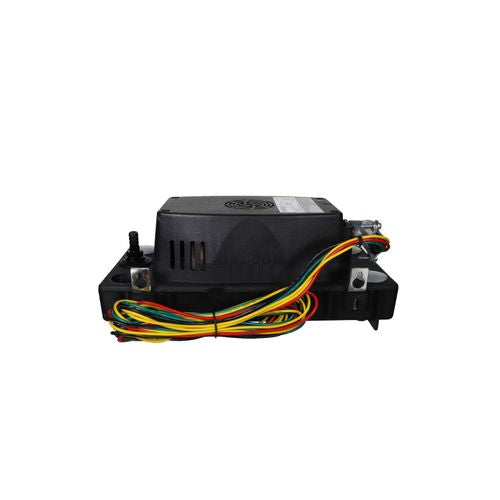

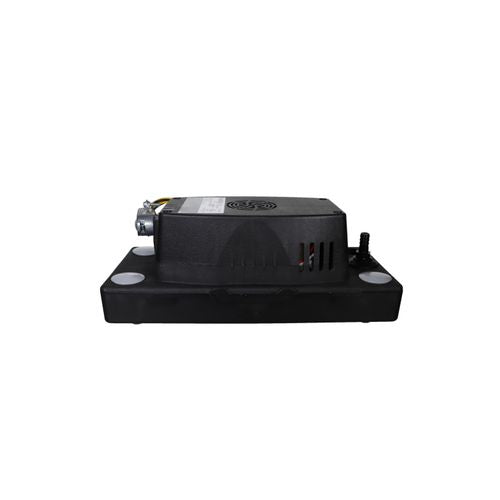

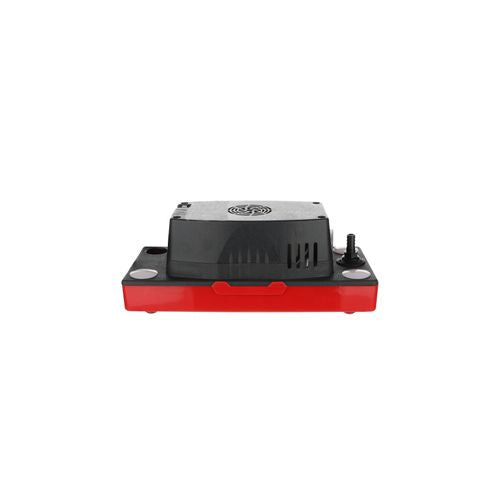

DIVERSITECH DT-CP-22LP Condensate Pump

Product Description

The DiversiTech DT-CP-22LP is a condensate pump suitable for HVAC/R systems. This unit is designed for tight spaces and provides reliable performance. It has a maximum lift of twenty-two feet and is equipped with four inlet holes. The pump features a removable check valve and an overflow switch for added safety. It operates quietly thanks to vibration-dampening feet and motor mounts. An LED display allows for easy monitoring of pump status.

• Maximum lift height of twenty-two feet.
• Compatible with condensate temperatures up to one hundred sixty degrees Fahrenheit.
• Quiet operation with vibration dampening features.

Product Highlights

This condensate pump is essential for effective HVAC/R applications.

Product Information

Standard Information

• Application: HVAC/R
• Voltage: 120 Volts

Technical Specifications

• Hertz: 60
• Horsepower: 1/30
• Maximum Flow Rate: 1.8 Gallons Per Minute
• Discharge Line Size: 3/8 Inches
• Number of Inlets: 4
• Tank Capacity: 1/3 Gallons
• Maximum Condensate Temperature: 160 Degrees Fahrenheit
• UL Listed: Yes
• Amps: 1.9
• Input Type: NEMA 5-15 Plug
• High Level Switch: Yes
• Floatless Sensor: No
• Self-Cleaning: No
• Variable Speed and Lift: No
• Sound Level dB(A) @ 3 Ft.: N/A
• Ducted or Ductless: Ducted
• Height: 4-3/8 Inches
• Cord Length: 4 Feet
