Diversitech dt-6-34-6 Wire Whip 3/4 in X 6 Ft Metal Fittings

Product Description

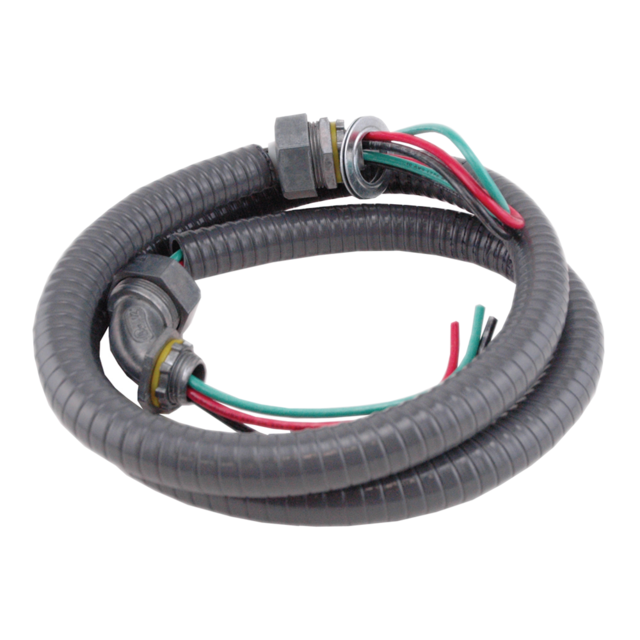

The DIVERSITECH dt-6-34-6 is a pre-assembled wire whip designed to provide a ready-made electrical connection between a disconnect box and HVAC equipment. The assembly consists of three stranded THHN conductors pulled through a 3/4-inch metal conduit with metallic fittings at each end. At 6 feet in length, it gives installers enough slack to make a clean, code-compliant run from a wall-mounted disconnect to a condensing unit or air handler. THHN insulation handles the heat and abrasion common in outdoor and equipment-room environments, and the metal fittings provide a secure, grounded termination at both ends.

This wire whip is used in residential and light commercial HVAC installations where local codes or job-site practice call for a metallic-conduit final connection to equipment. It is a direct OEM-style solution suited for installation on split-system condensing units, package units, and similar equipment requiring a field-wired power connection. Compatible models noted in product data include 50FC-A06A1M5-6W0A0, 50FCQA06J2M5-6W3C0, and 50FC-N07A2A5-2A0A0.

Key Features

• Three stranded THHN conductors for flexible routing and heat resistance
• 3/4-inch metal conduit construction with metallic fittings at both ends
• 6-foot length provides installation flexibility at the equipment connection point
• Pre-assembled whip reduces field labor and minimizes wiring errors
• Metallic fittings support proper equipment grounding continuity

Compatibility

Compatible models include 50FC-A06A1M5-6W0A0, 50FCQA06J2M5-6W3C0, and 50FC-N07A2A5-2A0A0. This wire whip is designed as an OEM-style replacement for HVAC equipment requiring a 3/4-inch metallic conduit whip connection.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician in accordance with NEC requirements and applicable local codes. Disconnect and lock out all power at the service panel before removing or connecting any wiring at the equipment. Verify that the conduit fittings are fully seated and secured at both the disconnect and equipment knockouts before restoring power. Do not bend or kink the conduit assembly beyond its rated flex radius.

Technical Specifications

• Conduit Size: 3/4 inches
• Length: 6 feet
• Number of Conductors: 3
• Wire Type: THHN
• Wire Construction: Stranded
• Fitting Type: Metallic Conduit Fittings
• UNSPSC Code: 39121300

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: dt-6-34-6
