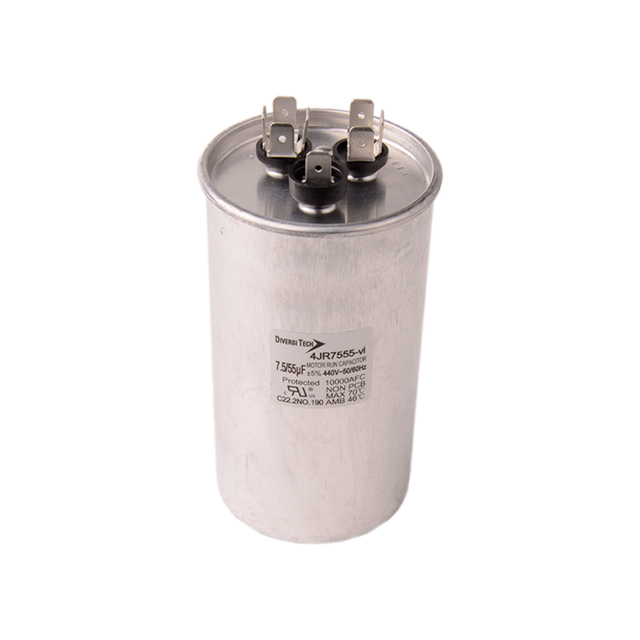

DIVERSITECH DT-4JR7555 Motor Run Capacitor 440 VAC Round 55+7.5 uF

Product Description

The DIVERSITECH DT-4JR7555 is a motor run capacitor designed for reliable use in HVAC systems. This round capacitor supports a dual capacitance of fifty-five microfarads and seven point five microfarads, with a voltage rating of four hundred forty VAC. It operates at a frequency of fifty to sixty Hz. This capacitor is oil-filled and non-PCB, meeting UL-810 safety standards, including a ten thousand AFC requirement.

• Guaranteed service life of ten thousand hours under normal conditions.
• Achieves a ninety-four percent operational life at sixty thousand hours.
• Equipped with one-quarter inch quick connect terminals for easy installation.

Product Highlights

The DIVERSITECH DT-4JR7555 is built to last and provides essential functionality for HVAC applications.

Product Information

Standard Information

• Country of Origin: China
• UPC: 095247083534

Technical Specifications

• Capacitance: 55 + 7.5 uF
• Voltage Rating: 440 VAC
• Shape: Round
• Rated Frequency: 50/60 Hz
• Capacitance Tolerance: +/-5%
• Permissible Temperature: -40°C to +70°C
• Withstanding Voltage Test (Between Terminals): Rated Voltage X 1.75 VAC, 10 sec
• Withstanding Voltage Test (Between Terminals and Case): Rated Voltage X 2 + 1000 VAC, 60 sec
• Maximum Permissible Voltage: 110% of the rated voltage
• Maximum Permissible Current: 130% of the rated current
• Case Material: Metal
• Type: HVAC Capacitors
• Terminals: 1/4 quick connect terminal
