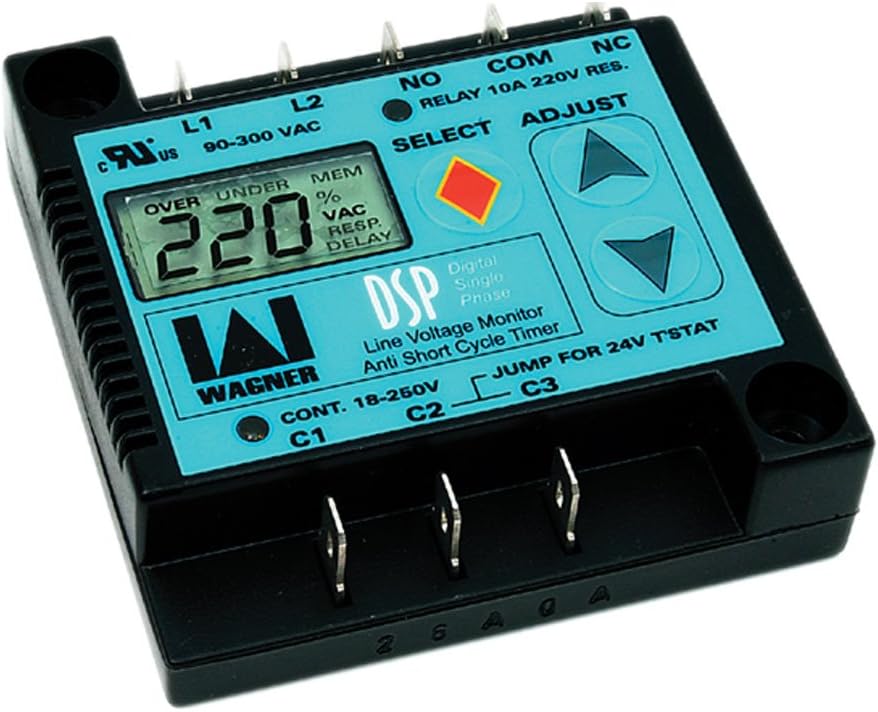

Diversitech DSP-1 Monitor, Dig, Single Ph.Mtr.Pro

Product Description

The Diversitech DSP-1 Monitor is a digital single-phase motor protector designed for automatic voltage monitoring. This unit measures incoming line voltage continuously, ensuring reliable protection for electrical systems. The DSP-1 effectively detects any voltage that falls outside user-defined tolerances. When limits exceed, the adjustable response timer activates, providing options for quick or delayed reactions based on your needs. The monitor ensures that if voltage persists outside acceptable levels, it will deactivate the output relay to safeguard your equipment.

• Automatic voltage monitoring prevents equipment damage
• Adjustable timers prevent rapid restart and nuisance tripping
• Ideal for industrial and commercial electrical systems

Product Highlights

The DSP-1 unit is ideal for HVAC systems and other applications where precise voltage control is critical.

Product Information

Standard Information

• Brand: Diversitech
• MPN: DSP-1

Technical Specifications

• Voltmeter Range: 70 to 325 Volts
• Voltage Set Point: 90 to 300 Volts
• Tolerance Limits: 6 to 18%
• Response Timer: 0.1 to 10 seconds
• Delay Timer: 1 to 720 seconds
• Output Relay: 10 Amps, 250 VAC resistive
• Control Input: 18 to 250 VAC
• Size: 5.25 inches x 4 inches x 1 inch
• Weight: 3.2 ounces
