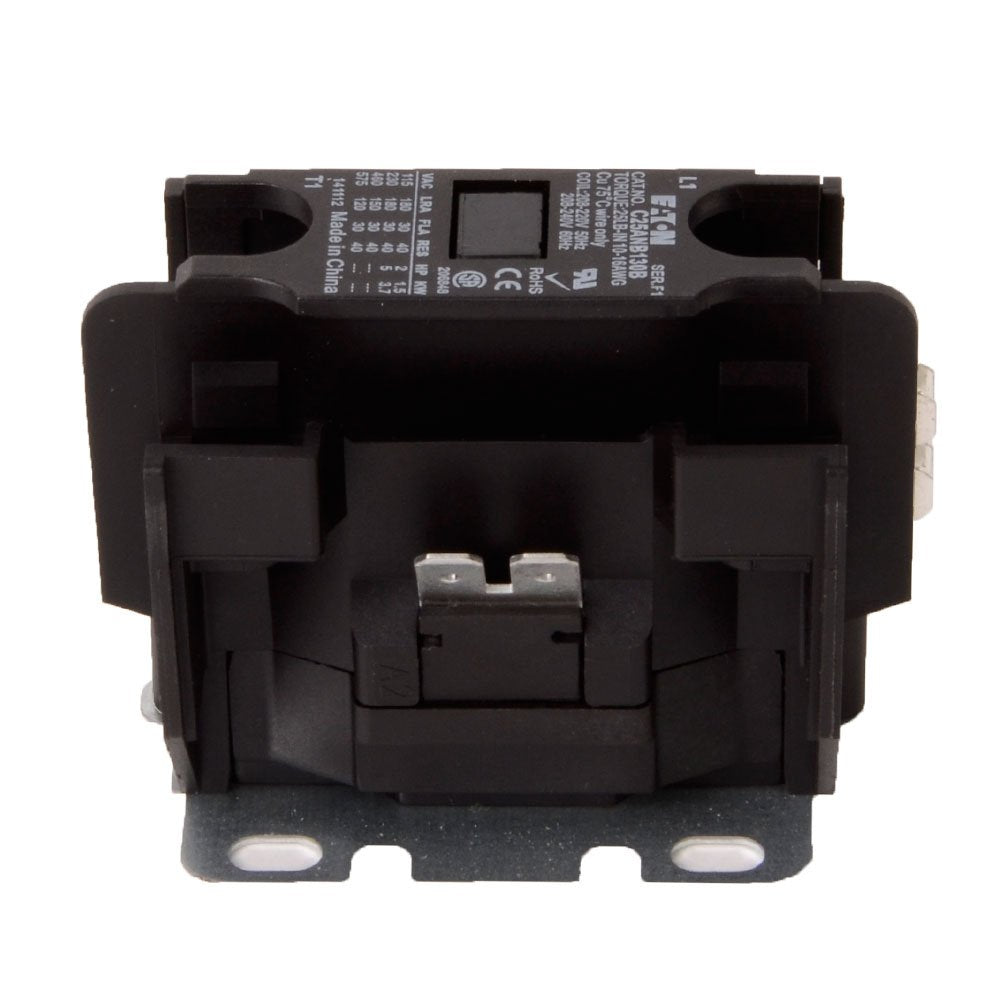

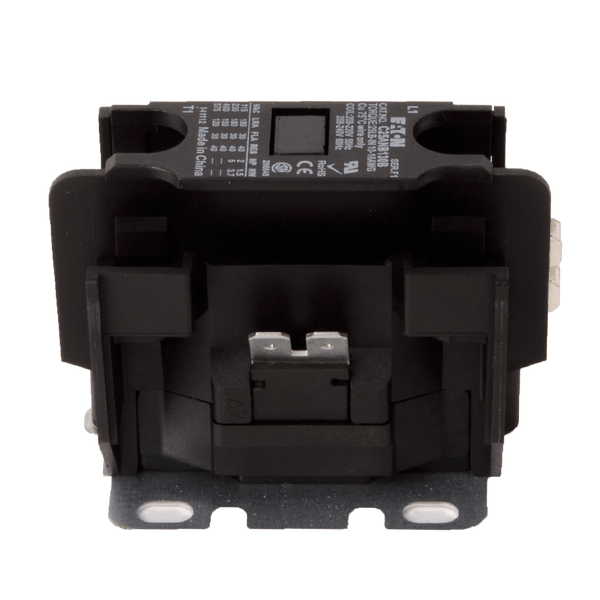

Diversitech DPE301240 DP contactor 30A (1P) 240V

Product Description

The Diversitech DPE301240 is a 30 A, single-pole (1P) definite purpose contactor rated for 240 V. It is intended for motor switching in HVAC and light industrial applications and features a compact housing, clear terminal markings, and high-quality contacts to minimize contact resistance and heat. The unit is UL recognized and CSA certified and includes a low VA coil with straight-through wiring for simplified installation.

• Rated current: 30 A and voltage: 240 V; single-pole (1P) configuration
• Low VA coil and straight-through wiring for simplified control and wiring
• Compact, dust-limiting housing with clear terminal markings and high-quality contacts

Product Highlights

30 A, 240 V single-pole definite purpose contactor for HVAC and light industrial motor switching; UL recognized and CSA certified.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: DPE301240
• Country of Origin: China

Technical Specifications

• Brand: Diversitech
• MPN: DPE301240
• Model: DPE301240
• Product Type: DP contactor (definite purpose contactor)
• Current Rating: 30 A
• Voltage Rating: 240 V
• Number of Poles: 1
• Coil: Low VA coil
• Wiring: Straight-through wiring
• Certifications: UL recognized; CSA certified
• Country of Origin: China
• Item Weight: 0.46 lb
• Dimensions (L x W x H): 3.5 in x 2.75 in x 2.25 in
• UPC: 786685115863
• Number of Items: 1
• Manufacturer: Diversitech
