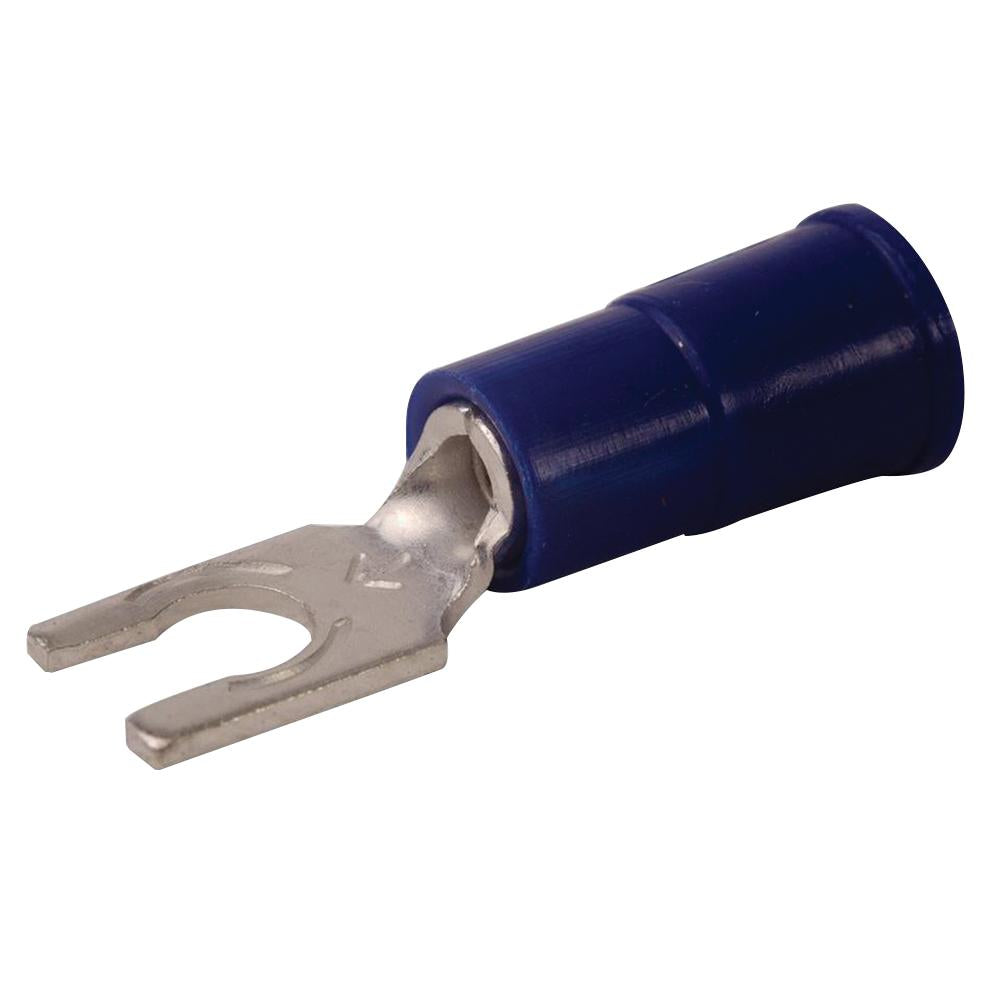

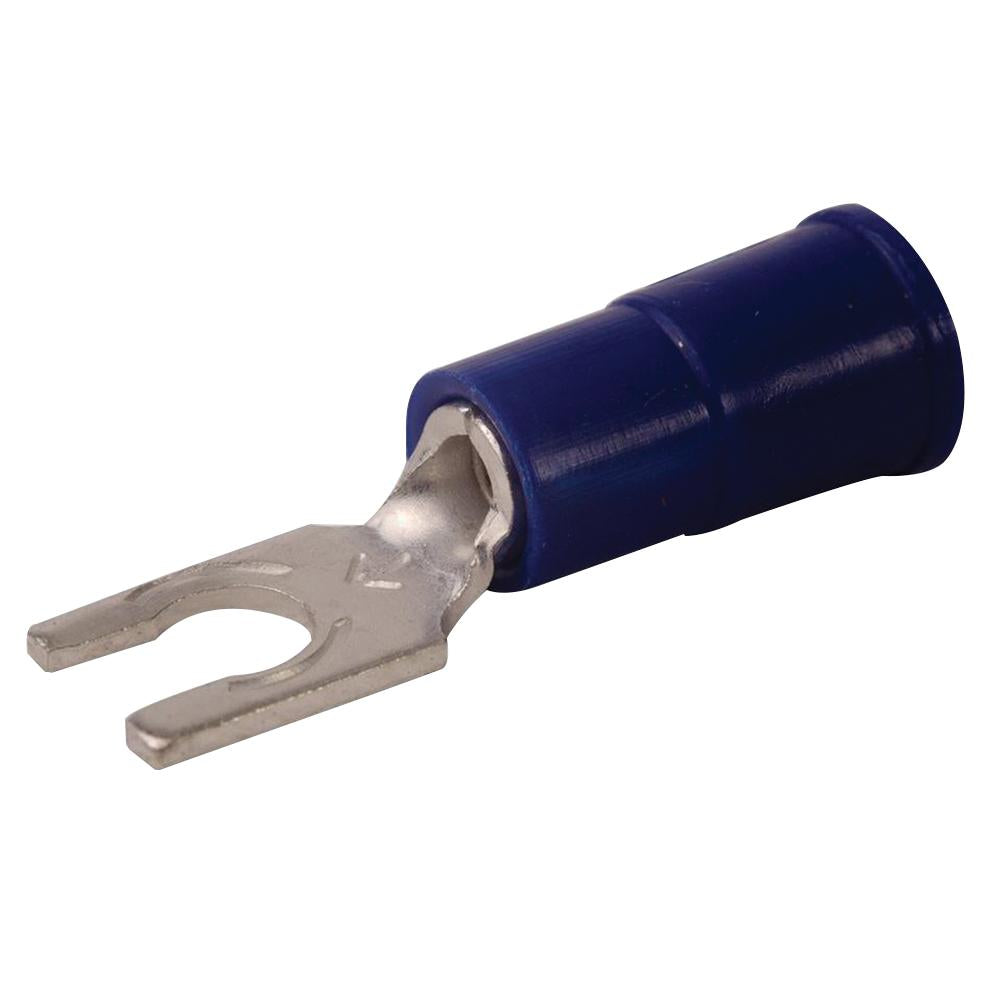

Diversitech DIVE-6276 Spring Spade Terminal 16-14 Awg

Product Description

The DIVERSITECH DIVE-6276 is a spring spade terminal designed for secure, reliable electrical connections in HVAC, refrigeration, and light commercial wiring applications. It accepts 16 to 14 AWG wire and fits a No. 6 stud, making it a standard choice for low-voltage control wiring and equipment grounding points. The spring-style design provides consistent contact pressure without requiring a crimp tool, allowing for fast field terminations. Electricians and HVAC technicians install this terminal wherever a quick-connect spade fitting is needed on small-gauge conductors.

This terminal is suited for residential and light commercial HVAC systems, control panels, and appliance wiring where 16 to 14 AWG conductors terminate at a No. 6 screw or stud. It is commonly used during equipment installation, service calls, or control board replacements where original terminals are damaged or missing. The spring-spade design is compatible with standard push-on or screw-secured terminal points found throughout HVAC equipment.

Key Features

• Accepts 16 to 14 AWG wire for versatile field use
• Fits No. 6 stud size for common HVAC and appliance terminals
• Spring-style spade design provides consistent contact pressure
• No crimp tool required for installation
• Suitable for low-voltage control wiring and equipment connections

Compatibility

Designed as an OEM-style replacement spade terminal for residential and light commercial HVAC control wiring applications using 16 to 14 AWG conductors on No. 6 stud connections.

Installation Notes

Installation is typically performed by a licensed electrician or HVAC technician. De-energize the equipment and verify zero voltage at the terminal point before making or breaking any connection. Ensure the wire gauge falls within the 16 to 14 AWG range before inserting into the terminal. Follow applicable NEC requirements for conductor terminations and equipment grounding.

Technical Specifications

• Wire Size: 16 to 14 AWG
• Stud Size: No. 6

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: DIVE-6276
