Diversitech DIVE-623-004 Wire Nut Connector 22-12 Awg 600V 100pk

Product Description

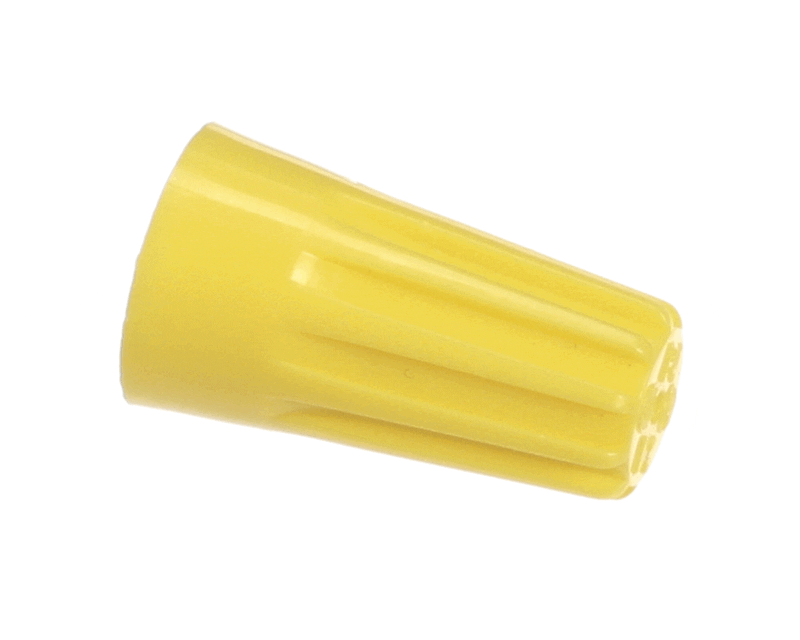

The DIVERSITECH DIVE-623-004 is a yellow wire nut connector rated for 22-12 AWG conductors and a maximum of 600 volts. Sold in packs of 100, these connectors are a standard installation supply for licensed HVAC technicians and electricians who need reliable twist-on wire connections across a wide range of gauge combinations. The yellow color code identifies the 22-12 AWG capacity range at a glance, reducing selection errors in the field. Each nut provides a secure, insulated termination point suitable for low-voltage control wiring as well as line-voltage circuits up to 600V.

These wire connectors are used in residential and light commercial HVAC installations, including control board wiring, transformer leads, and field wiring terminations. The 100-count pack suits service contractors who stock consumables in bulk and need a consistent, high-count supply for regular service calls and new equipment installations. They are also applicable in general electrical work where code-compliant wire termination is required.

Key Features

• Rated for 22-12 AWG wire gauge range, covering both control and line-voltage applications
• 600V maximum voltage rating for line-voltage circuit use
• Yellow color coding for quick, error-reducing gauge identification
• Pack of 100 units for bulk stocking and repeated service use
• Twist-on insulated design provides a secure, code-compliant termination

Compatibility

Compatible with models SFHFC50EH658A6BD8D11ABZ0000000N0T078600, SXHGD1240LJ8DG9D6001JLRT, and SXHGD13S0KF8CG9DS0S0ATVP. Generally suited as a replacement or service consumable for residential and light commercial HVAC wiring applications requiring 22-12 AWG twist-on connectors.

Installation Notes

Wire nut installation is performed by licensed electricians and HVAC technicians in accordance with NEC requirements for wire termination. Always de-energize and lock out the circuit before making or disturbing any wire connections. Strip conductors to the appropriate length per the connector manufacturer guidance, twist wires together before applying the nut, and confirm a secure mechanical hold with a light pull test after installation. Do not exceed the rated AWG range or voltage rating of the connector.

Technical Specifications

• Wire Gauge: 22-12 AWG
• Voltage Rating: 600V Max
• Color: Yellow
• Quantity: 100 per pack
• Package Length: 6.65 inches
• Package Width: 2.85 inches
• Package Height: 2.45 inches

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: DIVE-623-004
