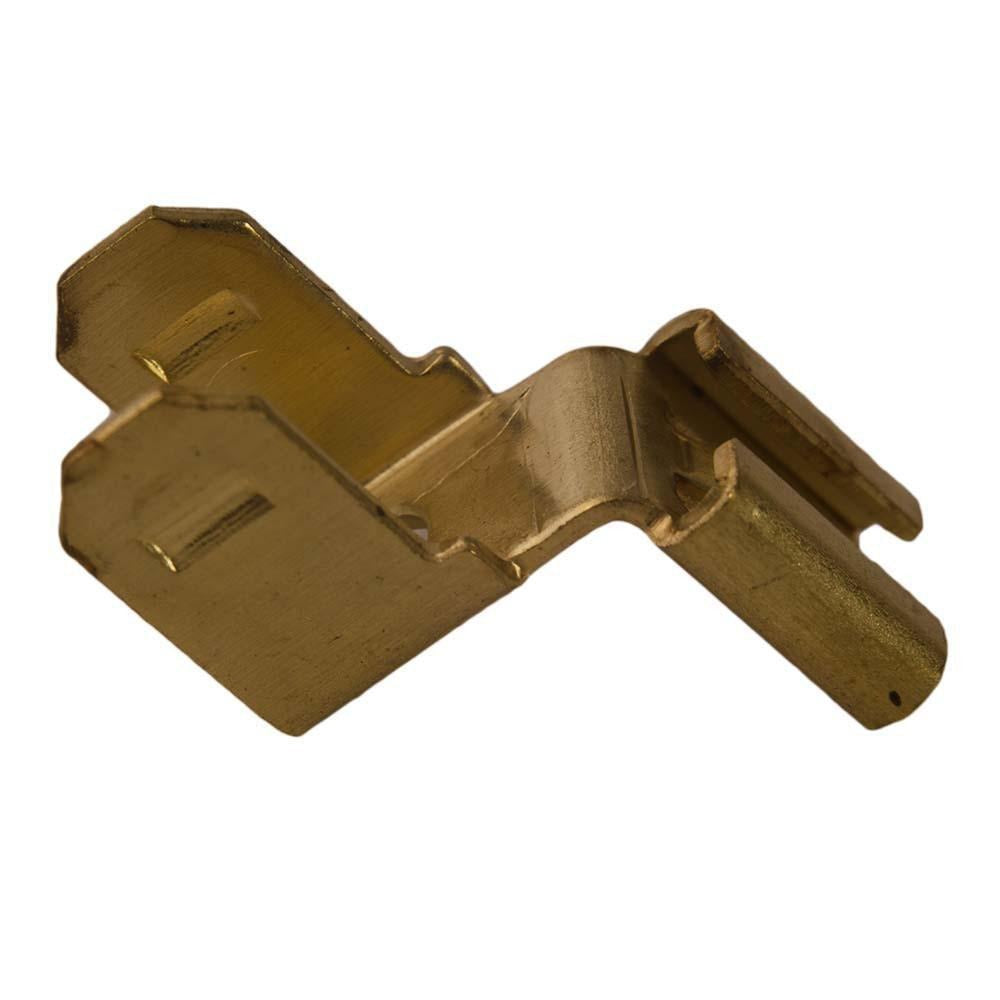

Diversitech DIVE-6208 Tab Adapter 90 Degree Brass Crimp

Product Description

The Diversitech DIVE-6208 is an insulated tab adapter designed for crimp-style electrical connections in HVAC and light electrical service applications. The adapter features a 90-degree bend configuration with one female and two male terminals at a 0.250-inch tab size. Crimping directly to wire conductors eliminates the need for soldering, saving time on service calls. Manufactured from high-strength brass, the DIVE-6208 delivers reliable conductivity and mechanical durability in tight wiring spaces. It measures 3 inches in width and 0.6 inches in height, making it well suited for panel or equipment enclosure wiring tasks performed by HVAC technicians and electricians.

This tab adapter is used in residential and light commercial HVAC equipment wiring applications where quick, solderless connections are required. The 90-degree bend allows routing conductors along panel walls or around obstructions without bending wire leads by hand. It is a common solution during control board replacements, motor wiring repairs, and component-level service where insulated crimp terminals at the standard 0.250-inch tab size are specified.

Key Features

• 90-degree bend orientation routes wiring in confined enclosures without hand-bending leads
• One female and two male terminal configuration on a single adapter body
• 0.250-inch standard tab size fits widely used quick-disconnect receptacles
• High-strength brass construction provides durable conductivity and corrosion resistance
• Insulated crimp design eliminates soldering and speeds up field repairs
• Made in the USA

Compatibility

Designed as a direct-fit replacement tab adapter for HVAC control wiring and electrical panel applications requiring a 0.250-inch insulated crimp terminal with a 90-degree bend and one female to two male configuration.

Installation Notes

Installation should be performed by a qualified HVAC technician or licensed electrician. De-energize all equipment and confirm zero voltage with a meter before handling wiring or terminals. Use an appropriate crimp tool rated for the terminal gauge to ensure a secure, gas-tight crimp connection. Do not solder over a crimped terminal, as this can introduce brittleness at the connection point.

Technical Specifications

• Product Type: Tab Adapter
• Tab Size: 0.250 inches
• Terminal Configuration: 1 Female, 2 Male
• Bend Angle: 90 degrees
• Material: Brass
• Color Finish: Silver
• Width: 3 inches
• Height: 0.6 inches
• Country of Origin: USA
• UPC: 780653014752

Standard Information

• Brand: Diversitech
• Manufacturer Part Number: DIVE-6208
