Diversitech DIVE-6200HX Terminal Kit Compressor Connector

Product Description

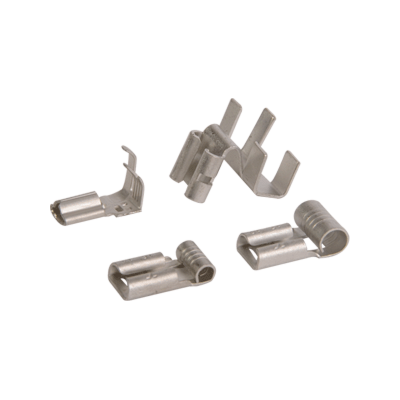

The DIVERSITECH DIVE-6200HX is a terminal kit designed for flag-style female compressor connections in HVAC refrigeration systems. The kit includes four components and accommodates 8 to 18 AWG wire, making it suitable for a range of compressor terminal wiring applications. It provides a secure, insulated connection at the compressor terminal block, reducing the risk of arcing or loose contacts that can lead to compressor failure. HVAC technicians use this kit during compressor replacements or terminal rebuilds where the original connector has burned or corroded.

This terminal kit is used in residential and light commercial air conditioning and refrigeration equipment. It is most commonly installed during compressor service calls when technicians find damaged or degraded flag connectors at the compressor terminal block. The flag female orientation allows for a clean, low-profile connection in tight compressor compartments where straight connectors are difficult to seat properly.

Key Features

• Four-component kit covers all three compressor terminals with a spare
• Flag female design for low-profile compressor terminal connections
• Compatible with 8 to 18 AWG wire sizes for wiring flexibility
• Insulated connector body helps protect against arcing at the terminal block
• Suitable for replacement use when original connectors are burned or corroded

Compatibility

Designed as an OEM-style replacement terminal kit for residential and light commercial HVAC compressor terminal block connections requiring flag-style female connectors.

Installation Notes

Installation should be performed by a licensed HVAC technician. Always disconnect and lock out power to the unit before servicing compressor terminals. Ensure wire ends are cleanly stripped and crimped securely before seating the flag connectors onto the compressor terminal block. Follow applicable local electrical codes and the equipment manufacturer's wiring guidelines during service.

Technical Specifications

• Kit Components: 4
• Connector Type: Flag Female
• Wire Range: 8 to 18 AWG
• Application: Compressor Terminal Connection

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: DIVE-6200HX
