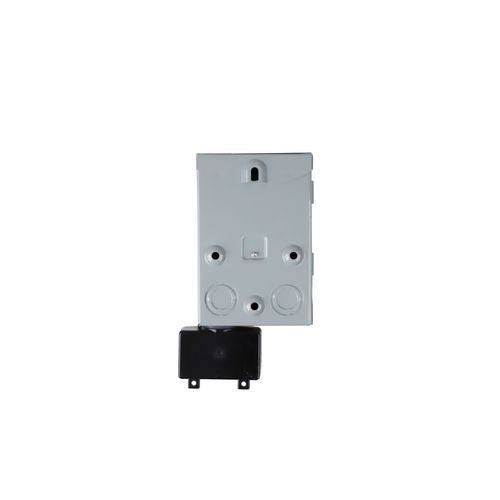

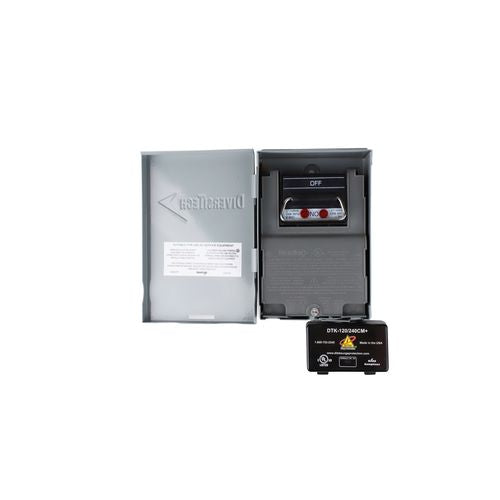

DIVERSITECH DDS-30-SURGE Fusible Disconnect Switch 30A

Product Description

The Diversitech DDS-30-SURGE Fusible Disconnect Switch is designed for reliable operation with a current rating of 30 Amps. The unit features replaceable fuses housed in a convenient pull-out handle. Wiring is simplified with clearly aligned line, load, and ground terminals to facilitate installation. The switch includes a dead front for safety and a reversible door for easy access.

• Weatherproof design protects against rain and sleet.
• Enhances safety by cutting power to HVAC units, air conditioners, heat pumps, spas, or hot tubs.
• Quick fuse replacement process with an integrated pull-out handle.

Product Highlights

This 30A fusible disconnect switch is ideal for outdoor applications, ensuring safety and durability.

Product Information

Standard Information

• Type: Disconnect
• Product Category: Electrical Accessories

Technical Specifications

• Voltage: 240 Volts
• Phase: 1
• Frequency: 60 Hz
• Height: 7.5 inches
• Width: 5 inches
• Depth: 2.5 inches
• UL Listed: Yes
• Power Supply: Single Phase
• Application: HVAC/R
• cUL Listed: Yes
• Amps: 30
• Disconnect Mechanism: Pull-Out Handle
• Fused / Non-Fused: Fusible
• NEMA Rating: 3R (Rain & Sleet Resistant)
• No. of Fuses: 2
• Top or Side Open: Side
• Max Volts (V): 240
