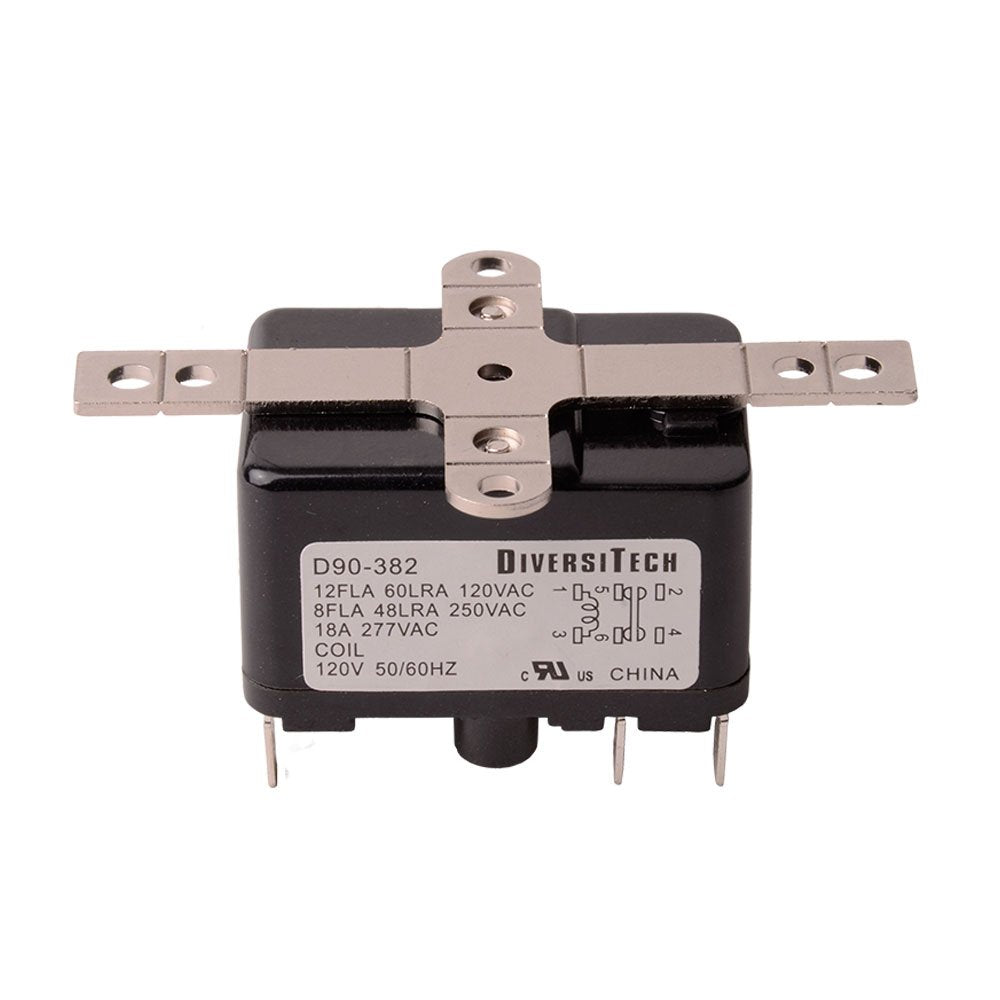

Diversitech D90-382 GP Relay 18A-120V

Product Description

The Diversitech D90-382 GP Relay is a single pole, single throw relay with both normally open and normally closed contacts. Rated at 18A-120V, this relay is suitable for heating, accessories, and replacement household furnace electronic relays. It is designed with quick connect terminals and universal mounting with break-away tabs. Manufactured in China.

• SPST-NO+NC configuration for versatile switching options
• Features quick connect terminals with universal mounting with break-away tabs
• Used for switching solenoids, fan motors and general purpose switching

Product Highlights

This general purpose relay is ideal for controlling smaller loads and those requiring high current-carrying capacity.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: D90-382
• Country of Origin: china

Technical Specifications

• Amperage Rating: 18 A
• Coil Voltage: 120 V AC
• Contact Form: NO-NC 1 Form A/1 Form B SPST
• Contact Rating: 14 FLA/84 LRA at 125 V, 8 FLA/48 LRA at 250 V
• Frequency Rating: 50/60 Hz
• Mounting Type: Surface
• Terminal Type: Quick-Connect
• Type: General Purpose
