Product Description

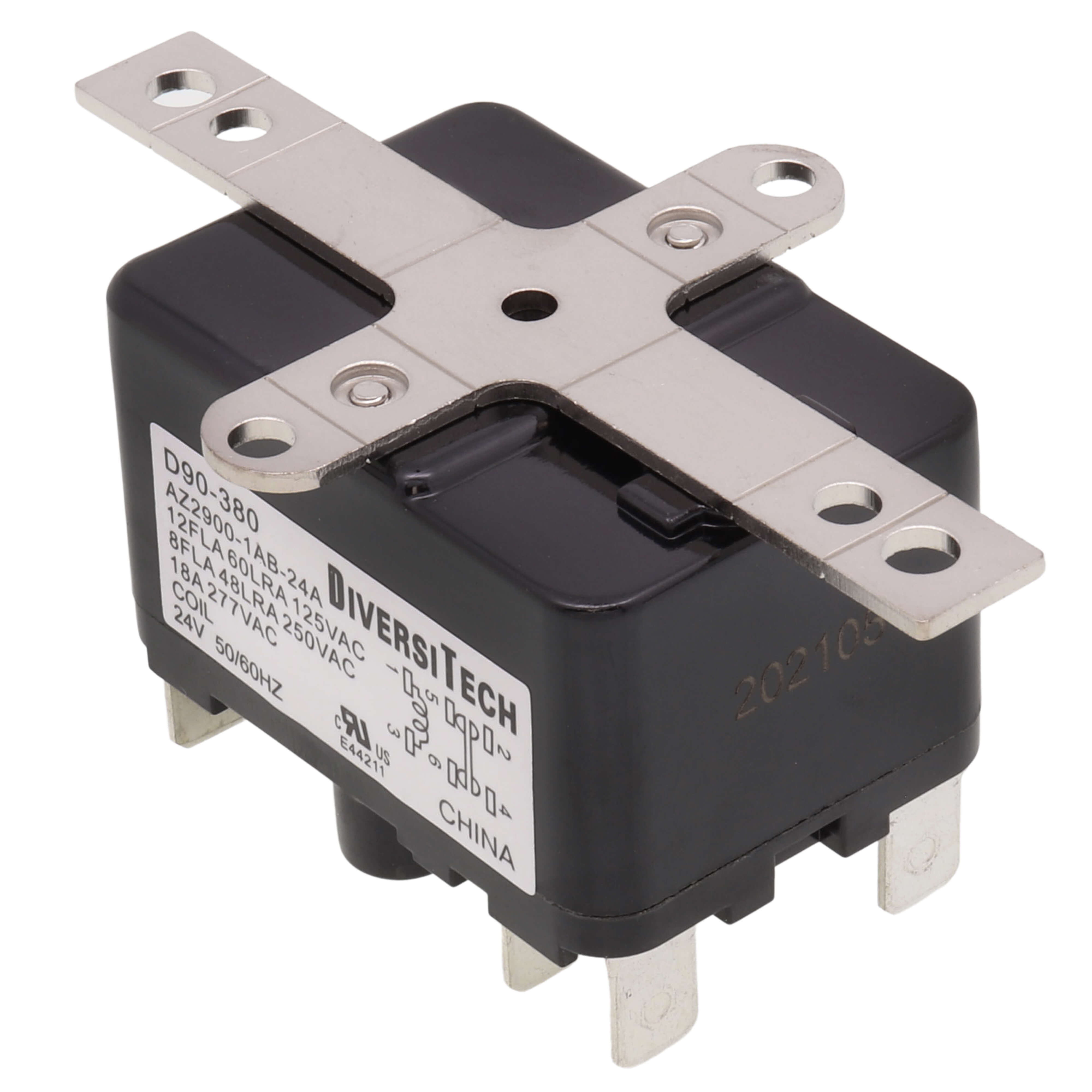

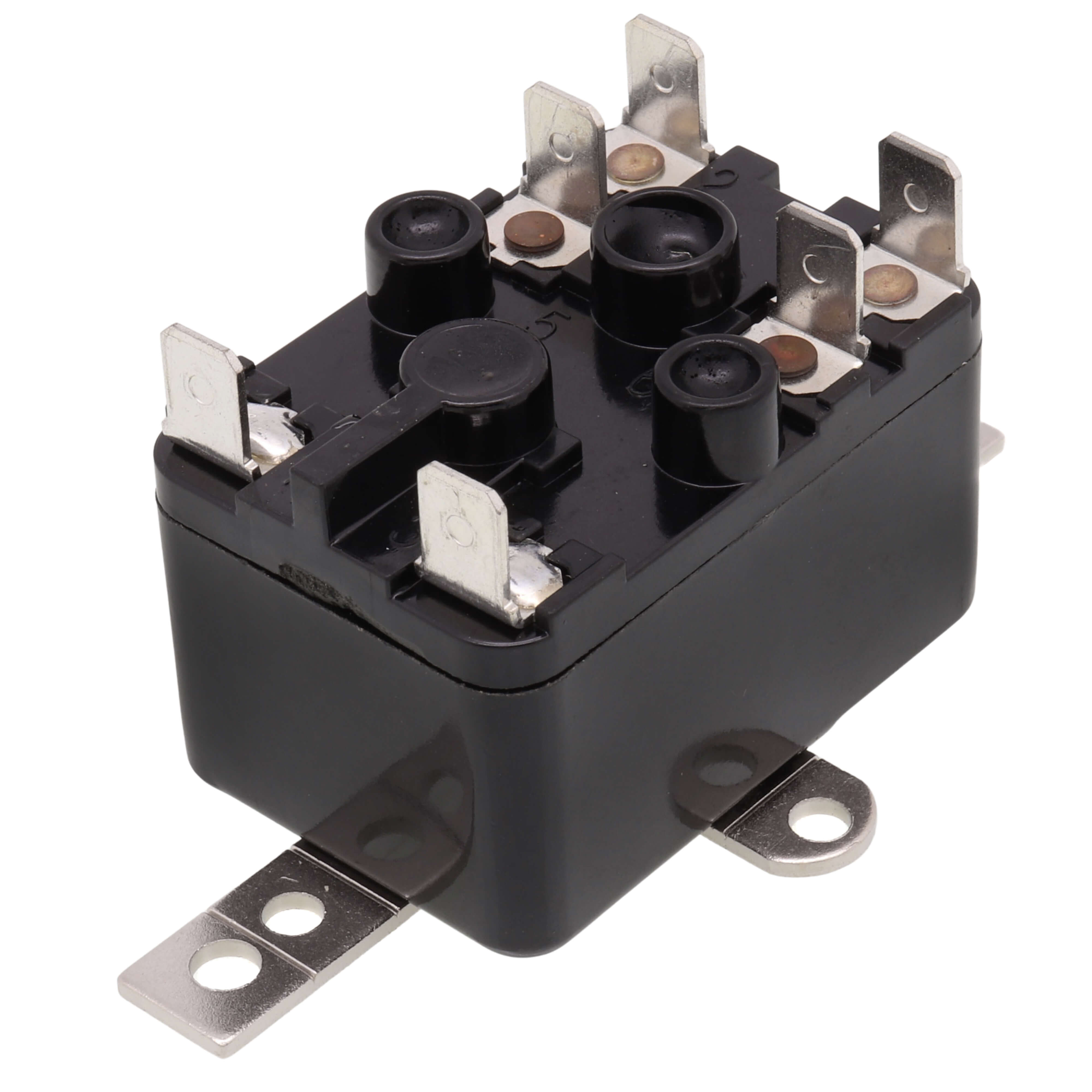

The DiversiTech D90-380 is a general-purpose relay designed for various electrical applications. It operates at 24 volts and offers a switching capacity of 14 amp at 125 volts AC and 8 amp at 277 volts AC. The relay features quick-connect terminals for easy installation and can be universally mounted.
- Switching Capacity: 14A at 125VAC
- Contact Configuration: DPST (NO Plus NC)
- Universal mounting with break-away tabs
Product Highlights
This relay ensures reliable control in HVAC and industrial automation systems.
Product Information
Standard Information
-
Brand: DiversiTech
-
MPN: D90-380
Technical Specifications
-
Amperage Rating: 14A at 125VAC, 8A at 277VAC
-
Contact Configuration: DPST (NO Plus NC)
-
Voltage Rating: 24VAC
-
Frequency Rating: 50/60Hz
-
Dimensions: 2 inches W x 1.75 inches H x 3 inches D
-
Series: 9400
-
Standards/Certifications: cRUus, UL listed
